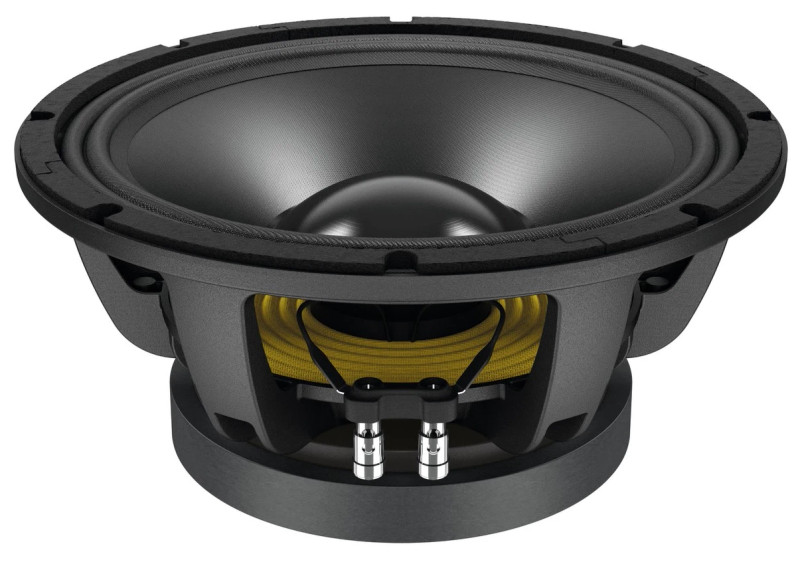

Lavoce WAF123.02 12" Woofer Ferrite Magnet Aluminium Basket Speaker 1000 Watts
Features
- 3 INCH CCAW VOICE COIL
- 99 dB/SPL SENSITIVITY
- 1000 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- ALUMINIUM DEMODULATING RING
GENERAL SPECIFICATIONS
- Nominal diameter mm (in.) 300 (12)
- Nominal impedance Ω 8
- Minimum impedance Ω 6
- Program power (1) W 1000
- AES Power rating (2) W 500
- Sensitivity (3) dB 99
- Frequency range Hz 45 ÷ 3000
- Voice coil diameter mm (in.) 75 (3)
- Chassis material Aluminium
- Magnet material Ferrite
- Magnet dimensionsOD x ID x hmm(in.)
- 200 x 95 x 25 (7.87 x 3.74 x 0.98)
- Coil material CCAW
- Former material Glass Fiber
- Cone material Water Resistant Treated Paper +
- Water Proof Front Side Treatment
- Surround material Polycotton
- Xmax (4) mm (in.) 4,4 (0.17)
- Xmech (5) mm (in.) 9,9 (0.39)
- Gap height mm (in.) 10 (0.39)
- Voice coil winding height mm (in.) 13,8 (0.54)
- Driver displacement volume l (ft3) 2,8 (0.1)
- Recommended enclosure l (ft3) 72,9 (2.87)
- Recommended tuning Hz 60
SMALL SIGNAL PARAMETERS
- DC resistance Re Ohm 5,2
- Resonance frequency Fs Hz 47
- Moving mass Mms g (oz) 56,5 (1.99)
- Compliance Cms mm/N 0,202
- Force factor BxL N/A 18,25
- Mechanical Q-factor Qms 5,29
- Electrical Q-factor Qes 0,26
- Total Q-factor Qts 0,25
- Equivalent air volume Vas l (ft3) 80,41 (2.84)
- Voice coil Inductance Le mH 0,48
- Diaphragm area Sd cm2(in.2) 531 (82.3)
- Reference efficiency Eta 0 % 3,12
- Efficiency bandwidth product EBP Hz 181
SHIPPING INFORMATION
- Net weight kg (lb.) 9 (19.8)
- Multipack size (1)W x D x Hmm(in.)
365 x 365 x 195(14.4 x 14.4 x 7.7) - Multipack weight kg (lb.) 10,6 (23.4)
