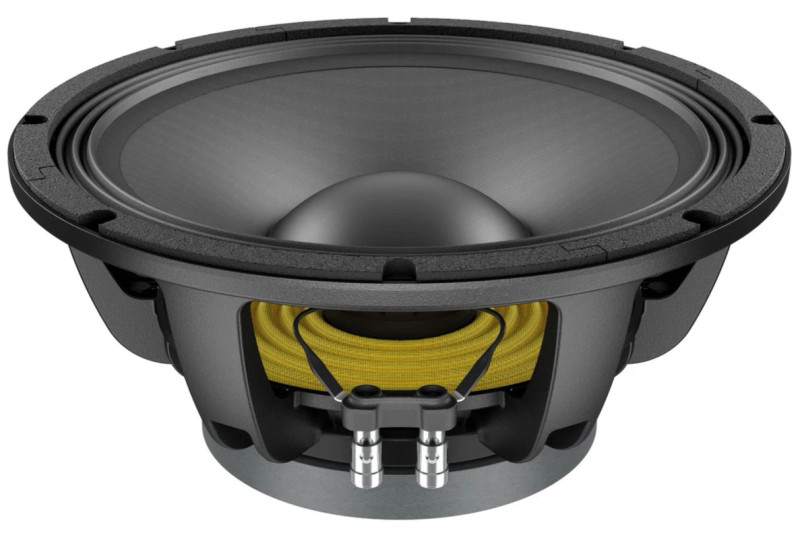

LaVoce WAF122.50 12" Woofer Ferrite Magnet Aluminum Basket Speaker 700 Watts
Features
- 2.5 INCH CCAW VOICECOIL
- 97 dB/SPL SENSITIVITY
- 700 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED FERRITE MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
GENERAL SPECIFICATIONS
- Nominal diameter mm (in.) 300 (12)
- Nominal impedance Ω 8
- Minimum impedance Ω 6,8
- Program power (1) W 700
- AES Power rating (2) W 350
- Sensitivity (3) dB 97
- Frequency range Hz 60 ÷ 3000
- Voice coil diameter mm (in.) 65 (2.5)
- Chassis material Aluminium
- Magnet material Ferrite
- Magnet dimensions OD x ID x hmm(in.) 170 x 75 x 20
(6.69 x 2.95 x 0.79) - Coil material CCAW
- Former material Glass fiber
- Cone material Water Proof Treated Paper
- Surround material Polycotton
- Xmax (4) mm (in.) 6 (0.24)
- Xmech (5) mm (in.) 11,5 (0.45)
- Gap height mm (in.) 10 (0.39)
- Voice coil winding height mm (in.) 17 (0.67)
SMALL SIGNAL PARAMETERS
- DC resistance Re Ohm 5,9
- Resonance frequency Fs Hz 55
- Moving mass Mms g (oz) 63 (2.22)
- Compliance Cms mm/N 0,12
- Force factor BxL N/A 18
- Mechanical Q-factor Qms 7,9
- Electrical Q-factor Qes 0,4
- Total Q-factor Qts 0,38
- Equivalent air volume Vas l (ft3) 55 (1.94)
- Voice coil Inductance Le mH 0,9
- Diaphragm area Sd cm2(in.2) 555,7 (86.13)
- Reference efficiency Eta 0 % 2,3
SHIPPING INFORMATION
- Net weight Kg (lb.) 6,3 (13.9)
- Multipack size (2)W x D x Hmm x mm x mm
( in. x in. x in.)350 x 343 x 360(13.8 x 13.5 x 14.2) - Multipack weight Kg (lb.) 13,5 (29.8)
