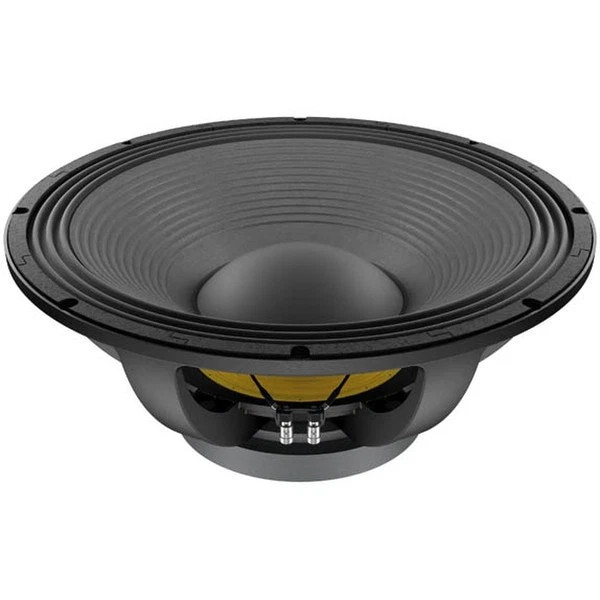

LaVoce SAF214.50 21" Subwoofer Ferrite Magnet Aluminium Basket 4000 Watts
Product Specifications
- Nominal Diameter 21"
- Power Handling (RMS) 2000 Watts
- Power Handling (MAX) 4000 Watts
- Impedance 8Ω
- Frequency Response 30 to 1,000Hz
- Sensitivity 95.5dB 2.83V/1m
- Voice Coil Diameter 4.5"
Thiele-Small Parameters
- Resonant Frequency (Fs) 33Hz
- DC Resistance (Re) 5.7Ω
- Voice Coil Inductance (Le) 2.87mH
- Mechanical Q (Qms) 8.02
- Electromagnetic Q (Qes) 0.52
- Total Q (Qts) 0.49
- Compliance Equivalent Volume (Vas) 8.53ft³
- BL Product (BL) 29.2T·m
- Maximum Linear Excursion (Xmax) 12mm
- Surface Area of Cone (Sd) 1662cm²
Materials of Construction
- Cone Material Treated Paper
- Surround Material Cloth
- Voice Coil Wire Material Copper
- Voice Coil Former Fiberglass
- Basket / Frame Material Cast Aluminum
- Magnet Material Ferrite
Mounting Information
- Overall Outside Diameter 21.54"
- Baffle Cutout Diameter 19.97"
- Depth 9.83"
- Mounting Holes 8
UPC
- 848864072791
