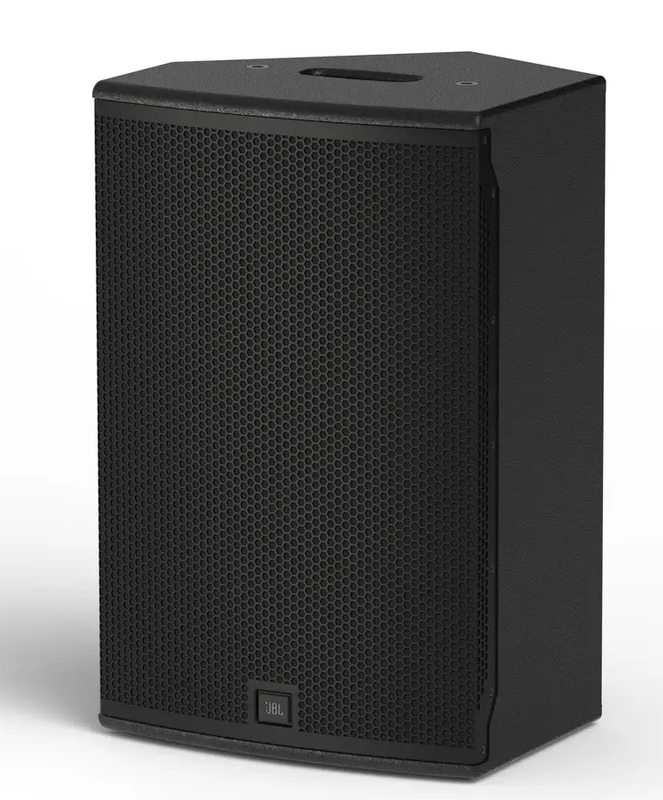

JBL SRX912M 12” Professional Powered Multi-Purpose PA Speaker Stage Monitor

JBL SRX912M 12” Professional Powered Multi-Purpose PA Speaker Stage Monitor

The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package.

Multiple M10 QuickLink™ suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.

JBL transducers and proprietary Progressive Transition™ waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

Features

• Includes single 12-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
• 272F woofer employs JBL’s patented Differential Drive® technology
• Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
• 90° × 60° Progressive Transition™ waveguide ensures smooth, predictable coverage
• LF extension reaches down to 50 Hz
• 80 Hz high-pass preset available for applications using SRX900 subwoofers
• 42-degree monitor angle for use as a high-performance, full-range stage monitor
• Voicing and phase response optimized to match SRX900 line-source products
• Integrated amplification delivers plug-and-play operation
• Rear LCD enables fast configuration
• DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
• Six M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
• Constructed from outdoor-grade Baltic birch plywood for excellent durability

HIGHLIGHTS

BEST-IN-CLASS PERFORMANCE
Highly efficient system architecture delivers impressive output and clarity from a compact footprint.

PURPOSEFUL DESIGN
A multi-purpose enclosure supports common use cases, including use as a main PA, stage monitor, or front fill.

POWERED SOLUTION
Onboard Class-D amplification and DSP ensure optimized performance and consistent sound anywhere in the world.

COMPLETE SYSTEM
SRX900 offers a fully integrated ecosystem of speakers, accessories, and software for seamless system design and deployment.

KEY MESSAGES

ACOUSTIC DESIGN
The SRX912M is a two-way powered loudspeaker featuring a single 12-inch low-frequency driver and a neodymium 1.5 inch annular-diaphragm compression driver. The 272F woofer employs JBL’s patented Differential Drive® technology, using dual 2-inch voice coils and a ferrite magnet to provide an ideal balance of output, weight, and thermal performance. A 90° × 60° Progressive Transition™ waveguide ensures smooth, predictable coverage and excellent gain before feedback. LF extension reaches down to 50 Hz, while an 80 Hz high-pass preset is available for applications using SRX900 subwoofers. Voicing and phase response have been optimized to match SRX900 line-source products, enabling effortless system integration.

POWERED SOLUTION
Integrated amplification delivers plug-and-play operation, while the rear LCD enables fast configuration. The DSP offers 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools

VERSATILE AND CONFIGURABLE
The SRX912M offers exceptional versatility when paired with its comprehensive set of dedicated accessories. Six M10 QuickLink™ attachment points are provided for suspension using standard M10 eye bolts. Dedicated vertical and horizontal U-Brackets support a wide range of fixed-installation and portable mounting configurations. Truss mounting is supported through standard offthe-shelf clamps or the RC100 rotating clamp, which provides full 360-degree horizontal rotation. Both U-Brackets are compatible with a 50 mm Pole Mount adapter, enabling additional vertical angle flexibility in pole-mounted applications. For outdoor use, the SRX900 RC2 rain cover provides protection against moisture while maintaining access to essential controls and connections

PRO BUILD QUALITY, INSIDE AND OUT
The SRX912M is constructed from outdoor-grade Baltic birch plywood, providing excellent durability and a clean, modern, professional appearance suitable for any application.

Specifications

TECHNICAL SPECIFICATIONS

ACOUSTICAL

• Frequency Range1
  (-10 dB) :50 Hz-20 kHz
  (-3 dB) :60 Hz-19 kHz
• Coverage Pattern (-6 dB)
• Horizontal :90 degrees nominal
• Vertical :60 degrees nominal
• Rotatable :No
• Maximum Peak Output2 : 133 dB SPL
• System Type : Multi-purpose point-source, two-way powered

TRANSDUCERS

• Low Frequency : (1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive®
• High Frequency : (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil

AUDIO INPUT

• Input Type : Balanced line level
• Connectors : (2) Neutrik XLR (IN/OUT)
• Nominal Input Sensitivity3 : +1 dBu
• Maximum Input Level : +21 dBu
• Input Impedance : 100 kΩ

AMPLIFIER

• Type : Class-D
• Number of Channels : (2)
• Continuous Power4: 600 Watts LF: 400 Watts | HF: 200 Watts
• Peak Power5 : 880 Watts LF: 580 Watts | HF: 300 Watts
• Cooling Type : Convection, external aluminum heat sink, internal on-demand fan

DSP

• Sample Rate : 48 kHz
• Bit Depth : 24 bit
• System Latency
• Main PA :7.1 ms
• Monitor :2.9 ms



USER INTERFACE

• Type : LCD, encoder, Back button, (4) LED Indicators (3 single, 1 bi-color)

NETWORKING

• Type : TCP/IP
• Protocol : Harman HControl
• Speed : Dual 100 Mbps ports
• Connectors : (2) Neutrik etherCON®

AC POWER

• Voltage Range
• Nominal :100-240 VAC, 50/60 Hz
• Limits :80-260 VAC, 50/60 Hz
• Connectors : Dual (IN/OUT) Neutrik powerCON TRUE1®

URRENT DRAW

• 100 V 120 V 208 V 240 V
• Standby : 0.2 A 0.1 A 0.1 A 0.1 A
• Idle : 0.3 A 0.3 A 0.2 A 0.2 A
• Continuous6 : 1.7 A 1.4 A 0.9 A 0.8 A
• Maximum Instantaneous Peak7 : 6.9 A 7.0 A 3.9 A 3.5 A
• Peak Inrush8 : 1.8 A 2.1 A 3.7 A 4.4 A

PHYSICAL

• Enclosure : Exterior grade birch plywood, DuraFlexTM finish, one integral handhold
• Color : Black | RAL9005
• Monitor Angle : 42 degrees
• Environmental Specifications : IP549 | IEC 60529, ASTM B11710,  ASTM G15510
• Suspension : (6) JBL QuickLinkTM M10 points
• Grille : Powder coated 1.5 mm (16 gauge) hex perforated steel with acoustically transparent black cloth backing
• Dimensions (H x W x D) : 585 mm x 380 mm x 341 mm 23.0 in x 15.0 in x 13.4 in
• Net Weight :20.6 kg (45 lbs)
• Shipping Weight :26.1 kg (58 lbs)



ORDERING INFORMATION

• SKU : JBL-P3362MX | SRX912M for Global
• Included : (1) SRX912M | (1) Neutrik NAC3F-TRUE1-S | (1) Neutrik NAC3M-TRUE1-S

Footnotes:

1: Measured under full-space conditions. Preset: Main PA, Full-range
2: Peak SPL, unweighted, measured under full-space conditions at 1 meter using broadband pink noise with a 12 dB crest factor and specified preset. Preset: Main PA, Full-range
3: System shows 1–3 dB of limiting with a 12 dB crest-factor pink-noise input; the rear-panel ‘LIMIT’ LED flashes intermittently. Input sensitivity may be adjusted using the DSP gain control.
4: Bench power: ≥1 sec, 1 kHz, 120 VAC, no DSP, all channels driven.
5: Burst power: ≥20 ms, 1 kHz, 120 VAC, no DSP, all channels driven.
6: System test using IEC shaped pink noise with 9 dB crest factor. System at maximum output without clipping or limiting. Ambient temperature: 20° C. Duration: 5 sec.
7: Two-tone, all channels driven, IMD test at maximum power for a duration of 200 ms.
8: Measured RMS inrush current for a 50 ms window.
9: When used with the SRX900 RC2 rain cover (JBL-P3509) and with the front face at a down-angle of –10° or greater. Suspension components are fully weather-rated for indoor or covered outdoor conditions where humidity
is nominally below 50% and not in proximity to corrosive materials. System is not IP-rated when used in the monitor position.
10: For information regarding pass criteria, test conditions, and test duration, contact JBL Professional.

UPC

• 691991039843
