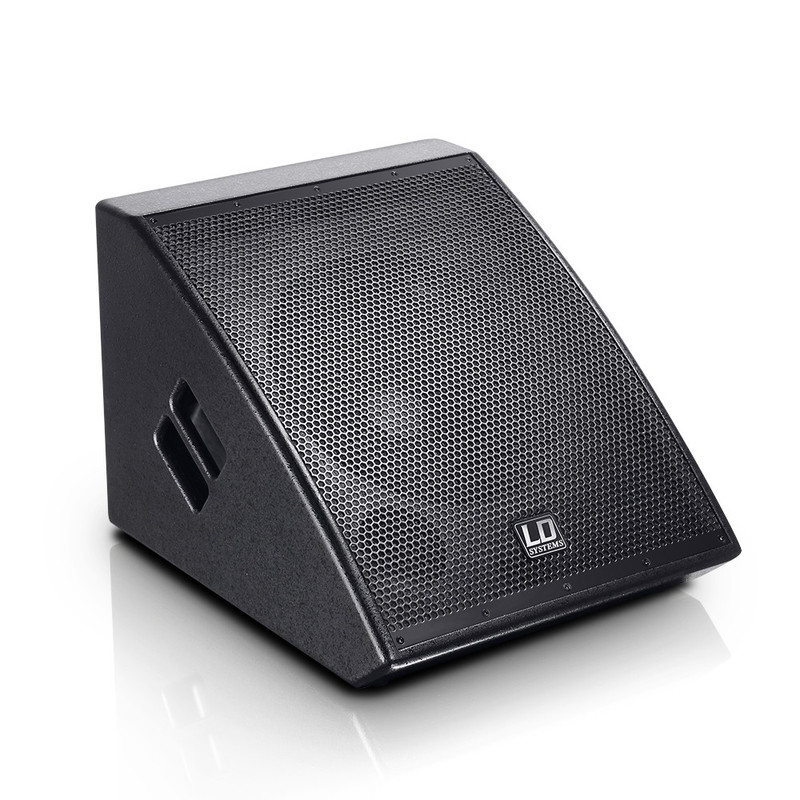

LD Systems MON 121 A G2 12 Inch Active Stage Monitor Powered PA Speaker
The LD Stinger MON121AG2 is a compact active stage monitor for all mobile applications.
The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz.
Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting.
The input is a XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include a volume control, IEC power socket, LED indicators of various colours for power, signal, and the limiter function.
The elegant looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35°.
Features
- Product number: LDMON121AG2
- Product type: PA loudspeaker
- Type: Actives
- Low/mid driver dimensions: 12"
- Woofer size: 304mm
- Woofer type: coaxial loudspeaker
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2"
- Woofer voice coil (mm): 50.8mm
- HF driver dimensions: 1"
- HF driver dimensions (mm): 25.4mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- HF driver voice coil: 1"
- HF driver voice coil (mm): 25.4mm
- Amplifier: Class A/B
- Dispersion (H x V): 75 x 75°
- RMS: 250W
- Peak power: 1000W
- Frequency response: 80 - 20000Hz
- Crossover frequency: 2200Hz
- SPL (1W/1m): 100dB
- Max. SPL (continuous): 116dB
- Max. SPL (peak): 124dB
- Protection circuits: limiter, short circuit
- Controls: volume, On / Off
- Indicators: Limit, Signal, Power
- Line Inputs: 1
- Line input connectors: XLR, 6.3 mm jack
- Line Outputs: 1
- Line output connectors: XLR
- Operating voltage: transformer, 230 V AC / 50-60 Hz
- Cabinet material: 15 mm Plywood
- Cabinet construction: vented
- Monitor angle: 35°
- Width: 440mm
- Depth: 360mm
- Height: 514mm
- Weight: 17.8kg
- Features: ergonomically shaped insert handles
UPC
- 4049521159398
