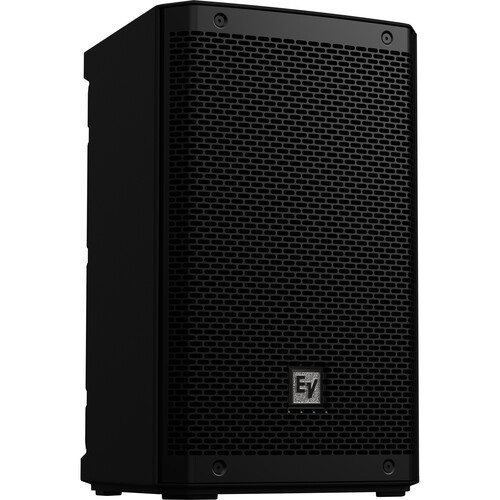

Electro-Voice ZLX-8-G2 8" Passive PA Speaker 2-Way 1000W Live Sound Pro

Electro-Voice ZLX-8-G2 8" Passive PA Speaker 2-Way 1000W Live Sound Pro

The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.

The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.

ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.

ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 23-degree monitor angle.

ZLX-8-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.

For optimal acoustics and performance, ZLX-8-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for
SONICUE.

ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.

Features:

• ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
• Increased maximum SPL output and extended frequency response
• Robust and ergonomic design for day-to-day durability and portability
• Recommended to use with Dynacord DSP power amplifiers
• SONICUE integration - optimized speaker settings for best performance

Technical specifications

• Frequency response (-3 dB) (Hz) 1 67 Hz – 20,000 Hz
• Frequency range (-10 dB) (Hz) 1 55 Hz – 20,000 Hz
• Axial sensitivity (dB SPL 1W/1m) 90 dB SPL 1W/1m
• Maximum sound pressure level at a distance of 1 m (dB) 1 124 dB
• High pass frequency (Hz) 60 Hz
• Crossover frequency (kHz) 2 kHz
• Coverage angle HxV (°) 90° x 60°
• Power handling (continuous) (W) 250 W
• Power handling (peak) (W) 1,000 W
• Nominal impedance (Ω) 8 Ω
• LF transducer WECA2088
• LF transducer size (in) 8 in
• LF transducer magnet material Ferrite
• HF transducer DH-1K
• HF transducer type Compression driver
• HF transducer size (in) 1.40 in
• HF transducer diaphragm material Titanium
• Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm
• Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in
• Shipping dimensions (H x W x D) (mm) 500 mm x 390 mm x 350 mm
• Shipping dimensions (H x W x D) (in) 19.69 in x 15.35 in x 13.78 in
• Weight (kg) 10.15 kg
• Weight (lb) 22.38 lb
• Shipping weight (kg) 11.92 kg
• Shipping weight (lb) 26.28 lb

Ordering information

• ZLX-8-G2 8" 2-way passive speaker Passive 8-inch 2-way loudspeaker, black Order number ZLX-8-G2 | F.01U.385.530

UPC

• 800549973816
