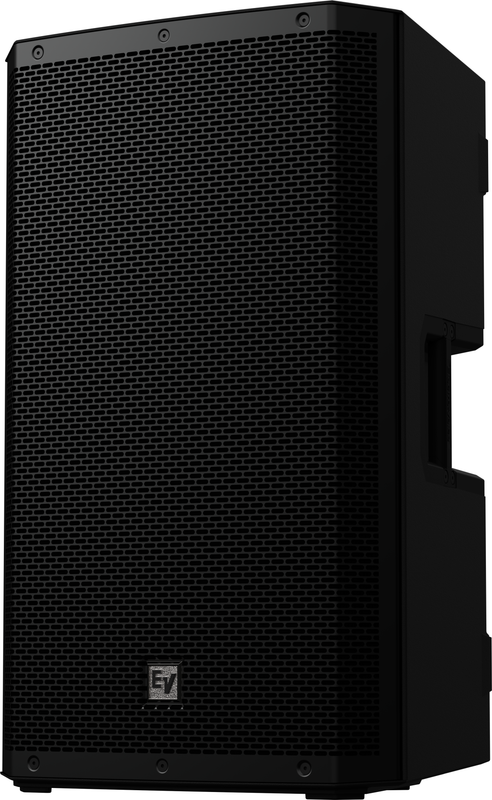

Electro Voice ZLX 15 G2 15 Inch Passive Speaker for DJ and Live Sound Use

Electro-Voice ZLX-15 G2 15" Passive Loudspeaker Pro Audio PA Speaker High Output

• ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
• Increased maximum SPL output and extended frequency response

• Robust and ergonomic design for day-to-day durability and portability

• Recommended to use with Dynacord DSP power amplifiers

• SONICUE integration - optimized speaker settings for best performance

The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.

ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.

ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 23 degree monitor angle.

ZLX-15-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.

For optimal acoustics and performance, ZLX-15-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.

ZLX-G2 series accessories such as padded covers, a U bracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wall mount brackets compatible with all models are available.

Technical specifications

• Frequency response (-3 dB) (Hz) 1 :68 Hz – 18,000 Hz

• Frequency range (-10 dB) (Hz) 1 :53 Hz – 20,000 Hz

• Axial sensitivity (dB SPL 1W/1m) : 95 dB SPL 1W/1m

• Maximum sound pressure level at a :distance of 1 m (dB) 1 :126 dB

• High pass frequency (Hz) : 40 Hz

• Crossover frequency (kHz) : 2 kHz

• Coverage angle HxV (°) : 90° x 60°

• Power handling (continuous) (W) : 250 W

• Power handling (peak) (W) : 1,000 W

• Nominal impedance (Ω) : 8 Ω

• LF transducer : WECA2158

• LF transducer size (in)  :15 in

• LF transducer magnet material : Ferrite

• HF transducer : DH-1K

• HF transducer type : Compression driver

• HF transducer size (in) : 1.40 in

• HF transducer diaphragm material : Titanium

• Dimensions (H x W x D) (mm) : 697.6 mm x 422.8 mm x 383.1 mm

• Dimensions (H x W x D) (in) : 27.46 in x 16.65 in x 15.08 in

• Shipping dimensions (H x W x D)(mm)  :  765 mm x 490 mm x 490 mm

• Shipping dimensions (H x W x D) (in) : 30.12 in x 19.29 in x 19.29 in

• Weight (kg)  : 16.44 kg

Parts included

UPC

• 800549973830
