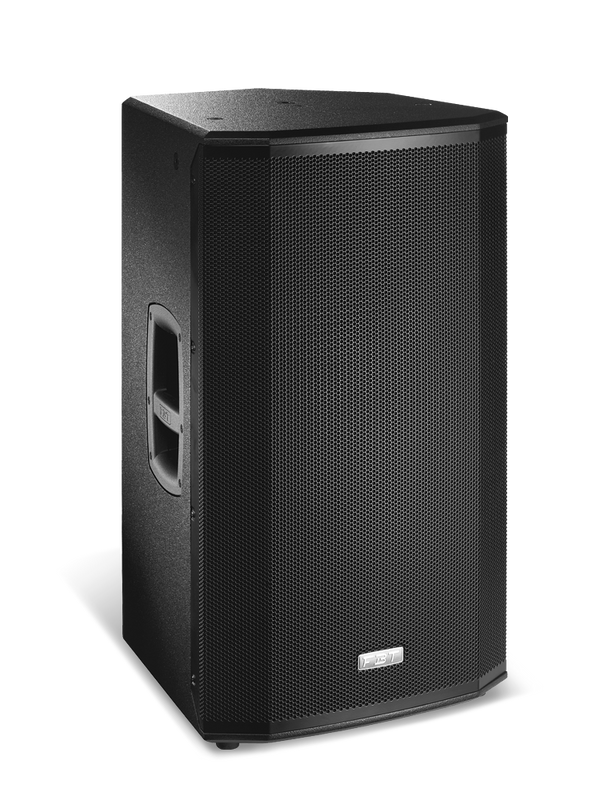

FBT Ventis 115A Active 15” Powered PA Speaker with DSP Controls

Product Description

FBT Ventis 115A 15” Active PA Speaker 700W+200W DSP Powered Pro Audio

VENTIS 115A is a two-way point source crafted with a birch plywood cabinet, scratch resistant enclosure and internal bracing. Rotatable horn for optimal horizontal or vertical sound dispersion angle. The 80° H x 50° V constant directivity of this point source 15″ LF / 1″ HF delivers in the listening area up to 127/133 dB SPL. Frequency response 42Hz to 20KHz. Powering the Ventis 115A is a sophisticated amplifier module, entirely designed in Italy, featuring a switching-mode power supply. The LF section delivers 700W RMS through a Class-D topology for efficiency and punch, while the HF section provides 200W RMS via a refined Class-H/AB design, ensuring smooth and detailed high-frequency reproduction. Equipped with B&C compression drivers and FBT’s own custom, long excursion woofers. Full suspension possibility through 6 M10 rigging points.

The flexibility of the VENTIS 115A makes it just as suitable for fixed installation as for use on stage as a FOH system. Includes aluminum handles with rubber inserts. Equipped with 1.38″ pole mount socket and a 45° sloped profile for unobtrusive placement on-stage as a monitor. The speaker is equipped with B&C compression drivers and FBT’s own custom, long-excursion woofers.The on-board DSP is located on the rear of each enclosure and the menu is navigated via a single rotary control with push-to-select functionality. Users can choose between a total of 6 pre-optimised settings: Original/Live, Vocal, DJ, Touring, Loudness and Warm. Besides, 2 further slots are available for users to form their own presets, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, a low, medium, high EQ and a delay line between 0 and 10 meters. Users can also choose between three limiter modes: MIN, NORMAL or MAX.

The VENTIS series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on stage. The series comprises five point sources and two monitors available in either passive or bi-amplified active versions.

Configuration: 2 way biamplified
Low Frequency Woofer: 1 x 15″ – 1 x 2.5″ VC
High Frequency Driver: 1 x 1” – 1.7” VC
Built-In Amplifier: 700/200W RMS
Maximum SPL: 127/133 dB
Material: Baltic birch plywood
