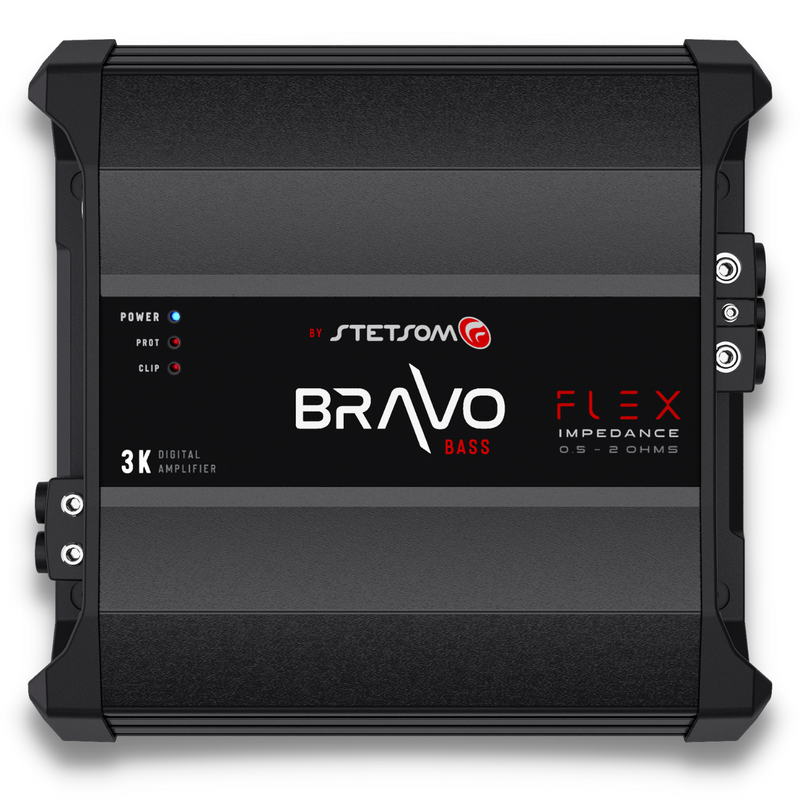

The BRAVO BASS FLEX line was developed for those looking for performance and versatility, allowing the use of several loudspeakers with a wide variety of impedances.
Its automatic impedance detection system automatically adjusts the product’s audio output to optimize efficiency and power, ensuring high quality audio reproduction.
Its frequency response from 5Hz to 200Hz is ideal for subwoofers and its multi-impedance system operates between 0.5Ω to 2Ω.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO BASS FLEX 3K |
|---|---|
| Number of Channels | 1 |
| RMS Power | 3000W |
| RMS Power at 0.5 Ohm | 3000W @ 14,4V |
| RMS Power at 1 Ohm 14.4V | 3500W |
| RMS Power at 2 Ohm 14.4V | 3000W |
| Supply Voltage | 9V ~17V DC |
| Frequency Response | 5Hz ~ 200Hz |
| Crossover Low Pass | 30Hz ~200Hz |
| Crossover High Pass | 5Hz ~40Hz |
| Signal to Noise | >90dB |
| Input Sensitivity | 0,2V ~ 3V |
| Input Impedance | 7K Ohms |
| Impedance Output | 0,5 ~ 2 OHMS (AUTO) |
| Consumption with Signal Musical | 160A |
| Consumption with Signal Bass | 320A |
| Subsonic Filter | ✓ |
| Dimensions (H x W x D) mm | 80 x 236 x 231,5 mm |
| Weight Kg | 3 Kg |
