Shure SBC203 Dual Charging Station for SB903 Batteries and SLX-D Transmitters
Dual docking recharging station charges two SB903 lithium-ion batteries in or out of their transmitters. Built to charge two batteries, two body pack transmitters, two handheld transmitters or any pairing of two SLX-D transmitters or SB903 batteries.

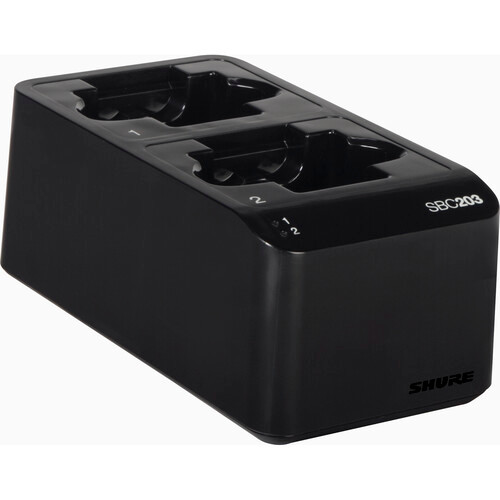

SBC203 Charger
The SBC203 two-bay charger holds two SB903 batteries or compatible transmitters. It may be used in any appropriate location with adequate space and ventilation.
Features
- Charge up to two SB903 batteries or compatible transmitters
- Securely connect multiple chargers
- LED icons for battery status
Included Components
- SBC203 Charger
- 15W USB Power Supply
- USB-C cable
- Bottom plate and screws (4) for attaching additional units
Note: SB903 batteries not included.
Linking Chargers
To save space and reduce clutter, chargers can be linked together using the provided hardware. Line up the bottom indentation on the chargers to be linked and attach the bottom plate using the provided screws. Once linked, chargers can be moved as one piece of hardware.
Note: Each charger requires an independent power supply.
Charging
To charge, place batteries into the charging bays with slotted sides down, or insert transmitters into the charging bays with the display facing forward. The LEDs illuminate to indicate battery status.
IMPORTANT: Always insert transmitters facing forward to avoid damage
Charging Status LEDs
| Description | Color | State |
|---|---|---|
| Ready for Use | Green (solid) | Device is fully charged |
| Charging | Red (flashing) | Charging |
| Error | Yellow (quick flashing) | Battery or power supply error* |
| Yellow (slow flashing) | Outside of operating temperature range | |
| Not charging | Off | Power supply is disconnected, or no device is docked in the charging bay |
* If an error occurs when a transmitter is docked in the charger, remove the battery from the transmitter and place directly into the charger. If the error persists, contact Shure Technical Support.
Note: Store batteries in the charger or in a proper container. To protect terminals from shorting, DO NOT place batteries in a box or pocket with metal objects such as nails, screws, or keys.
Specifications
SBC203 Battery Charger
- Charge Current: 625 mA or 250 mA; Lower current used when using another power source, or operating between 0℃ and 10℃
- Charge Time: 50% = 1 hour : 15 minutes; 100% = 2 hours : 30 minutes
- External Power Supply: SBC10-USB15W or SBC10-USB15WS
- Power Requirements: 5 V DC, 3 A max.
- Charging Temperature Range for Battery: 0 °C to 45 °C (32 °F to 113 °F)
- Dimensions: 66.3 x 86.0 x 155 mm (2.61 x 3.38 x 6.13 in.), H x W x L
- Weight: 284 g
- Housing: ABS
- Power Supply
Input Voltage Range: 100 to 240 V AC - Operating Frequency: 50 Hz to 60 Hz
- Maximum Input Power: 0.6 A, at 100 V AC full load
- Output Voltage: 4.75 to 5.25 V DC
- Maximum Output Power: 3.0 A, at 5 V
- Operating Temperature Range: 0 °C to 60 °C (32 °F to 140 °F)
Note:
- This equipment is intended to be used in professional audio applications.
- EMC conformance is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC performance.
- Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other than the specified modules and battery packs may increase the risk of fire or explosion.
- Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment.
UPC
- 042406562812
