Shure QLXD24/SM58-H50 Digital Handheld Wireless Microphone With SM58 Transmitter

Shure QLXD24/SM58-H50 Digital Handheld Wireless Microphone With SM58 Transmitter

Shure

Write a Review
SKU:
Shure QLXD24/SM58-H50 T.C.
Condition:
New
UPC:
042406343947
Avaliability:
Free Shipping
Order before 2PM (EST) Mon-Fri for Same Day Shipping
Store Pick Up Available We Price Match! Call Us On 718-272-7228
Now: $1,099.00
Adding to cart… The item has been added
Make an Offer
Award-Winning Service
Free Shipping Orders $49+
30 Days
Easy Returns
Guaranteed
Lowest Price
In-House
Experts

Financing Available

Shure QLXD24/SM58-H50 Digital Handheld Wireless Microphone System with SM58 Transmitter (H50: 534 - 598 MHz)

Featuring an SM58 handheld wireless microphone transmitter, QLXD24/SM58 combines professional features with simplified setup and operation.

QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

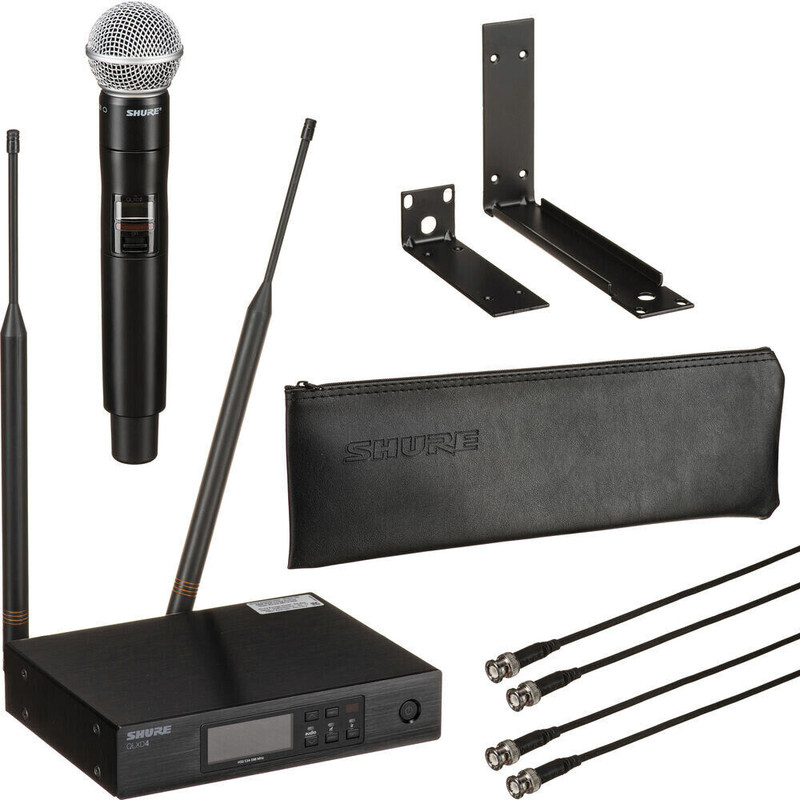

In The Box

  • 2x AA batteries

  • 2x 1/2 wave antennas

  • 2x 2 BNC cables

  • 1x zipper bag

  • 2x BNC bulkhead Adapters

  • 1x rackmount kit

  • 1x user guide

  • 1x power supply

Specifications

System

Wireless Technology
  • Digital UHF
Number of RF Channel Frequencies
  • 2560
Included Transmitters
  • 1 x Handheld
Diversity
  • Antenna Diversity
RF Frequency Band
  • H50: 534 to 598 MHz
RF Bandwidth
  • 64 MHz
Frequency Step Size
  • 25 kHz
Max Operating Range
  • 330' / 100.6 m
Max Transmitters per Band
  • 60
Sample Rate/Resolution
  • 48 kHz / 24-Bit
Latency
  • < 2.9 ms
Dynamic Range
  • 120 dB
Encryption
  • AES 256
Modulation
  • Proprietary
Receiver
Receiver Type
  • Tabletop
Mounting Options
  • Rackmount (with Included Hardware)
Rackmount Size
  • 1 RU (1/2 Rack)
Antenna
  • 2 x 1/2 Wave External, Detachable (Rear-Mount)
Number of Audio Channels
  • 1
Audio I/O
  • 1 x XLR 3-Pin Male Balanced Output
    1 x 1/4" TRS Female Balanced Output
Gain Range
  • -18 to +42 dB (1 dB Steps)
Pad
  • 30 dB
Audio Output Level
  • XLR Output:
    +18 dBV (Line Level)
    XLR Output:
    -12 dBV (Mic Level)
    1/4" Output:
    +12 dBV (Instrument Level)
Phantom Power Protection
  • On 1/4", XLR Output
Network I/O
  • 1 x RJ45 (10/100 Mb/s)
Network Protocols
  • DHCP, Manual IP
Impedance
  • XLR Output:
    100 Ohms (Balanced)
    1/4" Output:
    100 Ohms (Balanced)
    1/4" Output:
    50 Ohms (Unbalanced)
Adjacent Channel Isolation
  • >70 dB
Spurious
  • Rejection: >80 dB
Power Requirements
  • AC/DC Power Adapter
AC/DC Power Adapter
  • 12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power
  • 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators
  • 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1 x LED (Sync)
    1 x LED (Peak)
Housing
  • Metal
Operating Temperature
  • 0 to 122°F / -18 to 50°C
Dimensions
  • 7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
Weight
  • 1.7 lb / 777 g (without Antenna)
Transmitter
Transmitter Type
  • Handheld
RF Output Power
  • 1 / 10 mW
Audio I/O
  • None
Gain Range
  • 0 to 21 dB (3 dB Steps)
Frequency Response
  • 30 Hz to 20 kHz
Sync Method
  • IR
Antenna
  • 1 x 1/4 Wave
Power Requirements
  • Battery
Battery Type
  • 2 x AA (Included)
    1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life
  • 9 Hours (Alkaline)
Display & Indicators
  • 1 x Backlit LCD (Channel, Group, RF Output Power)
Housing
  • Aluminum
Dimensions
  • 2 x 10.1" / 51 x 256 mm
Weight
  • 12.2 oz / 347 g (without Batteries)
Microphone
Microphone Type
  • Handheld Capsule
Sound Field
  • Mono
Capsule
  • Dynamic
Polar Pattern
  • Cardioid
Frequency Range
  • 50 Hz to 15 kHz
Maximum SPL
  • 145 dB SPL
Sensitivity
  • -54.5 dBV/Pa
Packaging Info
Package Weight
  • 9.7 lb
Box Dimensions (LxWxH)
  • 19.5 x 17.3 x 4.1"
