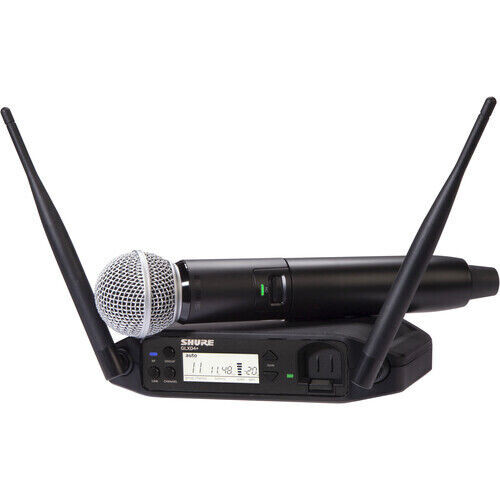

Shure GLXD24+/SM58-Z3 Digital Wireless Handheld System with SM58 Vocal Microphone (Z3: 2.4, 5.8 GHz)
Featuring the industry standard SM58® vocal microphone, the new GLXD24+/SM58 Dual Band Vocal System delivers superior, transparent digital audio.
The Shure GLXD24+ is a digital wireless handheld microphone system that offers reliability and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your performances, presentations, conferences, and events at a typical range of up to 100' indoors and 65' outside.
System
| Wireless Technology |
|
| Included Transmitters |
|
| Diversity |
|
| RF Frequency Band |
- Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
|
| RF Bandwidth |
|
| RF Channel Scanning |
|
| Max Operating Range |
- 100' / 30.5 m (Line of Sight)
|
| Max Transmitters per Band |
|
| Built-In Recorder |
|
| Timecode Support |
|
| Mobile App Compatible |
- No
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
|
| Latency |
|
| Dynamic Range |
|
| Encryption |
|
| Modulation |
|
Receiver
| Receiver Type |
|
| Antenna |
- 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
|
| Number of Audio Channels |
|
| Audio I/O |
- 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced/Unbalanced Output
|
| Audio Output Level |
- XLR Output:
+1 dBV
1/4" Output:
+8.5 dBV
|
| Phantom Power Protection |
|
| Frequency Response |
- 20 Hz to 20 kHz (Dependent on Mic)
|
| Network I/O |
|
| Word Clock I/O |
|
| USB/Lightning Connectivity |
- 1 x USB-C Female (Firmware Update)
|
| Impedance |
- XLR Output:
100 Ohms (Balanced)
1/4" Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
|
| RF Output Power |
|
| Spurious |
|
| Power Requirements |
|
| AC/DC Power Adapter |
- 14.5 to 17 VDC at 600 mA (Included)
|
| AC Input Power |
- 100 to 240 VAC, 50 / 60 Hz
|
| Display & Indicators |
- 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
|
| Housing |
|
| Operating Temperature |
|
| Dimensions |
- 7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm
|
| Weight |
|
Transmitter
| Transmitter Type |
|
| RF Output Power |
|
| Audio I/O |
|
| Pad |
|
| Muting |
|
| Auto-Level Control |
|
| Gain Range |
- -20 to +40 dB (1 dB Steps)
|
| Sync Method |
|
| Antenna |
- 1 x External, Fixed (Handheld)
|
| Power Requirements |
|
| Battery Type |
- 1 x Shure SB904 (Included, Replaceable)
|
| Internal Battery Capacity |
|
| Battery Charging Time |
|
| Approx. Battery Life |
- 12 Hours (Lithium Rechargeable)
|
| USB/Lightning I/O |
|
| Display & Indicators |
- 1 x LED (Battery Status, Sync)
|
| Housing |
|
| Dimensions |
- 2 x 9.7 x 1.5" / 51 x 246 x 37 mm (without Antennas)
|
| Weight |
- 9.7 oz / 275 g (without Batteries)
|
Microphone
| Microphone Type |
|
| Color |
|
| Sound Field |
|
| Capsule |
|
| Polar Pattern |
|
| Frequency Range |
|
| Impedance |
|
| Sensitivity |
|
Packaging Info
| Package Weight |
|
| Box Dimensions (LxWxH) |
|
