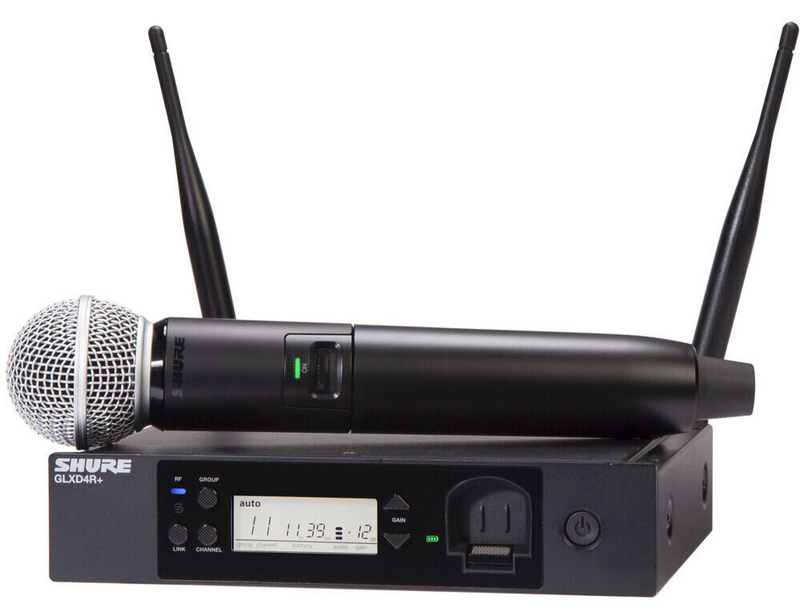

Shure GLXD24R+/SM58-Z3 Digital Wireless Rack System with SM58 Vocal Microphone (Z3: 2.4 / 5.8 GHz)

Featuring the industry standard SM58® vocal microphone, the new half-rack GLXD24+/SM58 Dual Band Vocal System delivers superior, transparent digital audio.

Ready-To-Go. Every time. Automatically.

Featuring the industry standard SM58® vocal microphone, the new half-rack GLXD24+/SM58 Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

Specifications

System

Wireless Technology
  • Digital 2.4 GHz/5.8 GHz
Included Transmitters
  • 1 x Handheld
Diversity
  • True Digital Diversity
RF Frequency Band
  • Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth
  • 208.5 MHz
RF Channel Scanning
  • Auto-Scan
Max Operating Range
  • 100' / 30.5 m (Line of Sight)
Max Transmitters per Band
  • 8
Built-In Recorder
  • No
Timecode Support
  • No
Mobile App Compatible
  • No
     *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Latency
  • 4.5 to 8 ms
Dynamic Range
  • 120 dBA
Encryption
  • None
Modulation
  • Proprietary
Receiver
Receiver Type
  • Rackmount
Mounting Options
  • Rackmount (with Included Hardware)
Rackmount Size
  • 1 RU (1/2 Rack)
Antenna
  • 2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels
  • 1
Audio I/O
  • 1 x XLR 3-Pin Male Balanced Mic/Line Output
    1 x 1/4" TRS Female Balanced Output
Pad
  • 30 dB
Audio Output Level
  • XLR Output:
    +18 dBV (Line Level)
    XLR Output:
    -12 dBV (Mic Level)
    1/4" Output:
    +12 dBV
Phantom Power Protection
  • On 1/4", XLR Outputs
Frequency Response
  • 20 Hz to 20 kHz (Dependent on Mic)
Network I/O
  • None
Word Clock I/O
  • None
USB/Lightning Connectivity
  • 1 x USB-C Female (Firmware Update)
Impedance
  • XLR Output:
    100 Ohms (Balanced)
    1/4" Output:
    100 Ohms (Balanced)
    50 Ohms (Unbalanced)
RF Output Power
  • 10 mW (EIRP, Max)
Spurious
  • Rejection: >35 dB
Power Requirements
  • AC/DC Power Adapter
AC/DC Power Adapter
  • 14.5 to 17 VDC at 600 mA (Included)
AC Input Power
  • 100 to 240 VAC, 50 / 60 Hz
Display & Indicators
  • 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing
  • Metal
Operating Temperature
  • 32 to 113°F / 0 to 45°C
Dimensions
  • 7.8 x 1.7 x 6.4" / 197 x 42 x 163 mm
Weight
  • 30.5 oz / 866 g
Transmitter
Transmitter Type
  • Handheld
RF Output Power
  • 10 mW (EIRP)
Audio I/O
  • None
Pad
  • None
Muting
  • Off/On Switch
Auto-Level Control
  • No
Gain Range
  • -18 to +42 dB (1 dB Steps)
Sync Method
  • Proprietary
Antenna
  • 1 x External, Fixed (Handheld)
Power Requirements
  • Battery
Battery Type
  • 1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity
  • 2420 mAh
Battery Charging Time
  • .25 to 3 Hours
Approx. Battery Life
  • 12 Hours (Lithium Rechargeable)
USB/Lightning I/O
  • 1 x USB-C (Charging)
Display & Indicators
  • 1 x LED (Battery Status, Sync)
Housing
  • Metal, Plastic
Dimensions
  • 2 x 9.7 x 1.5" / 51 x 246 x 37 mm
Weight
  • 9.7 oz / 275 g (without Batteries)
Microphone
Microphone Type
  • Handheld
Color
  • Black
Sound Field
  • Mono
Capsule
  • Dynamic
Polar Pattern
  • Cardioid
Frequency Range
  • 50 Hz to 15 kHz
Impedance
  • 300 Ohms
Sensitivity
  • -54.5 dBV/Pa
Packaging Info
Package Weight
  • 7.13 lb
Box Dimensions (LxWxH)
  • 18.3 x 13.8 x 4.4"
