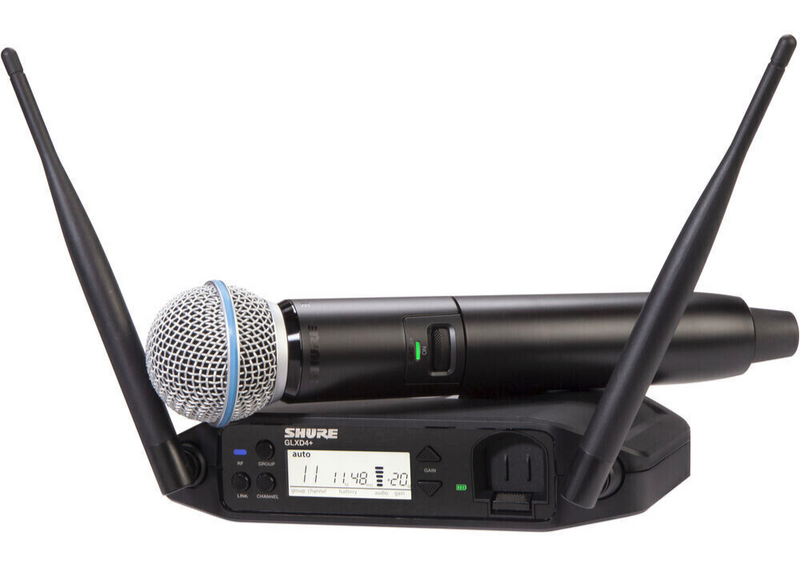

Shure GLXD24+/B58-Z3 Digital Wireless Handheld System BETA 58A Vocal Microphone

Product Description

Shure GLXD24+/B58-Z3 Digital Wireless Handheld System with BETA 58A Vocal Microphone (Z3: 2.4 / 5.8 GHz)

Featuring the industry standard BETA®58A vocal microphone, the new GLXD24+/B58 Dual Band Vocal System delivers superior, transparent digital audio.

Ready-To-Go. Every time. Automatically.

Featuring the industry standard BETA®58A vocal microphone, the new GLXD24+/B58 Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

Specifications

System

Wireless Technology	Digital 2.4 GHz/5.8 GHz
Included Transmitters	1 x Handheld
Diversity	True Digital Diversity
RF Frequency Band	Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth	208.5 MHz
RF Channel Scanning	Auto-Scan
Max Operating Range	100' / 30.5 m (Line of Sight)
Max Transmitters per Band	8
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Latency	4.5 to 8 ms
Dynamic Range	120 dBA
Encryption	None
Modulation	Proprietary

Receiver

Receiver Type	Tabletop
Antenna	2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TRS Female Balanced Output
Audio Output Level	XLR Output: +1 dBV 1/4" Output: +8.5 dBV
Phantom Power Protection	On 1/4", XLR Outputs
Frequency Response	20 Hz to 20 kHz (Dependent on Mic)
Network I/O	None
Word Clock I/O	None
USB/Lightning Connectivity	1 x USB-C Female (Firmware Update)
Impedance	XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
RF Output Power	10 mW (EIRP, Max)
Spurious	Rejection: >35 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	14.5 to 17 VDC at 600 mA (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Display & Indicators	1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing	ABS
Operating Temperature	32 to 113°F / 0 to 45°C
Dimensions	7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm
Weight	10.9 oz / 310 g

Transmitter

Transmitter Type	Handheld
RF Output Power	10 mW (EIRP)
Audio I/O	None
Pad	None
Muting	Off/On Switch
Auto-Level Control	No
Gain Range	-20 to +40 dB (1 dB Steps)
Sync Method	Proprietary
Antenna	1 x External, Fixed (Handheld)
Power Requirements	Battery
Battery Type	1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity	2420 mAh
Battery Charging Time	.25 to 3 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Sync)
Housing	Metal, Plastic
Dimensions	2 x 9.7 x 1.5" / 51 x 246 x 37 mm
Weight	7.9 oz / 225 g (without Batteries)

Microphone

Microphone Type	Handheld
Color	Black
Sound Field	Mono
Capsule	Dynamic
Polar Pattern	Supercardioid
Frequency Range	50 Hz to 16 kHz
Impedance	290 Ohms
Sensitivity	-51.5 dBV/Pa

Packaging Info

Package Weight	4.555 lb
Box Dimensions (LxWxH)	18.7 x 12.9 x 4.3"
