Shure BLX14/SM31 H11 Wireless Fitness Headset System w/SM31FH Headset Microphone

(No reviews yet) Write a Review
SKU:
Shure BLX14/SM31 H11 T.C.
UPC:
042406470360
Condition:
New
Availability:
Free Shipping
Order before 3PM (EST) Mon-Fri for Same Day Shipping
$389.00

Product Description

Shure BLX14/SM31 Wireless Fitness Headset System with SM31FH Headset Microphone (H11: 572 - 596 MHz)

The SM31FH cardioid condenser microphone with analogue transmission, designed for use in fitness instruction, features moisture-repelling construction for true performance in humid applications where corrosion damage is common.

Product Details

Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

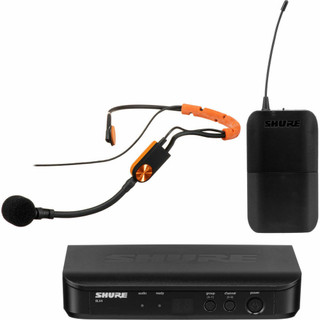

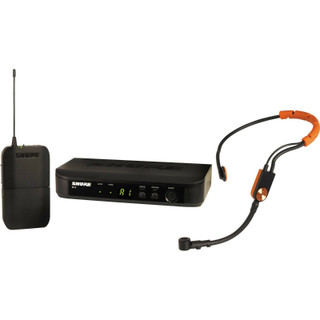

Includes BLX4 wireless receiver, BLX1 bodypack transmitter, SM31 fitness headset microphone, power supply, clothing clip, windscreens, and user guide.

In The Box

  • 1 - PS24 Power Supply

  • 1 - clothing clip

  • 1 - windscreen

Specifications

System

Wireless Technology
  • Analog UHF
Number of RF Channel Frequencies
  • 123
Included Transmitters
  • 1 x Bodypack
Diversity
  • Antenna Diversity
RF Frequency Band
  • H11:
    572 to 596 MHz
RF Bandwidth
  • 24 MHz
RF Channel Scanning
  • Auto-Scan
Max Operating Range
  • 300' / 91.4 m (Line of Sight)
Max Transmitters per Band
  • 12
Dynamic Range
  • 100 dBA
Receiver
Receiver Type
  • Tabletop
Antenna
  • 2 x Internal, Fixed
Number of Audio Channels
  • 1
Audio I/O
  • 1 x XLR 3-Pin Male Balanced Output
    1 x 1/4" TS Female Unbalanced Output
Audio Output Level
  • XLR Output:
    -27 dBV (Mic Level)
    1/4" Output:
    -13 dBV (Instrument Level)
Frequency Response
  • 50 Hz to 15 kHz (Dependent on Mic)
Impedance
  • XLR Output:
    200 Ohms
    1/4" Output:
    50 Ohms
Power Requirements
  • AC/DC Power Adapter
AC/DC Power Adapter
  • 12 to 15 VDC at 160 mA, Center-Positive (Included)
AC Input Power
  • 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators
  • 1 x Multi-Segment LED (Channel, Group)
    2 x LED (AF Level, Sync)
Housing
  • ABS
Dimensions
  • 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
Weight
  • 8.5 oz / 241 g
Transmitter
Transmitter Type
  • Bodypack
RF Output Power
  • 10 mW
Audio I/O
  • 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting
  • Off/On Switch
Auto-Level Control
  • No
Gain Range
  • -16 to +10 dB
Sync Method
  • Manual
Antenna
  • 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements
  • Battery
Battery Type
  • 2 x AA (Included)
Approx. Battery Life
  • 14 Hours (Alkaline)
Display & Indicators
  • 1 x Multi-Segment LED (Channel, Group)
    1 x LED (Battery Status, Power)
Housing
  • ABS
Dimensions
  • 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight
  • 2.6 oz / 75 g (without Batteries)
Microphone
Microphone Type
  • Headset
Sound Field
  • Mono
Capsule
  • Electret Condenser
Polar Pattern
  • Cardioid
Frequency Range
  • 45 Hz to 20 kHz
SNR
  • 66 dB
Maximum SPL
  • 145 dB SPL
Dynamic Range
  • 117 dB
Output Connectors
  • 1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length
  • 3.61' / 1.1 m
Operating Voltage
  • 5 V
Weight
  • 2.12 oz / 60 g
Packaging Info
Package Weight
  • 2.84 lb
Box Dimensions (LxWxH)
  • 13.5 x 11.9 x 4"
