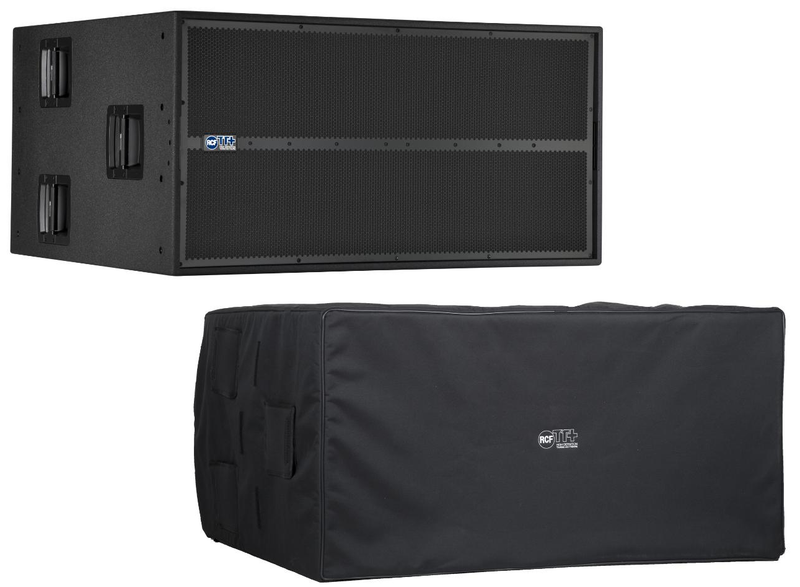

RCF TTS 56-A ACTIVE HIGH POWER SUBWOOFER WITH CVR TTS 56 PADDED COVER MINT
The TTS56-A is a high power, high output active subwoofer system that sets a new standard in the touring sound reinforcement.
The new 21" neodymium design represents the result of many years dedicated in pioneering new solutions for the transducers technology.
The integration of the 6800 W, two channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.
Features
- 2 x 3400 W digital amplifiers
- 2 x 21" high power neodymium woofers
- 96 kHz, 32 bit DSP processing
- Remote monitoring and control
- Time delay alignment
- Cardioid preset for groups
- Tour grade cabinet
- RDNet on board
- Maximum output per size on market
Applications
- Touring sound reinforcement for large-sized venues
- Large-scale event reinforcement
- Stadiums, arenas, large events and concerts
Acoustical Specifications
- Frequency Response -3 dB: 30 Hz ÷ 100 Hz
- Max SPL: 145 dB
- Woofer: 2 x 21" neo, 4.5" voice coil
Input/Output Section
- Input connectors: XLR, Ethercon
- Output connectors: XLR, Ethercon
- Input sensitivity: -2 dBu / +10 dBu
Processor Section
- Protections: thermal, excurs., rms
- Limiter: soft limiter
- Controls: DSP controlled
Amplifier Specifications
- Total power: 6800 W RMS
- Low frequencies: 2 x 3400 W RMS
- Cooling: convection/forced
- Connections: powercon
Cabinet
- Cabinet Material: baltic birch plywood
- Hardware: 2 x steel bar for fork-lift transportation, 4 x 100 mm wheels
- Handles: 6 side
Physical Specifications
- Height: 590/23.2 mm/inch
- Width: 1170/46.0 mm/inch
- Depth: 988/38.9 mm/inch
- Net Weight: 115/235.5
box includes:
- RCF TTS 56 Speaker
- RCF TTS 56 Cover
UPC
- 8024530008611
