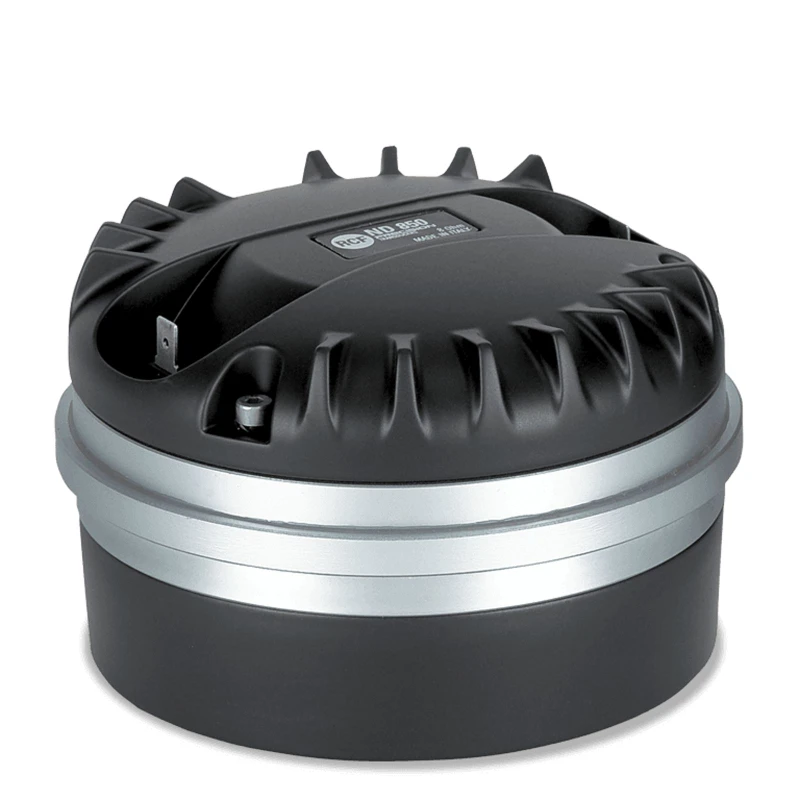

RCF ND850 2.0 8 Ohm 3-Inch Titanium Compression Driver 2-Inch Exit Throat
ND850 2.0
DRIVER
Features
- 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
- 220W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Titanium diaphragm
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- Nedymium magnet assembly
The ND850 2.0 is a high performance 3.0-inch diaphragm compression driver with a 2 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented and damped design in order to provide low distorsion. Voice coil assembly is designed using high temperature kapton former.
specifications
General specifications
- Exit Throat Diameter: 2.0 inch / 51 mm
- Related Impedance: 8 ohm
- Program Power (watt): 220 W
- Power handling capacity: 110 W
- Sensitivity: 109 dB
- Frequency range: 500 - 20000 Hz
- Diaphragm Material: Pure Titanium
- Suspension Material: Polyester
- Suspension Design: Flat
- Minimum Impedance (ohm): 8.50 ohm
- Voice Coil Diameter: 3.0 inch / 76 mm
- Voice Coil Winding Material: Edgewound Aluminum
- Voice Coil Former Design: Straight - Kapton
- Number of layers: 1
- Kind of layers: outside
- Flux Density: 2.0 T
- Phase Plug Design: 3 slot
- Phase Plug Material: Aluminum
- Magnetics: Neodymium
- Voice Coil Demodulation Ring: Copper
Thiele - small parameters
- Bl factor (Bl) (T x m): 13.00 T x m
Mounting information
- Overall diameter: 131 mm / 5.16 inches
- Overall height: 88 mm / 3.46 inches
- Mounting: 4 x 6 mm threaded holes at 90°
Standard compliance
- Safety agency: CE compliant
Size / Weight
- Weight: 2.74 kg / 6.04 lbs
Shipping information
- Package Height: 102 mm / 4.02 inches
- Package Width: 150 mm / 5.91 inches
- Package Depth: 152 mm / 5.98 inches
- Package Weight: 2.95 kg / 6.5 lbs
Part number:
- 15129037
- ND850 2.0
- 8ohm
