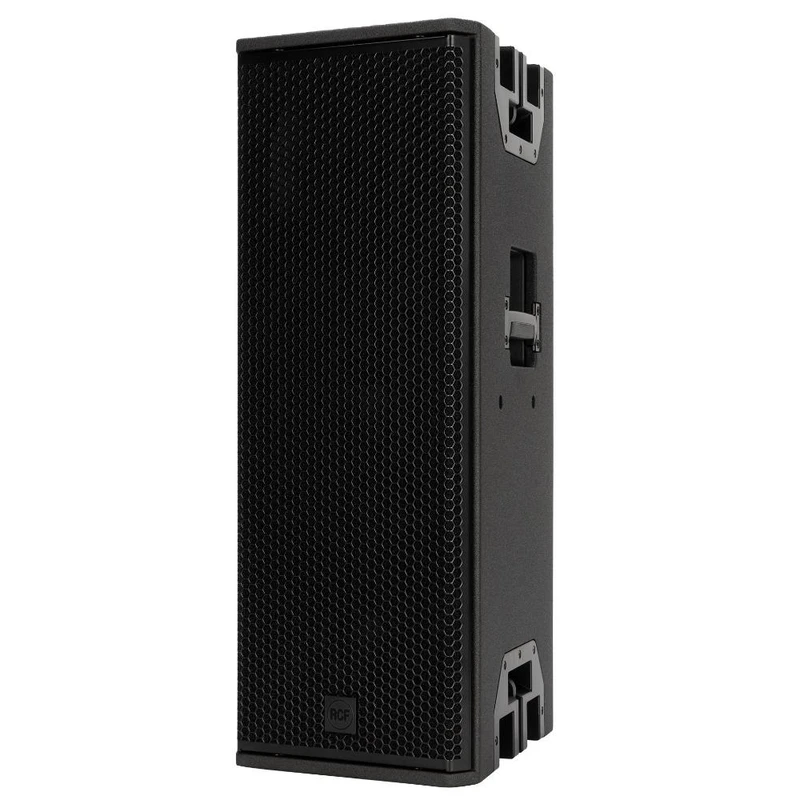

RCF KXL 4-A Active Two-Way Array Speaker – 3200W, 135 dB SPL, Dual 10" Woofers, 4" HF Driver, Rotatable Waveguide
The KXL 4-A is a compact, flexible high-output 2-way active speaker engineered for professional users, combining precise directivity, high SPL capability, and advanced rigging for both vertical and horizontal array configurations. The low-frequency section features two 10” neodymium drivers in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 4” titanium dome, coupled to a rotatable 100° x 25° True Resistive Waveguide. Transducers can be swapped (firmware update required). An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
Advanced electronics
The high-powered Class-D amplifiers, tailored for each transducer, deploy pristine sound with efficient heat dissipation at the lowest possible distortion, along with low power consumption.
High-end AD/DA conversion up to 96 kHz - 32-bit floating-point, and onboard DSP for the best sound quality. Thanks to the proprietary RDNet networked management and control, every KX speaker provides in-depth remote monitoring through multiple sensors. The system engineer has immediate feedback of transducer status, fan speed, temperature, VU meters, limiters and much more.
100°X25° waveguide with coherent directivity
This special waveguide design allows the deployment of multiple KXL 4-A for excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.
Precision Transducers
Low Frequency
The 4-inch pure titanium dome NDT995 compression driver maximizes linearity, precision and long-term reliability. Its motor structure features a high-flux density neodymium magnet assembly, ultralight edge wound aluminum wire, a 4-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. With a very low crossover point at 750 Hz, this allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
High Frequency
The two 10-inch Hyper vented woofer of the Precision Transducers line enable a compact, slim design while delivering high power. The magnetic structure features a large neodymium magnet, ensuring extremely high flux density within the gap. The newly designed aluminum basket and magnetic assembly provide excellent heat dissipation and significantly reduce power compression. Special air-forced ventilation is incorporated into the voice coil, magnet assembly, and basket, optimizing cooling efficiency. The M-roll surround and spider design ensure superb linearity and highly accurate sound reproduction.
Robust and durable
The enclosure is made of high-quality Baltic birch plywood, glued with water-resistant adhesive and coated with weatherproof polyurea paint, ensuring excellent waterproofing, UV resistance, corrosion protection, and durability against abrasion, impacts, and mechanical stress. The solid machined aluminum structure efficiently dissipates heat fanlessly, improving enclosure stiffness, while the high-strength structural steel rigging ensures a high safety factor for secure weight management. Die-cast aluminum handles with ergonomic rubber grips enhance usability.
Tour Ready Construction
Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced and sturdy, equipped with waterproof powerCON® TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.
Features
- 135 dB max SPL
- Rotatable 100° x 25° TRW waveguide
- LF 2 x 10’’ neodymium woofer, 3.0” voice coil
- HF 4.0” titanium dome, neodymium comp. driver
- 2 x Class-D amplifiers, 3200 Watt total power
- DSP Processing with Fir PHASE and BMC
- RDNet Networked Management
- Advanced Rigging and powerCON TRUE1 TOP mains connectors
- Reinforced structural design
- Water Resistant Birch Enclosure
- Durable Polyurea Paint
- High-strength Steel
- Ergonomic handles
- Machined Aluminum Heat Sink
Specification
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 135 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 25°
- Compression Driver
- 1 x 1.4'' neo, 4.0'' v.c
- Woofer
- 2 x 10'' neo, 3.0'' v.c
- Input signal
- bal/unbal
- Input connectors
- XLR, RDNet Ethercon
- Output connectors
- XLR, RDNet Ethercon
- Input sensitivity
- +4 dBu
- Crossover Frequencies
- 900Hz
- Protections
- Thermal, RMS
- Limiter
- Fast Limiter
- Controls
- Gain Reduction, delay, proces., 8 sel. presets
- RDNet
- Onboard
- Total Power
- 3200 W Peak
- High frequencies
- 1200 W Peak
- Low frequencies
- 2000 W Peak
- Cooling
- Convection
- Connections
- Powercon TRUE1 TOP IN/OUT
- Safety agency
- CE compliant
- Cabinet/Case Material
- Baltic birch plywood
- Hardware
- Array fittings, 2xM10 on the top, 2xM8
- Handles
- 2 side, 2 rear
- Pole mount/Cap
- 35 mm insert
- Grille
- Steel with clothing
- Color
- Black
- Height
- 825 mm / 32.48 inches
- Width
- 310 mm / 12.2 inches
- Depth
- 369 mm / 14.53 inches
- Weight
- 30.4 kg / 67.02 lbs
- Package Height
- 410 mm / 16.14 inches
- Package Width
- 865 mm / 34.06 inches
- Package Depth
- 365 mm / 14.37 inches
- Package Weight
- 33.5 kg / 73.85 lbs
UPC
- 8024530022129
