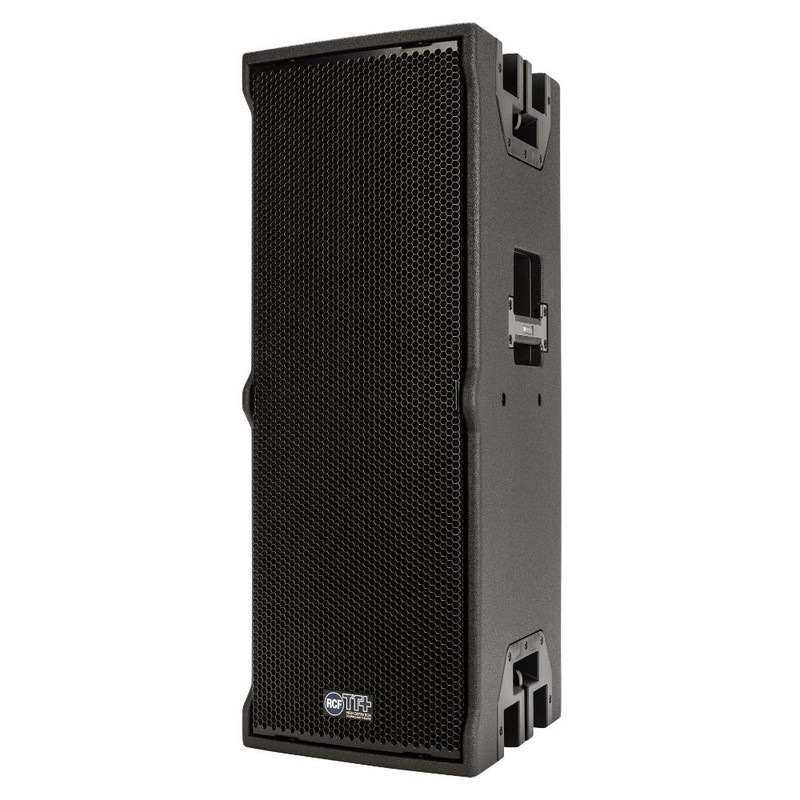

RCF TTW 4-A 10" WIDE DIRECTIVITY ACTIVE TWO-WAY SPEAKER 3200 Watts

(No reviews yet) Write a Review
SKU:
RCF TTW 4-A T.C.
UPC:
8024530017569
Condition:
New
Order before 3PM (EST) Mon-Fri for Same Day Shipping

Contact Us For Best Price 718 272-7228

Make An Offer

Product Description

RCF TTW 4-A WIDE DIRECTIVITY ACTIVE TWO-WAY SPEAKER

The TTW 4-A point source speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas.

Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. It is especially suitable for stacked and flown systems when a wide dispersion is required.

With all the advantages of TT+ technology, such as coherent directivity, power, and precision, it’s designed for professional applications.

  • 134 dB max SPL
  • 100° x 50° coverage
  • LF 2 x 10’’ neodymium woofer, 3.0” voice coil
  • HF 1.5” Nd comp. driver 4.0” voice coil
  • 2 x Class-D amplifiers, 1600 Watt RMS total power
  • 45 – 20.000 Hz frequency range
  • RDNet on board
  • FiRPHASE 0° linear phase

TT 4-A THE SOLUTION SPEAKERS

Top-quality sound for highly demanding events indoors or outdoors in small to medium-sized areas. The TT 4 series flexibility fills the gaps between point source and line array speakers, providing the audio engineer with augmented coverage adaptability. This approach combines all the advantages of TT+ technology, such as controlled dispersion, outstanding clarity and extreme power with three coverage options, multiple rigging accessories, remote control and recallable presets. A groundbreaking solution for a vast range of applications.

100°X50° WAVEGUIDE WITH COHERENT DIRECTIVITY

This special waveguide design allows the deployment of multiple TTW 4-A for excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

RCF RDNet NETWORKED CONTROL AND MUCH MORE

RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.

The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

Acoustical specifications

  • Frequency Response: 45 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 134 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 50°

Transducers

  • Compression Driver: 1 x 1.5'' neo, 4.0'' v.c
  • Woofer: 2 x 10'' neo, 3.0'' v.c

Input/Output section

  • Input signal: bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu

Processor section

  • Crossover frequencies: 900Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Selectable preset, volume, delay
  • RDNet: Yes

Power section

  • Total Power: 3200 W Peak, 1600 W RMS
  • High frequencies: 1200 W Peak, 600 W RMS
  • Low frequencies: 2000 W Peak, 1000 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT

Standard compliance

  • CE marking: Yes

Physical specifications

  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: Array fittings, 2xM10 on the top, 2xM8 on each side
  • Handles: 2 Side, 2 Rear
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Color: Black

Size

  • Height: 825 mm / 32.48 inches
  • Width: 316 mm / 12.44 inches
  • Depth: 369 mm / 14.53 inches
  • Weight: 30.4 kg / 67.02 lbs

Shipping information

  • Package Height: 410 mm / 16.14 inches
  • Package Width: 865 mm / 34.06 inches
  • Package Depth: 365 mm / 14.37 inches
  • Package Weight: 33.5 kg / 73.85 lbs
