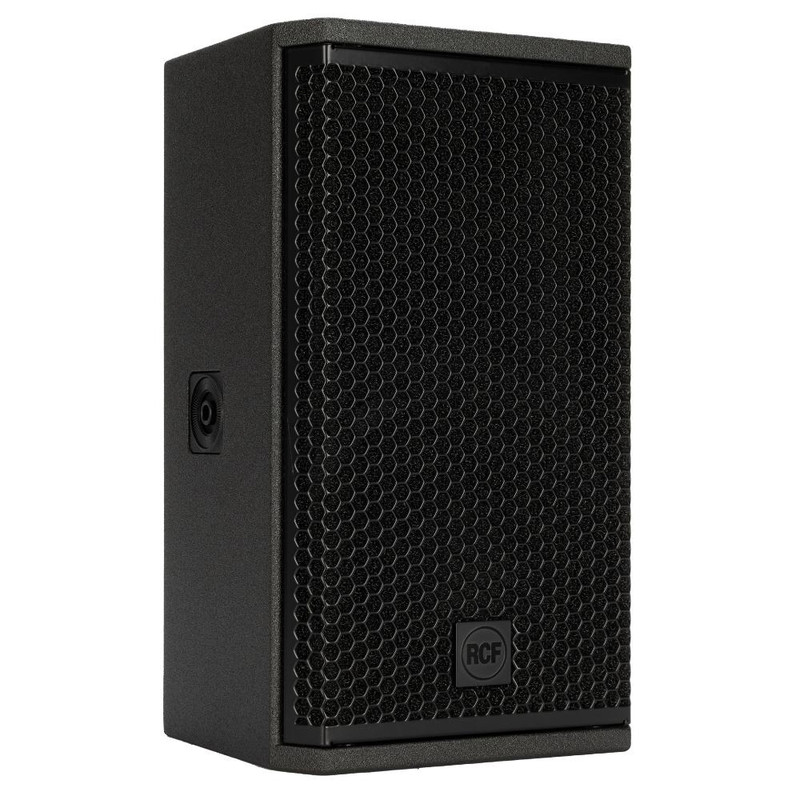

RCF KX 08-A HIGH-PERFORMANCE 2-WAY POINT-SOURCE ACTIVE SPEAKER 2000Watt (Black)
The KX 08-A is a compact, high-output 2-way active speaker system engineered for professional users, combining precise directivity, high SPL capability, and advanced system integration. The low-frequency section features an 8” neodymium driver in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 1.75” PKX dome, coupled to a 90° x 70° True Resistive Waveguide, rotatable by 90° to ensure flexible coverage options. An integrated two-channel 2000 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure with Quick Fit and M10 inserts supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
Advanced electronics
The high-powered Class-D amplifiers, tailored for each transducer, deploy pristine sound with efficient heat dissipation at the lowest possible distortion, along with low power consumption.
High-end AD/DA conversion and onboard DSP for the best sound quality. Thanks to the proprietary RDNet networked management and control, every KX speaker provides in-depth remote monitoring through multiple sensors. The system engineer has immediate feedback of transducer status, fan speed, temperature, VU meters, limiters and much more.
Precision Transducers
Low Frequency
The 8” high-power cone transducer integrates Bass Motion Control (BMC) DSP and FiRPHASE-optimized crossover to extend the low-frequency range and enhance midrange efficiency, matching the waveguide dispersion for perfect coverage continuity around the crossover point.
High Frequency
Paired with the True Resistive Waveguide (TRW), the 1.75” compression driver incorporates a newly developed dome crafted from PKX (Modified Polyether Ether Ketone). PKX is a rigid yet lightweight, colorless organic polymer, possibly the best of the thermoplastic resin film for its superior specifications. Designed by the RCF Precision Transducers laboratory, the dome is reinforced with ribs to obtain a slim but rigid profile. This innovation delivers greater precision and reliability for demanding audio applications.
Robust and durable
The enclosure is made of high-quality Baltic birch plywood, glued with water-resistant adhesive and coated with weatherproof polyurea paint, ensuring excellent waterproofing, UV resistance, corrosion protection, and durability against abrasion, impacts, and mechanical stress. The solid machined aluminum structure efficiently dissipates heat fanlessly, improving enclosure stiffness, while the high-strength structural steel rigging ensures a high safety factor for secure weight management. Die-cast aluminum handles with ergonomic rubber grips enhance usability.
- Reinforced structural design
- Water Resistant Birch Enclosure
- Durable Polyurea Paint
- High-strength Steel
- Ergonomic handles
- Machined Aluminum Heat Sink
Tour Ready Construction
Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced and sturdy, equipped with waterproof powerCON® TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.
Features
- 128 dB SPL Max
- Rotatable 90° x 70° TRW horn
- 8’’ neodymium woofer, 2.5’’ voice coil
- 1,75’” PKX dome, neodymium compression driver
- Two-channel, 2000W Class-D amplifier
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- powerCON TRUE1 TOP mains connectors
Specification
Acoustical specifications
- Frequency Response: 65 Hz ÷ 20000 Hz
- Max SPL @ 1m: 128 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 70°
- Transducers
- Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
- Woofer: 1 x 8'' neo, 2.5'' v.c
Input/Output Section
- Input signal: bal/unbal
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: -2 dBu/+4 dBu
Processor Section
- Crossover Frequencies: 1400Hz
- Protections: Thermal, HF
- Limiter: Fast Limiter
- Controls: Bypass, Linear/High Pass, Volume
- RDNet: Onboard
Power Section
- Total Power: 2000 W Peak
- High frequencies: 600 W Peak
- Mid frequencies: 1400 W Peak
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT
Standard Compliance
- Safety agency: CE compliant
Physical Specifications
- Cabinet/Case Material: Baltic birch plywood
- Hardware: 3X M10 TOP AND BOTTOM / 2X PIN D.10 AND M10 SIDE
- Handles: 1 TOP
- Pole mount/Cap: 35 mm insert
- Grille: Steel with clothing
- Color: Black
Size/Weight
- Height: 450 mm / 17.72 inches
- Width: 260 mm / 10.24 inches
- Depth: 285.4 mm / 11.24 inches
- Weight: 11 kg / 24.25 lbs
Shipping Information
- Package Height: 555 mm / 21.85 inches
- Package Width: 345 mm / 13.58 inches
- Package Depth: 315 mm / 12.4 inches
- Package Weight: 12.5 kg / 27.56 lbs
UPC
- 8024530022907
