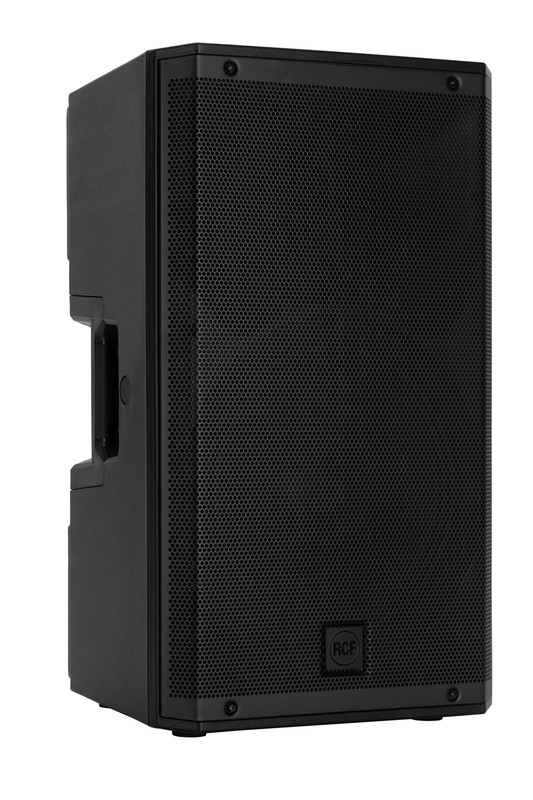

RCF ART 812-A Active PA Speaker 12 Inch 1400W DJ Live Sound System
FiRPHASE
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system. A professional appearance of an ART 8 speaker is ideal for live events or installed applications. The sleek black cabinet uses a special polypropylene composite material with a radically new construction concept. The grill cover is heavy-duty steel protecting both transducers and vented ports.
LOW-FREQUENCY ENHANCER
XBOOST adds extra depth and impact to the low- frequency response when more bass presence is needed. It can be activated directly from the rear panel, giving users a fast way to adapt the speaker to the performance, the room, or the listening level. For setups without a subwoofer, XBOOST helps create a fuller sound while keeping the overall response controlled and balanced.
TRUE RESISTIVE WAVEGUIDE
The integration of waveguide geometry, vented port placement, and FiRPHASE technology enables the speaker to function as a single, coherent source The True Resistive Waveguide mimics a resonance-free load, reducing high- frequency distortion compared to traditional horn designs. Engineered fo consistent performance, the waveguide delivers constant directivity across the listening area, improving coverage and stereo imaging.
REINFORCED COMPOSITE ENCLOSURE
ART 8 uses a reinforcedmodern composite enclosure engineered for strength, acoustic stability, and a professional appearance. Internal M-Brace reinforcement increases structural rigidity and minimizes unwanted vibration, supporting cleaner sound at high volume. Lightweight yet durable, the enclosure is suited to portable systems, live stages, venues, and fixed installations. The grille cover is made of heavy-duty steel, protecting both the transducers and the vented ports.
ART 812-A is a new launch, new arrival portable two-way active speaker built for DJs, musicians, and installers who want professional sound, robust performance, and everyday versatility in a sleek, modern form factor. A 1.75” compression driver, 12” woofer, and powerful 1400 W two-channel amplifier work with RCF’s constant directivity True Resistive Waveguide to deliver consistent 100° x 60° coverage, clear reproduction, and up to 129 dB SPL with low distortion. The lightweight yet rugged cabinet uses a special polypropylene composite with internal M-brace reinforcement for improved stability and reduced resonance, making ART 812-A fast to deploy, easy to handle, and ready for portable systems or secure installation on a pole, wall, truss, or flown setup via multiple rigging points.
Features:
- 129 dB Max SPL
- 1400 W Class D Bi-Amplification
- 100° x 60°, Wide dispersion True Resistive Waveguide
- 1.75” Compression Driver
- 12” Woofer
Acoustical specifications
- Frequency Response: 50 Hz - 20000 Hz
- Max SPL 1m: 129 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
Transducers
- Compression Driver. 1 x 1.0'', 1.75'' v.c
- Woofer: 12'', 2.5'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors. XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
Processor section
- Crossover Frequencies: 1600
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, MIC/Line
Power section
- Total Power: 1400 W Peak
- High frequencies: 400 W Peak
- Low frequencies: 1000 W Peak
- Cooling: Convection
- Connections: VDE
RCF Technology FIRPHASE-XBOOST
Standard compliance
- Safety agency: CE compliant
Physical specifications
- Cabinet/Case Material: PP Composite
- Hardware: 3 x M10, 1 on top e 1 each side
- Handles: 1 on top, 1 each side
- Pole mount/Cap: 35 mm insert
- Grille: Steel
- Color: Black
Size
- Height: 634.9 mm / 25 inches
- Width: 369.9 mm / 14.56 inches
- Depth: 363.2 mm / 14.3 inches
- Weight: 19 kg / 41.89 lbs
PART NUMBER (100-120 V): 13000995
UPC
- 8024530025144
