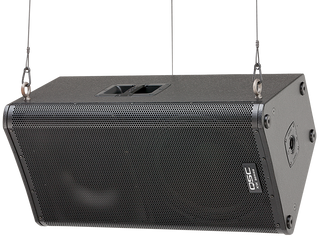

QSC KW152 15" two-wayactive speaker

Product Description
Product Specifications
Product Videos

QSC KW152 15" two-way, 1000W, 60° axisymmetric, active loudspeaker.

Features

15-inch Woofer; 1.75-inch diaphragm compression driver
60° conical DMT coverage
Maximum SPL 133 dB peak
1000 watt Class D power modules in all models (2 x 500 W continuous)
Onboard mixer with two combo XLR and ¼⁻ᶦⁿᶜʰ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
Rugged, texture-painted birch enclosures
Four-position Mic/Line gain (full-range models)
Tour-grade 16 gauge steel grilles
Comfortable ergonomic handles
35 mm pole sockets with Tilt-Direct™
M10 rigging points for suspended installation

Specifications

Frequency Response (-6 dB):	47 Hz to 18 kHz
Configuration:	15" 2-way trapezoidal
Nominal Coverage (-6 dB):	60° axisymmetric
Maximum SPL:	133 dB peak
Low Frequency Transducer:	15" cone transducer
High Frequency Transducer:	1.75" diaphragm compression driver
Frequency Range (-10 dB):	44 Hz to 20 kHz
Amplifiers Controls:	Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Voltage:	Universal Power Supply
Amplifiers Indicators:	Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
Amplifiers Power Output:	1000 W Class D (500 W LF + 500 W HF) continuous 2000 W peak
Amplifiers Connectors:	Balanced female XLR/1/4" line/mic level input, Balanced female XLR/1/4" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking
Amplifiers Cooling:	On demand, 50 mm variable speed fan
Amplifiers Input Impedance(Channel A XLR / 1/4"):	38 kΩ(Mic gain setting 0 dB/Balanced), 19 kΩ(Mic gain setting 0 dB/Unbalanced), 10 kΩ(Mic gain setting +12 dB/Balanced), 5 kΩ(Mic gain setting +12 dB/Unbalanced), 2.66 kΩ(Mic gain setting +24 dB/Balanced), 1.33 kΩ
Amplifiers AC Power Consumption (1/8 Power):	100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A
Amplifiers AC Power Input:	Universal power supply 100–240 VAC, 50 to 60 Hz
Amplifier Protection:	Thermal limiting, output overcurrent, overtemperature muting, GuardRail
Amplifiers Input Impedance(Channel B XLR / 1/4"):	38 kΩ(balanced), 19 kΩ(unbalanced)
Enclosure Material:	15 mm painted birch plywood
Enclosure Grille:	Black powder coated 16 gauge steel
Amplifiers Input Impedance(Channel B RCA):	10 kΩ
Enclosure Finish:	Black textured paint
Enclosure Dimensions (HWD):	32.1" × 17.5" × 15.2" 816 mm × 445 mm × 386 mm
Amplifiers Transducer Protection:	Thermal limiting, excursion limiting
Enclosure Available Accessories:	KW152 cover, KW M10 kit
Enclosure Weight (Net):	64 lb (29 kg)

Product Videos Hide Videos Show Videos

KW Series Powered Loudspeakers - Product Overview

Building on the success of our K Series, the KW Series represe...

Product Description

QSC KW152 15" two-way, 1000W, 60° axisymmetric, active loudspeaker.

Features

15-inch Woofer; 1.75-inch diaphragm compression driver
60° conical DMT coverage
Maximum SPL 133 dB peak
1000 watt Class D power modules in all models (2 x 500 W continuous)
Onboard mixer with two combo XLR and ¼⁻ᶦⁿᶜʰ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
Rugged, texture-painted birch enclosures
Four-position Mic/Line gain (full-range models)
Tour-grade 16 gauge steel grilles
Comfortable ergonomic handles
35 mm pole sockets with Tilt-Direct™
M10 rigging points for suspended installation

Product Specifications

Specifications

Frequency Response (-6 dB):	47 Hz to 18 kHz
Configuration:	15" 2-way trapezoidal
Nominal Coverage (-6 dB):	60° axisymmetric
Maximum SPL:	133 dB peak
Low Frequency Transducer:	15" cone transducer
High Frequency Transducer:	1.75" diaphragm compression driver
Frequency Range (-10 dB):	44 Hz to 20 kHz
Amplifiers Controls:	Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Voltage:	Universal Power Supply
Amplifiers Indicators:	Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
Amplifiers Power Output:	1000 W Class D (500 W LF + 500 W HF) continuous 2000 W peak
Amplifiers Connectors:	Balanced female XLR/1/4" line/mic level input, Balanced female XLR/1/4" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking
Amplifiers Cooling:	On demand, 50 mm variable speed fan
Amplifiers Input Impedance(Channel A XLR / 1/4"):	38 kΩ(Mic gain setting 0 dB/Balanced), 19 kΩ(Mic gain setting 0 dB/Unbalanced), 10 kΩ(Mic gain setting +12 dB/Balanced), 5 kΩ(Mic gain setting +12 dB/Unbalanced), 2.66 kΩ(Mic gain setting +24 dB/Balanced), 1.33 kΩ
Amplifiers AC Power Consumption (1/8 Power):	100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A
Amplifiers AC Power Input:	Universal power supply 100–240 VAC, 50 to 60 Hz
Amplifier Protection:	Thermal limiting, output overcurrent, overtemperature muting, GuardRail
Amplifiers Input Impedance(Channel B XLR / 1/4"):	38 kΩ(balanced), 19 kΩ(unbalanced)
Enclosure Material:	15 mm painted birch plywood
Enclosure Grille:	Black powder coated 16 gauge steel
Amplifiers Input Impedance(Channel B RCA):	10 kΩ
Enclosure Finish:	Black textured paint
Enclosure Dimensions (HWD):	32.1" × 17.5" × 15.2" 816 mm × 445 mm × 386 mm
Amplifiers Transducer Protection:	Thermal limiting, excursion limiting
Enclosure Available Accessories:	KW152 cover, KW M10 kit
Enclosure Weight (Net):	64 lb (29 kg)
