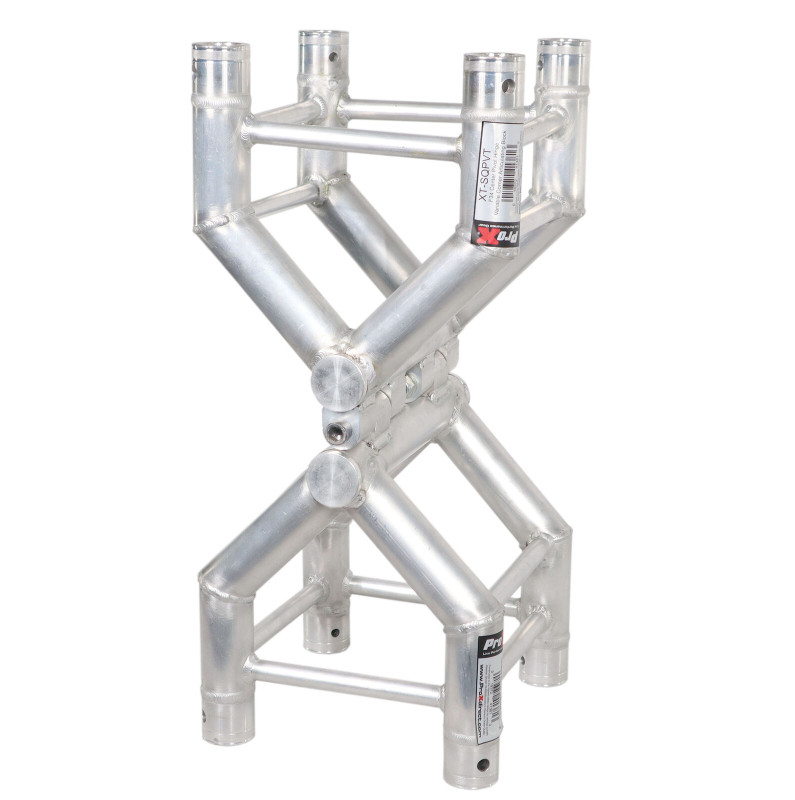

ProX XT-SQPVT F34 Center Pivot Hinge Horizontal Variable Corner Articulating Block
Description
- The ProX XT-SQPVT Center Pivot Hinge horizontal variable corner Articulating Block from the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. It adjusts from 0° to 180° and fits ProX SQ F34 Conical trussing. Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup! This product can provide a universal solution for truss angles.
- The ProX XT-SQPVT adjusts from 0° to 180° for unique truss construction projects. There is a built-in adjustable arm to lock the desired angle between sections of truss for unique builds. The superior construction quality of ProX trussing products guarantees many years of trouble-free use.
- At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of trussing of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.
- Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.
XT-SQ SERIES DIMENSIONS:
-
Height: 11.42in / 290mm
-
Width: 11.42in / 290mm
-
Weight: 21lb per 3.28 ft / 9,5kg per meter
-
Main Tube: 2in / 50mm
-
Wall Thickness: .08in / 2mm
-
Braces: .75in / 20mm
-
Tolerance Free Standard Conical Connector
-
Main tube wall thickness of .08in
- Connecting hardware included - Conical connectors, spigots, cotter pins (Set of 4)
ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.
Shipping Dimensions
-
13.00"L x 13.00"D x 26.50"H
-
Shipping Weight: 17.00 lbs
UPC
- 019372413813
