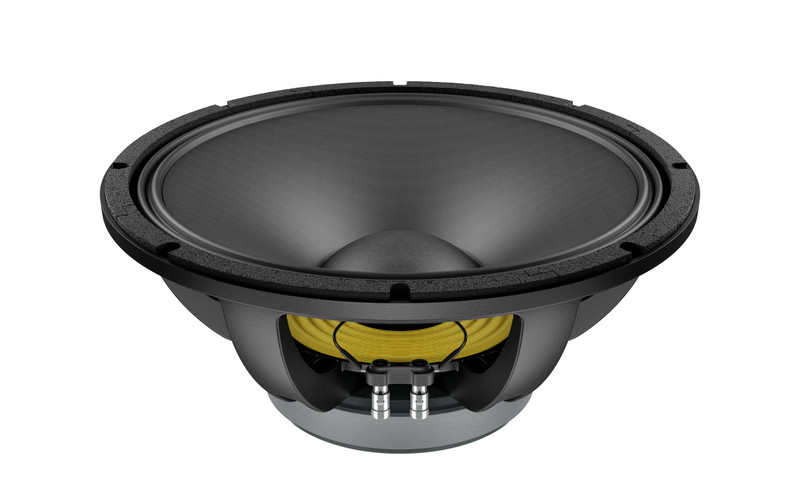

Lavoce WAF153.00 15 Inch Woofer 8 Ohm Ferrite Speaker 1000W Pro
- 3 INCH CCAW VOICE COIL
- 99 dB/SPL SENSITIVITY
- 1000 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
GENERAL SPECIFICATIONS
- Nominal Diameter: 380 mm (15 in)
- Nominal Impedance: 8 ohm
- Minimum Impedance: 5.5 ohm
- Program Power: 1000 W Program power is defined as 3 dB greater than AES Power.
- AES Power Rating: 500 W Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Loudspeaker tested in free air.
- Sensitivity: 99 dB From T/S parameters, measured with Klippel DA LPM module.
- Frequency Range: 40 ÷ 3000 Hz
- Voice Coil Diameter: 75 mm (3 in)
- Chassis Material: ALUMINIUM
- Magnet Material: FERRITE
- Magnet Dimensions: OD x ID x h 190 x 95 x 25 mm (7.48 x 3.74 x 0.98 in)
- Coil Material: CCAW
- Former Material: GLASS FIBER
- Cone Material: WATER RESISTANT TREATED PAPER + WATER PROOF FRONT SIDES TREATMENT
Surround Material: POLYCOTTON - Xmax: 7 mm (0.28 in) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
- Xmech: 12.5 mm (0.49 in) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
- Gap Height: 10 mm (0.39 in)
- Voice Coil Winding Height: 19 mm (0.75 in)
- Driver Displacement Volume: 4.8 l (0.17 ft³)
- Recommended Enclosure: 102 l (3.602 ft³)
- Recommended Tuning: 50 Hz
SMALL SIGNAL PARAMETERS
Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by Klippel LSI measurement.
- DC Resistance (Re): 4.7 ohm
- Diaphragm Area (Sd): 855 cm² (132.525 in²)
- Resonance Frequency (Fs): 43 Hz
- All the specifications subject to change without notice.
- Moving Mass (Mms): 99.2 g (3.499 oz)
- Compliance (Cms): 0.141 mm/N
- Force Factor (BxL): 17.88 N/A
- Mechanical Q-Factor (Qms): 9
- Electrical Q-Factor (Qes): 0.39
- Total Q-Factor (Qts): 0.37
- Equivalent Air Volume (Vas): 146.26 l (5.165 ft³)
- Voice Coil Inductance (Le): 0.91 mH
- Reference Efficiency (Eta 0): 2.78 %
- Efficiency Bandwidth Product (EBP): 110 Hz
SHIPPING INFORMATION
- Net Weight: 9.4 kg (20.723 lb)
- Multipack Quantity: 1
- Multipack size: W x D x H 410 mm x 410 mm x 260 mm (16.1 in x 16.1 in x 10.2 in)
- Multipack Weight: 10.7 kg (23.59 lb)
UPC
- 848864057422
