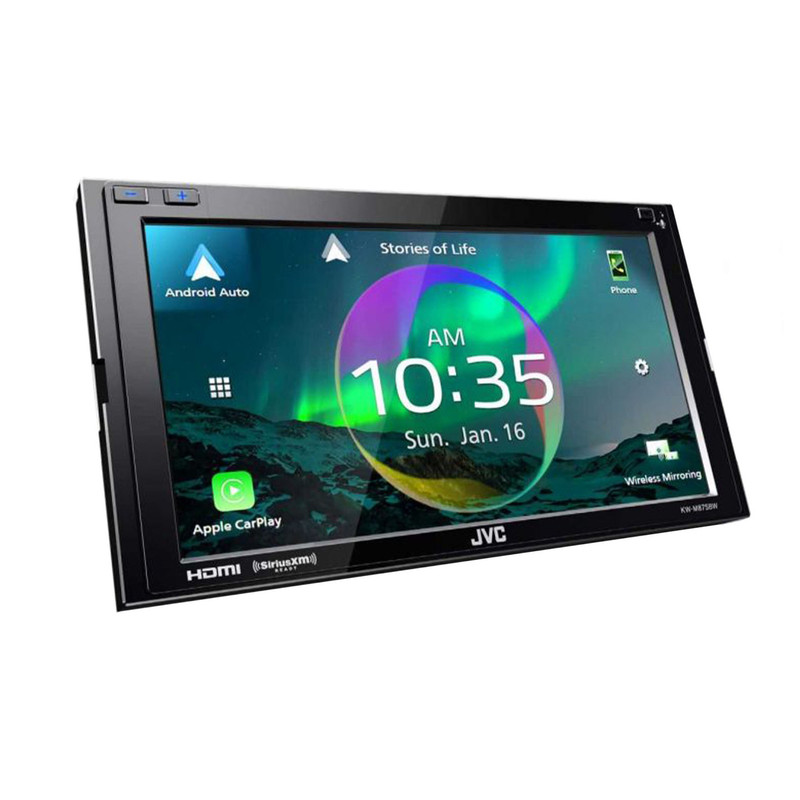

JVC KW-M875BW 6.8" SHORT CHASSIS MULTIMEDIA RECEIVER / WIRELESS ANDROID AUTO
Multimedia Receiver featuring 6.8" Clear Resistive Touch Monitor / Wireless Apple CarPlay / Wireless Android Auto / HDMI Input / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ / USB Type-C
Specification
Monitor
- Screen Size: 6.8" Wide VGA
- Touch Panel: Clear Resistive
- Gesture Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Blue
- Dimmer: Yes
- Multilingual Display: Yes[4]
- Wallpaper Capture: Yes
- Live Wallpaper: Yes
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
- H.264 Compatible: USB
- WMV Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- AVI/MKV Compatible: USB
- JPEG File Playback: USB
- PNG File Playback: USB
- BMP File Playback: USB
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Version 5.0, Wired-Mic included)
- Hands Free Call : Yes (HFP1.7)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Supported Audio Formats: LDAC / AAC / SBC
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android: Yes
Wi-Fi Control
- Built-in Wi-Fi: Yes
Android Control
- Android Auto[2]: Yes (via Wi-Fi or USB)
- Mirroring for Android: Yes (via Wi-Fi or HDMI)
- Android Music Playback: Yes (via Bluetooth(R))
iPod/iPhone Control
- CarPlay[3]: Yes (via Wi-Fi or USB)
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R)
USB
- USB Port: x 1 (Type-C)
- Position: Rear
- USB Power Supply: 5V / 3A (USB type-C Current 3A) or 5V / 1.5A (USB BC1.2)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
Radio Tuner
- SiriusXM Ready: Yes
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
- Auto Memory Entry: Yes
- FM: Frequency Range 87.9 - 107.9MHz
- AM: Frequency Range 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (8Preset + 4user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- High-Resolution Audio: Yes
- K2 Technology: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes
Inputs and Outputs
- AV Input: Video:RCA, Audio:mini-jack (AV-IN or CAM4 switchable)
- Video Out: RCA
- HDMI Terminal: Yes
- Rear view camera Input: Yes
- Front view camera Input: Yes
- 3rd Camera Input: Yes
- Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
General
- iDatalink Maestro Ready: Yes
- USB Extension Cable: x 1 (Type-C)
- USB Type-C to USB Type-A adaptor: Yes
- JVC Portal App: Yes
- Remote Control Application: Yes
- Back Up Memory: Yes
Face Type
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
- Short Chassis: Yes
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
Dimensions (W x H x D)
- Installation Size: 7" x 3-15/16" x 3-3/8" (178 x 100 x 85 mm)
- Weight: 2.9 lbs. (1.3kg) Including Sleeve and Trim plate
- Unit weight in individual package: 1.9kg
UPC
- 046838501142
