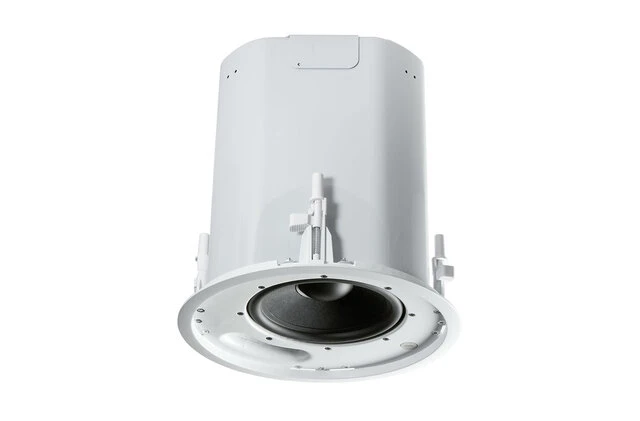

JBL Control 40CS/T 8-Inch In-Ceiling Subwoofer with Crossover
The Control 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.
Features
- Direct radiating, high impact, 8” subwoofer
- Designed to produce powerful bass performance in an in-ceiling loudspeaker
- Built-in passive crossover network
- Enables the Control 40CS/T to be used as part of a subwoofer-satellite system
- High power handling and low distortion
- Perfect for in-ceiling sound systems requiring higher fidelity and low end extension
Specifications
- Frequency Range 32 Hz - 300 Hz
- Power Rating IEC System Long-Term Ratings (low-Z direct) = 200 Watts Continuous Program Power ; 100 Watts Continuous Pink Noise (400W peak), 100 hr
- Sensitivity 95 dB (near corner), 89 dB (center of ceiling)
- Transformer Taps 80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass
- Impedance 8 ohms (in bypass mode)
- Drivers 200 mm (8 in) subwoofer
- Termination Screw-down removable locking clip-in connector
- Satellite Outputs Connectors for 2 or 4 Control 42C satellite speakers
- Included Accessories C-rings, tile rails, paint shield, cutout template, grille
- Maximum SPL (1m) 109 dB (low-impedance, 115 dB peak, center of ceiling) ; 115 dB (low impedance, 121 dB peak near corner) ; 108 dB (70V/100V, center of ceiling) ; 114 dB (70V/100V near corner)
- Input Connectors 6 removeable locking 2-pin connectors with screwdown terminals
- Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan formed steel (included "blind-mount")
- Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
- Optional Accessories MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
- Plenum Usage Yes, backcan included
- Coverage Angle Omnidirectional
Dimensions
- Dimensions (Diameter x Depth) 332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)
- Ceiling Cutout Size 307 mm Diameter (12.1 in) (cardboard cutout template included)
- Weight 8.1 kg (17.9 lbs)
What's in The Box
- 1 x Control 40CS/T - High-Impact In-Ceiling Subwoofer
- 1 x C-ring support backing plate
- 2 x tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
- 1 x Knockout strain relief
- 1 x Cutout template
- 1 x Paint shield
- 1 x Grille
UPC
- 050036904971
