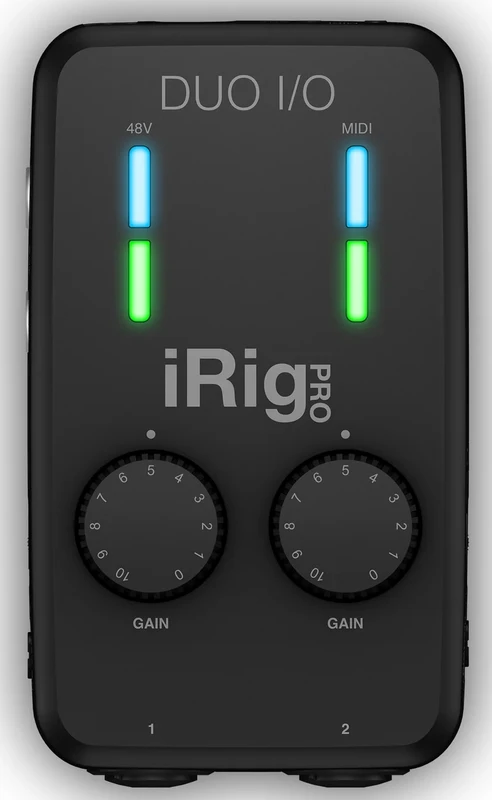

IK Multimedia iRig Pro Duo I/O 2-Channel Audio MIDI Interface
- 2-in/2-out audio and MIDI interface
- Works with iPhone, iPad, Mac and PC
- Combo XLR/TRS inputs with phantom power
- MIDI In/Out
- 24-bit/48 kHz
- Battery or bus powered
Make the world your studio
iRig Pro Duo I/O is a portable 2-in/2-out audio and MIDI interface for recording music, podcasts, video and live streams wherever you go.
Two combo XLR/TRS inputs with Class-A preamps let you connect microphones, guitars, basses and line-level sources, with +48 V phantom power for condenser mics. Balanced outputs, headphone monitoring, direct monitoring and MIDI In/Out provide the connections for a complete mobile setup, while battery, bus or optional DC power keeps you ready to record with iPhone, iPad, Android, Mac or PC.
specifications
Microphone Input
- Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: 3,2 kOhms
- Gain Range: 50 dB
- Phantom Power: +48V ± 4V
- Frequency Response: 20 Hz to 20 kHz (+-1.5dB)
- Input Noise: -103 dB(A), -97 dB RMS
Instrument Input
- Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response: from 2 Hz to 21 kHz (-3dB) Gain @ min; from 5 Hz to 21 kHz (-3dB) Gain @ max
- Input Noise: -104 dB(A) Gain @ min; -102 dB(A) Gain @ max
Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (-3dB)
- Output Dynamic Range: 106 dB(A)
- Output Impedance: 150 Ohms balanced
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz and 48 kHz
- Power: USB bus power, battery power (2xAA - included), or DC power supply (9VDC, from 500mA up, positive
- outside - not included)
- Metering: Multicolor LED
- Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
- Weight: 197.2g/6.96oz (batteries excluded)
- Battery Life: Recording - Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline). Playback -
- Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
- *Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
- **Min load condition is as follows: music playing, phantom power OFF.
Package includes
- iRig Pro Duo universal dual channel Audio-MIDI interface
- Lightning to Mini-DIN connection cable (60cm/23.62")
- USB-C to Mini-DIN connection cable (60cm/23.62")
- USB to Mini-DIN connection cable (60cm/23.62")
- 2x 2.5mm TRS male to MIDI female adapter (10cm/3.9")
- 2 x 1.5V AA Battery
Dimensions
- Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
- Weight: 197.2g/6.96oz (batteries excluded)
Compatibility
iOS Devices
- Made for: iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (6th generation), iPad (5th generation), iPod touch (6th generation).
- Also compatible with all newer iPhone, iPad and iPod touch models.
Computers
- Mac®: Mac OS X 10.6 or later. One free USB port.
- Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed.
Android Devices
- Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
UPC
- 8025813814035
