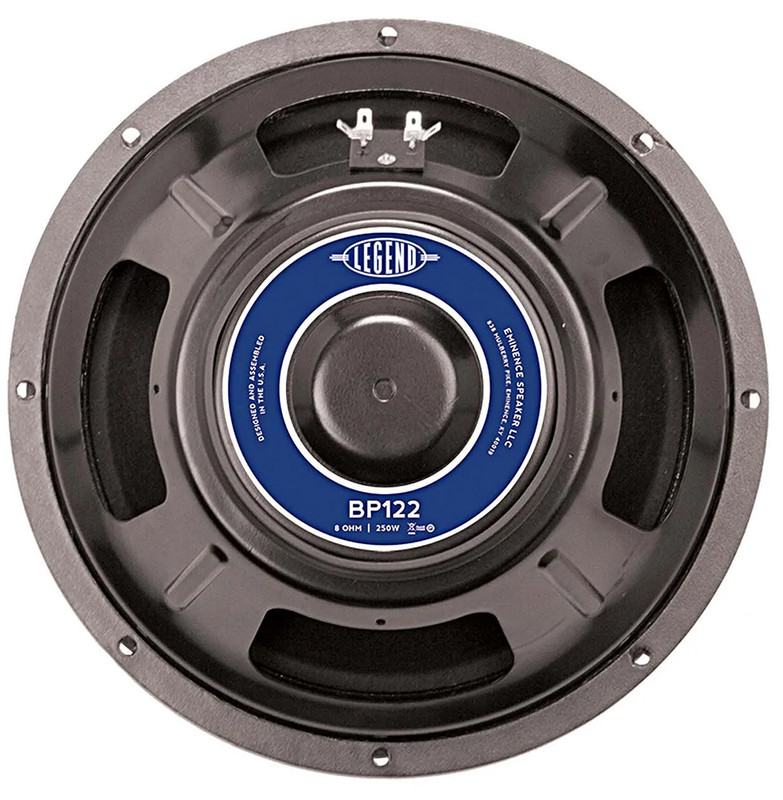

Eminence LEGEND BP 122 12" Bass Guitar Speaker 500 Watts 8-Ohm

(No reviews yet) Write a Review
SKU:
Eminence LEGEND BP 122 T.C.
UPC:
876358003747
Condition:
New
Availability:
Free Shipping
Order before 3PM (EST) Mon-Fri for Same Day Shipping
$139.99

Product Description

Eminence LEGEND BP 122 12" Bass Guitar Speaker 500 Watts 8-Ohm

A 12" bass guitar driver that delivers warm, rich tones and deep bass. A big brother to the popular 10" Legend BP102, this driver is at home in small sealed enclosures and works well in Pro Audio and Home Hi-Fi applications.

SPECIFICATION
Nominal Basket Diameter
  • 12", 305 mm
Nominal Impedance*
  • 8 Ω
Power Rating*
Program Power
  • 500 W
Watts
  • 250 W
Resonance
  • 35 Hz
Usable Frequency Range
  • 35 Hz - 2.3 kHz
Sensitivity*
  • 94.1 dB
Magnet Weight
  • 38 oz.
Gap Height
  • 0.3125", 7.9 mm
Voice Coil Diameter
  • 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
  • 35 Hz
DC Resistance (Re)
  • 5.66 Ω
Coil Inductance (Le)
  • 0.84m H
Mechanical Q (Qms)
  • 9.26
Electromagnetic Q (Qes)
  • 0.57
Total Q (Qts)
  • 0.54
Compliance Equivalent Volume (Vas)
  • 157.4 liters / 5.56 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
  • 330.1 cc
Mechanical Compliance of Suspension (Cms)
  • 0.4 mm/N
BL Product (BL)
  • 10.55 T-M
Diaphragm Mass Inc. Airload (MMs)
  • 50 grams
Efficiency Bandwidth Product (EBP)
  • 62
Maximum Linear Excursion (Xmax)
  • 6.2 mm
Surface Area of Cone (Sd)
  • 532.4 cm2
Maximum Mechanical Limit (Xlim)
  • 12.4 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
  • Acceptable
Vented
  • Acceptable
Driver Volume Displaced
  • 0.071 cu.ft. / 2 liters
Overall Diameter
  • 12.26", 311.4 mm
Baffle Hole Diameter
  • 11.08", 281.4 mm
Front Sealing Gasket
  • Yes
Rear Sealing Gasket
  • Yes
Mounting Holes Diameter
  • 0.25", 6.4mm
Mounting Holes B.C.D.
  • 11.71", 297.4mm
Depth
  • 5.33", 135.3 mm
Net Weight
  • 9 lbs, 4.08 kg
Shipping Weight
  • 11 lbs, 4.99 kgs
MATERIALS OF CONSTRUCTION
Coil Construction
  • Copper voice Coil
Coil Former
  • Polyimide former
Magnet Composition
  • Ferrite magnet
Core Details
  • Non-vented core
Basket Materials
  • Pressed Steel basket
Cone Composition
  • Paper cone
Cone Edge Composition
  • Cloth cone edge
Dust Cap Composition
  • Solid composition felt dust cap
