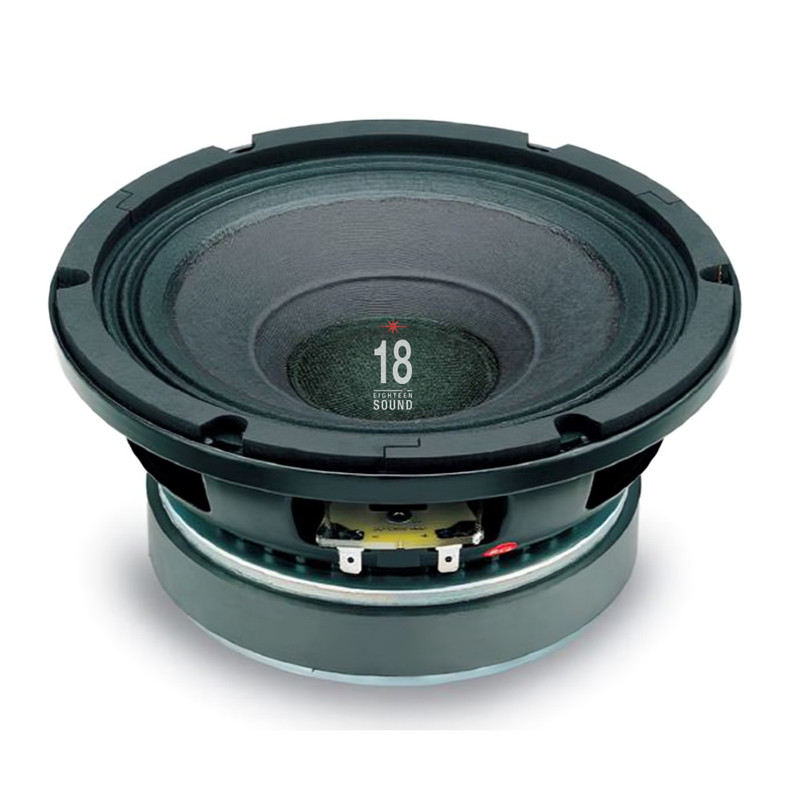

Eighteen Sound 8M400FC 8 Inch Midrange Driver 8 Ohm 250W Professional Pro Audio
The 18 Sound 8M400FC is a high-quality mid-range speaker, engineered for professional audio applications. This 8-inch speaker offers a robust 250W AES power handling capacity and operates at an impedance of 8 Ohms. Designed for superior sound quality, it focuses on mid-frequencies intelligibility. The 8M400FC is versatile for use in both horn and direct radiation, closer or reflex enclosures as small as 3 liters. Its curvilinear cone, crafted from high damping wood pulp, is optimized for linearity within its frequency range. The speaker features a 51 mm Interleaved Sandwich Voice coil (ISV) made on a strong fibreglas former, enhancing force transmission and power handling. The powerful magnet assembly ensures high flux concentration, optimizing the force factor and power handling. This speaker is equipped with a copper ring to linearize the impedance curve, improving heat dissipation and reducing power compression.
Features
- Sensitivity: 100.5 dB SPL 1W/1m
- Power Handling: 250 W AES
- Voice Coil: 51 mm (2 in) Interleaved Sandwich Voice coil (ISV)
- Design: Suitable for high-quality midrange applications
- Cone Material: High damping wood pulp for linearity
- Heat Dissipation: Improved via unique basket design
- Frequency Range: 200 - 9000 Hz
Specifications
- Nominal Diameter: 200 mm (8 inches)
- Impedance: 8 Ohm
- Nominal Power Handling: 250 W AES
- Continuous Power Handling: 320 W
- Peak Power Handling: 650 W
- Sensitivity: 100.5 dB
- Frequency Range: 200 - 9000 Hz
- Voice Coil Diameter: 51 mm (2 inches)
- Voice Coil Material: Aluminum
- Suspension: M-roll, Polycotton
- Cone: Curvilinear, Paper
- Thiele-Small Parameters Fs: 89 Hz
- Recommended Enclosure Volume: 6.0 dm3 (0.21 ft
Mounting Information
- Overall Diameter: 210 mm (8.27 inches)
- Mounting Holes Diameter: 6 mm (0.23 inches)
- Bolt Circle Diameter: 196 mm (7.74 inches)
- Baffle Cutout Diameter: 186.0 mm (7.32 inches)
- Total Depth: 106 mm (4.17 inches)
- Flange and Gasket Thickness: 15 mm (0.61 inches)
- Net Weight: 4.9 kg (10.8 lb)
