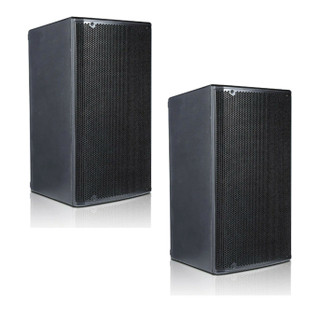

dB Technologies OPERA-12 Active Professional 12" Powered Speaker 1200W Amplified
With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.
Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.
The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
- 1200 W PEAK POWER
- 600 W RMS POWER
- NEWLY DESIGNED ASYMMETRICAL HORN
- ADVANCED DSP WITH FIR FILTERS
- 2 INPUT CHANNELS (MIC-LINE/MIC-INSTR)
- SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2)
- 8 EQ PRESETS
- FRESH FULL GRILLE DESIGN
- STAGE MONITOR USE
- Acoustical data
- Frequency response [-10dB]: 52 - 20.000 Hz
- Frequency response [- 3dB]: 67 - 19.600 Hz
- Max SPL: 129 dB
- HF: 1" exit, 1.4 v.c.
- Type HF: compression driver
- Horizontal directivity: 100° (85° up/120° down)
- Vertical directivity: 85° (+ 25°/-60°)
- Horn: asymmetrical horn
- LF: 12", 2" v.c.
- Amp technology: amp SMPS power supply dual range
- Amp class: class D
- RMS power: 600W
- Peak power: 1200W
- Controller: DSP 56 bit
- AD/DA converter: 24 bit/48 KHz
- System presets: rotary encoder (8 Presets)
- Cross over frequency: 2000 Hz
- Limiter: peak, RMS, thermal
- Advanced DSP functions: linear phase FIR filters
- Signal input 1 combo (XLR/jack 6.3 mm) mic/line, 1 combo (XLR/jack 6.3 mm) mic/inst
- Signal output: 1 XLR male (ch1 link/mix out), selectable
- Housing: polyporpylene PP
- Grille: full grille
- Handles: 1 on left Side, 1 on Top
- Rigging points: 2XM10 on top + 1x M10 on back
- Pole mount: D36 mm
- Angles up: monitor use 45°
- Dimensions: 13.78" x 25.28" x 13.74" (W x H x D)
- Weight: 31.53 lbs.
