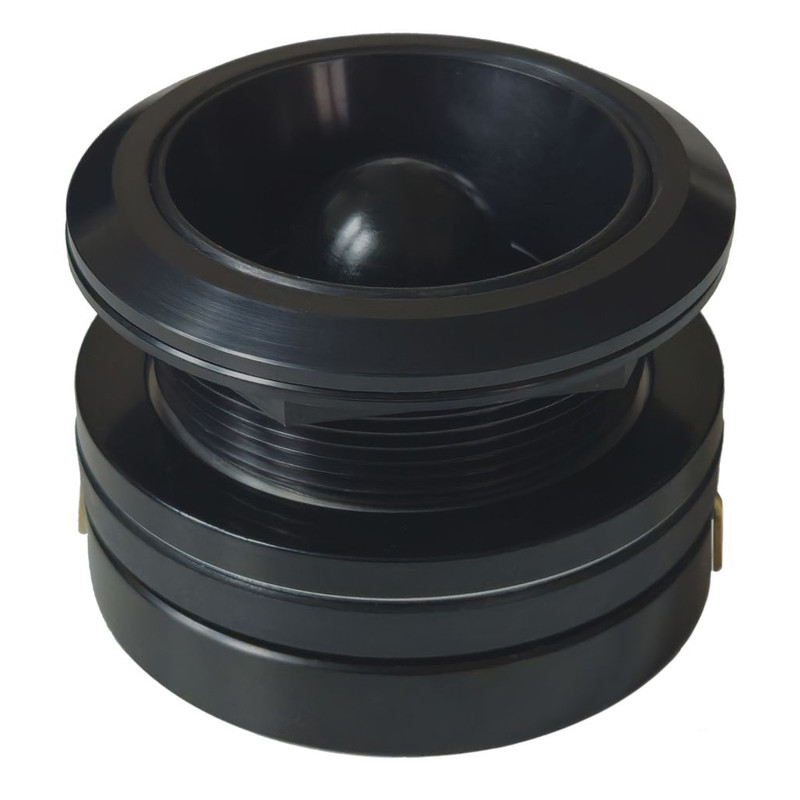

Ciare CTB25 1" Tweeter 4Ω Aluminium Diaphragm 250W High SPL Audio Speaker
Specifications
- Nominal Diameter : 26 mm (1 in)
- Nominal Power Handling : 150 W
- Sensitivity : 107 dB
- Recommended Crossover : 4 kHz
- Diaphragm Material : Aluminium
- Nominal Impedance : 4 Ω
- Continuous Power Handling : 250 W
- Frequency Range : 4 kHz - 20 kHz
- Voice Coil Diameter : 26 mm (1 in)
Parameters
- Fs : 2100 Hz
- Re : 3.2 Ω
Design
- Magnet Material : Neodymium
- Connection Type : Faston
Mounting and Shipping Info
- Overall Diameter : 58 mm (2.28 in)
- Depth : 41 mm (1.61 in)
- Net Weight : 0.35 kg (0.77 lb)
- Baffle Cutout Diameter : 44 mm (1.73 in)
- Flange and Gasket Thickness : 4.5 mm (0.18 in)
- Shipping Units : 12 pcs
