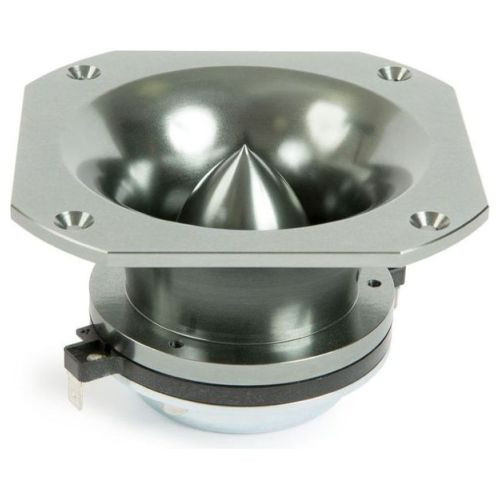

CIARE CT440 1.75" Horn Tweeter With Faston Connection Type 500W 8Ω
- Diaphragm Material :Mylar
- Voice Coil Diameter :44 mm 1.75 in
- Continuous Power Handling :500 W
Specifications
- Nominal Diameter : 44 mm (1.75 in)
- Nominal Power Handling: 250 W
- Sensitivity: 110 dB
- Recommended Crossover: 2 kHz
- Winding Material: Aluminum
- Flux Density: 1.65 T
- Nominal Impedance: 8 Ω
- Continuous Power Handling: 500 W
- Frequency Range: 2 kHz - 20 kHz
- Voice Coil Diameter: 44 mm (1.75 in)
- Winding Depth: 2.7 mm (0.11 in) Impedance curve is measured in free air conditions at small signals
- Diaphragm Material: Mylar
Parameters
- Fs: 1400 Hz
- Re: 4.5 Ω
Design
- Cone Shape: Planar
- Cone Material: Mylar
- Connection Type: Faston
Mounting and Shipping Info
- Overall Diameter:112 mm
- Baffle Cutout Diameter: 95 mm (3.74 in)
- Flange and Gasket Thickness: 4 mm (0.16 in)
- Shipping Units: 6 pcs
- Bolt Quantity: 4 pcs
- Bolt Circle Diameter: 116 mm (4.57 in)
- Depth: 68 mm (2.68 in)
- Net Weight: 0.8 kg (1.76 lb)
- Basket Material: Aluminum
- Bolt Diameter: 4.5 mm (0.18 in)
NOTES
- Nominal power is determined according to AES2-1984 (r2003) standard.
- Program Power is defined as 3 dB greater than the Nominal rating
- Sensitivity represents the averaged value of acoustic output as measured on the forward central axis of cone, at distance 1m, when connected to 2,83V sine wave test sign
- Frequency range is given as the band of frequencies delineated by the lower and upper limits where the output level drops by 10 dB below the rated sensitivity in half space environment.
- Linear Math. Xmax is calculated as (Hvc-Hg)/2 + Hg/4 where Hvc is the coil depth and Hg is the gapdepth.
- Frequency response curve is measured on IEC Baffle.
- Impedance curve is measured in free air conditions at small signals
UPC
- 848864073002
