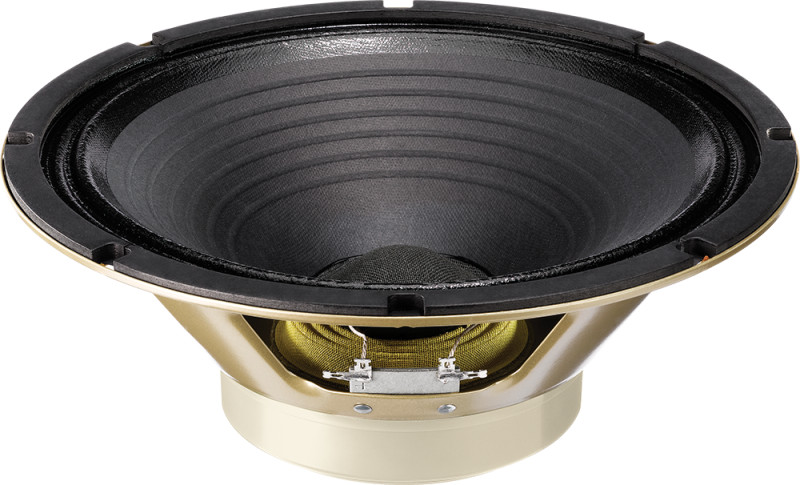

Celestion G10 Creamback 10in 8Ω Guitar Speaker Ceramic Magnet 45W Hand-
10-inch guitar speaker with ceramic magnet and 1.75-inch voice coil
The new G10 Creamback packs everything guitar players love about Creamback speakers into a 10-inch format. Hand-built in the UK using the same production methods and materials developed for the 12-inch models, the G10 Creamback uses a ceramic magnet and a 1.75-inch voice coil to deliver 45-watt power handling. With all the punch and dynamics typical of a 10 its overall tone is warm expressive detailed and well-balanced.
Specifications
- Nominal diameter : 254mm / 10in
- Power rating : 45W
- Rated impedance : 8Ω or 16Ω
- Sensitivity : 96dB
- Chassis type : Pressed steel
- Magnet type : Ceramic
- Magnet weight : 0.56kg / 20oz
- Voice coil diameter : 1.75in / 44mm
- Voice coil material : Round copper
- Frequency range : 95-5500Hz
- Resonance frequency, Fs : 98Hz
- DC resistance, Re : 6.4Ω or 12.05Ω
Mounting Information
- Cut-out diameter : 229mm / 9.0in
- Diameter : 254mm / 10.0in
- Magnet structure diameter : 124mm / 4.9in
- Mounting hole dimensions :6.5x11mm / 0.25x0.43in
- Mounting hole PCD : 245mm / 9.6in
- Number of mounting holes : 8
- Chassis depth (inc gasket) : 73mm / 2.86in
- Magnet depth : 29mm / 1.14in
- Overall depth : 102mm / 4.0in
- Unit weight : 1.6kg / 3.5lb
UPC
- 7 39894638005
