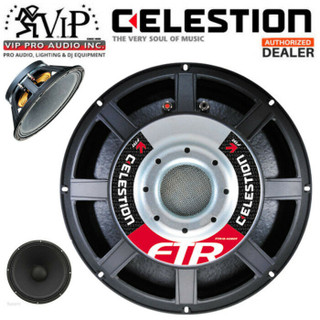

Celestion FTR15-3070C 15" Bass / Mid Ferrite Magnet Woofer 800 Watts / 8-Ohms

(No reviews yet) Write a Review
SKU:
Celestion FTR15-3070C T.C.
UPC:
739894538756
Condition:
New
Availability:
Free Shipping
Type:
Midbass
Type:
Subwoofer
RMS Power:
400 Watts
Ohms:
8 Ohms
Magnet:
Ferrite
Size:
15 Inch
Cone Material:
Weather Protected
Qty.:
1 Speaker
Order before 3PM (EST) Mon-Fri for Same Day Shipping
$189.00
Make An Offer

Product Description

Celestion 15-inch, Cast Aluminium Chassis, Bass / Mid Ferrite Magnet Speaker

  • Full gap flux saturation for increased Bl and reduced distortion

  • Glass loaded paper cone with weather-resistant impregnation

  • Airflow vented magnet assembly for dynamic heat dispersion

Product Specifications

Nominal Diameter
  • 15"
Power Handling (RMS)
  • 400 Watts
Power Handling (MAX)
  • 800 Watts
Impedance
Frequency Response
  • 40 to 4,000Hz
Sensitivity
  • 99dB 2.83V/1m
Voice Coil Diameter
  • 3"

Thiele-Small Parameters

Resonant Frequency (Fs)
  • 40Hz
DC Resistance (Re)
  • 6.5Ω
Voice Coil Inductance (Le)
  • 0.59mH
Mechanical Q (Qms)
  • 7.1
Electromagnetic Q (Qes)
  • 0.38
Total Q (Qts)
  • 0.36
Compliance Equivalent Volume (Vas)
  • 7.34ft³
BL Product (BL)
  • 18.7T·m
Maximum Linear Excursion (Xmax)
  • 10mm

Materials of Construction

Cone Material
  • Paper / Glass Fiber
Surround Material
  • Cloth
Voice Coil Wire Material
  • Copper
Voice Coil Former
  • Fiberglass
Basket / Frame Material
  • Cast Aluminum
Magnet Material
  • Ferrite

Mounting Information

Overall Outside Diameter
  • 15.16"
Baffle Cutout Diameter
  • 13.82"
Depth
  • 6.22"
# Mounting Holes
  • 8
