PRV D4500Ph-Nd 2" Exit Pro Audio Phenolic Neodymium Compressiom Driver 500 Watts

Need More Vocal Output? Why the PRV D4500Ph-Nd 2" Compression Driver Stands Out

When a high-output audio system has plenty of low-end power but vocals and midrange detail struggle to keep up, the right compression driver can make a meaningful difference. The PRV D4500Ph-Nd 2" compression driver is designed specifically around that challenge, combining a phenolic diaphragm, large voice coil, high sensitivity, and a neodymium motor for demanding audio applications.

For builders working on high-output systems, especially car audio SPL and 3-way configurations, it offers a purpose-built approach to stronger vocal reproduction without relying on a bulky ferrite motor.

What Is the PRV D4500Ph-Nd?

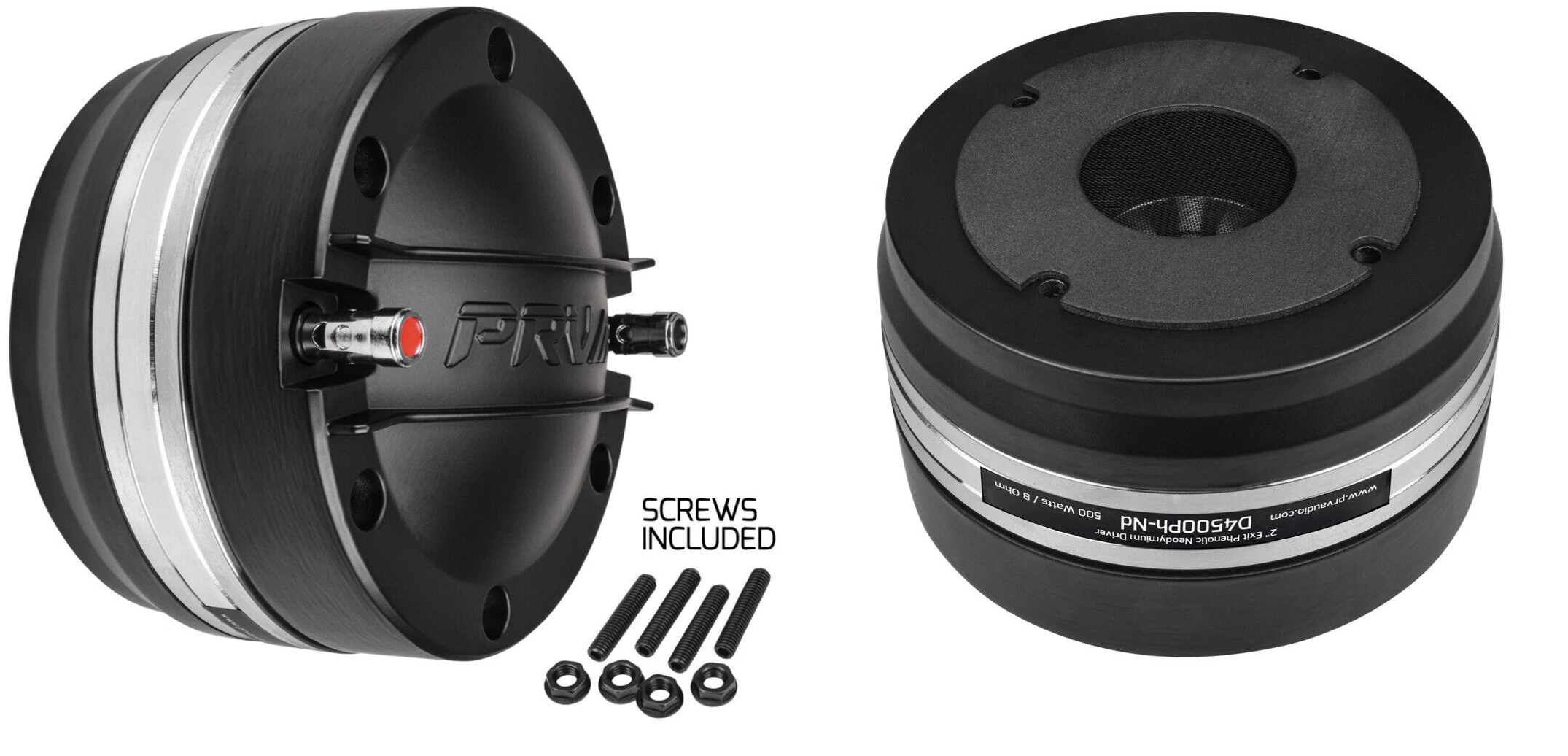

The PRV D4500Ph-Nd is a 2-inch exit midrange compression driver with an 8-ohm impedance, 4-inch voice coil, phenolic diaphragm, and neodymium magnet. Its published frequency response at -10 dB is 450 Hz to 7,000 Hz, giving it a range suited to the important vocal and midrange portion of a system.

One of its biggest advantages is its 500-watt continuous program power rating, while its nominal power handling is 250 watts and maximum peak power is 1,000 watts. These specifications give system builders useful headroom when designing high-output setups.

Key Features and Benefits

• 2-inch exit: The larger throat format makes the D4500Ph-Nd suitable for compatible horn-based applications where substantial midrange output is required.
• Phenolic diaphragm: PRV designed this diaphragm technology for vocal reproduction and natural response through the vocal midrange.
• 4-inch voice coil: The large voice coil supports the driver's high power-handling capability and uses CCAW wire with a Kapton former.
• High sensitivity: The driver is rated at 110 dB sensitivity at 2.00V/1m, helping it produce substantial output from relatively modest electrical input.
• Neodymium motor: The neodymium magnet structure provides a more compact and lighter design than the ferrite D4500Ph, which can help when space and weight matter.
• Aluminum phase plug: The precision-machined phase plug is designed to improve voice-coil heat dissipation and support high output.

These are genuine strengths of the design: high sensitivity, substantial power capability, a large voice coil, and a compact neodymium motor make the driver particularly interesting for demanding vocal-focused systems.

Real-World Applications

PRV specifically identifies the D4500Ph-Nd for extreme car audio competitions and vocal reinforcement in 3-way systems. That makes it especially relevant to builders who need their midrange section to remain competitive with powerful low-frequency speakers.

It can also make sense for custom high-output audio builds where vocal presence is a priority. The driver is designed for horn installation, and PRV specifies compatibility with its WGP22-50 horns for front-mount installation.

For DJs, live performers, event systems, churches, and venues, however, the important consideration is not simply the wattage. The D4500Ph-Nd is a specialized compression driver, so the complete horn, crossover, amplifier, enclosure, and DSP design should all be considered together.

What to Consider Before Buying

System integration matters. PRV recommends a 600 Hz high-pass crossover at 12 dB per octave for full power handling. The manufacturer also specifies 550 Hz at 18 dB per octave in its alternate recommended configuration.

Check the available mounting space as well. The driver has a 4.43-inch mounting depth, a 4-inch M6 mounting bolt circle, and weighs approximately 9.59 pounds.

For more options, explore VIP Pro Audio's professional drivers or browse the PRV Audio collection.

Why Buy from VIP Pro Audio?

VIP Pro Audio Inc. gives U.S. audio buyers access to professional audio, DJ, lighting, and event-production equipment in one place. For builders comparing compression drivers and other system components, its product selection makes it easier to explore equipment for specialized setups.

Conclusion

The PRV D4500Ph-Nd 2" compression driver is built for buyers who need serious vocal and midrange output in a high-output system. Its phenolic diaphragm, 4-inch voice coil, 110 dB sensitivity, 500-watt continuous program rating, and compact neodymium motor make it a compelling option for appropriately designed 3-way and competition-oriented systems.

If your current system needs stronger vocal presence and you are planning the crossover and horn integration carefully, explore the PRV D4500Ph-Nd at VIP Pro Audio and see whether it fits your build.
