Need More Vocal Output? Meet the PRV D4500Ph Trio Midrange Driver

When a high-output audio system needs stronger vocal presence, the midrange section deserves serious attention. The PRV D4500Ph Trio midrange driver is designed specifically for vocal reproduction, combining a 2-inch exit, 4-inch voice coil, phenolic diaphragm, and high sensitivity in a format intended for demanding audio systems.

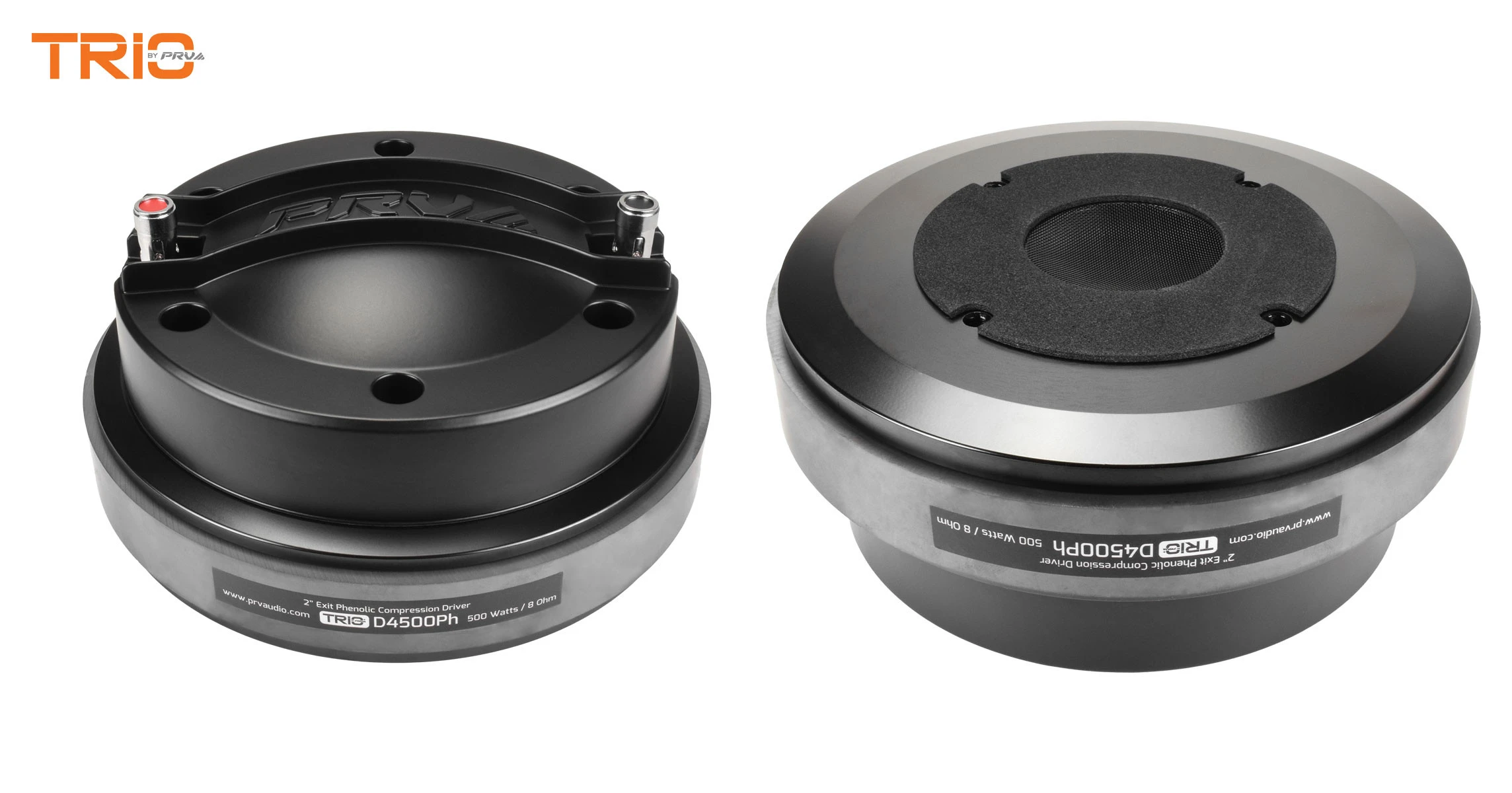

The 2x PRV Audio D4500Ph Trio package gives system builders a matched pair of these 8-ohm compression drivers for applications including multi-way PA systems, stage monitors, side fills, and high-SPL car audio.

What Is the PRV D4500Ph Trio Midrange Driver?

The D4500Ph Trio is a 2-inch exit phenolic compression driver built around a 4-inch voice coil and ferrite motor. PRV specifies a 108 dB sensitivity and a frequency response of 450 Hz to 6,000 Hz at -10 dB. Its phenolic diaphragm is designed for vocal reproduction and low-midrange support.

For buyers building or upgrading a multi-way system, that combination is important because the driver is specifically positioned to handle the vocal-focused portion of the system rather than trying to cover the entire audio spectrum.

Key Features That Matter in a Real System

4-Inch Voice Coil and 500-Watt Continuous Program Power

The large 4-inch voice coil is rated for 500 watts continuous program power, with 250 watts nominal power handling and 1,000 watts peak power listed in the specifications. That gives system designers substantial power-handling capability for a driver intended for high-output applications.

108 dB Sensitivity

With a listed sensitivity of 108 dB at 2.83V/1m, the D4500Ph Trio is built for high-output audio systems. This makes its efficiency one of the standout characteristics for system builders working with PA or SPL-oriented configurations.

Phenolic Diaphragm

The phenolic diaphragm is designed for vocal reproduction and natural response throughout the vocal range. PRV specifies a 450–6,000 Hz frequency response at -10 dB, making the driver suitable for low-midrange and vocal reinforcement duties.

Precision Aluminum Phase Plug

Another useful design detail is the injected and machined aluminum phase plug, which PRV states is designed to improve voice-coil heat dissipation and support high output levels.

Where Can You Use the D4500Ph Trio?

PRV specifically recommends this driver for:

• Multi-way PA systems where additional midrange support is required
• Stage monitors for vocal-focused reinforcement
• Side-fill systems supporting larger performance setups
• High-SPL car audio systems, including vocal reinforcement in 3-way configurations

For DJs, live performers, event production teams, churches, and touring systems, the key consideration is whether the existing cabinet and crossover design are appropriate for this driver. It is not simply a matter of adding a powerful driver; the driver needs to be integrated correctly into the overall system.

What to Consider Before Buying

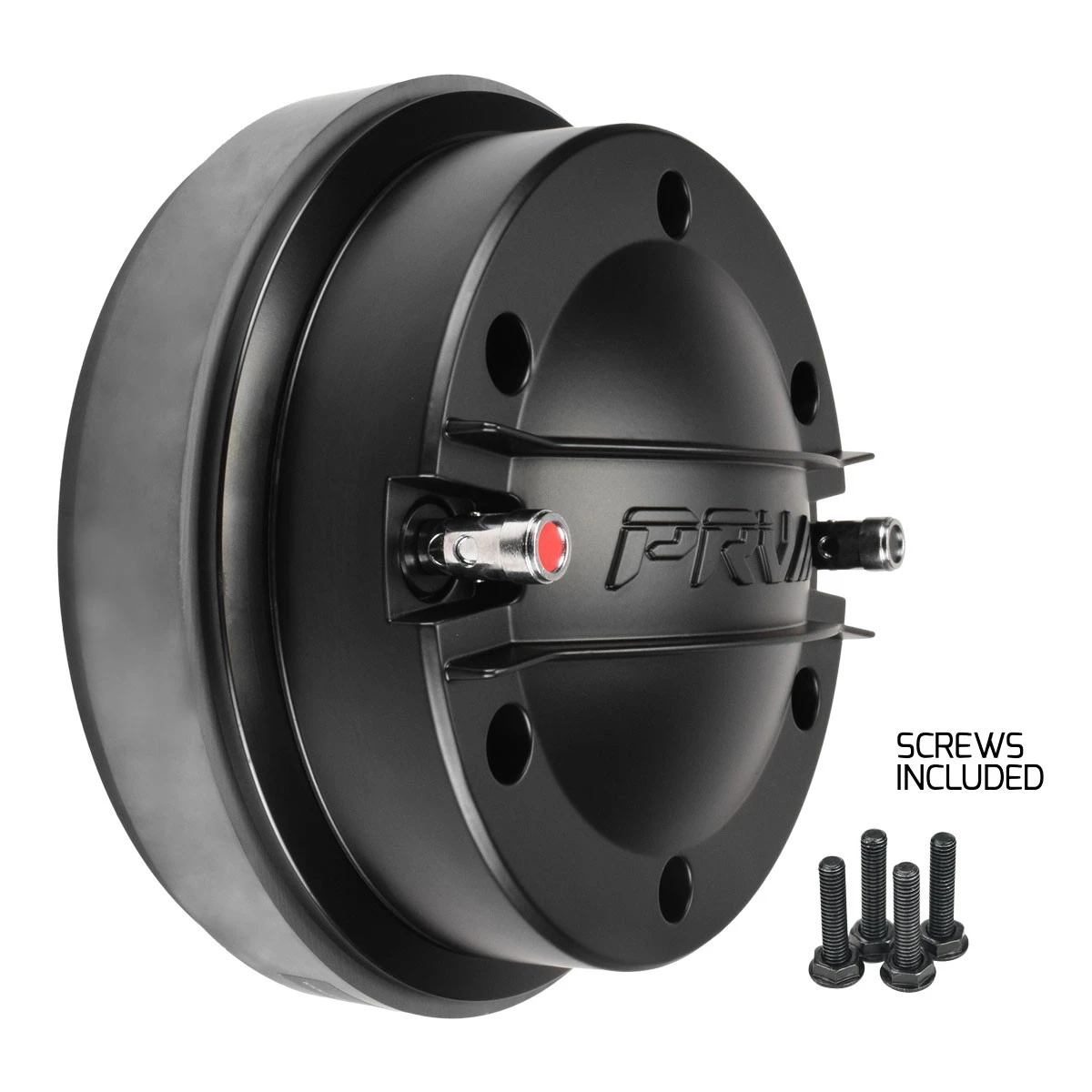

The D4500Ph Trio is an 8-ohm, bolt-on driver with a 2-inch throat. Its dimensions include a 7.48-inch overall diameter and 3.94-inch overall depth, so physical mounting space should be checked before installation.

Crossover configuration is equally important. PRV specifies a recommended high-pass crossover of 600 Hz at 12 dB per octave for full power handling and also lists 550 Hz at 18 dB per octave. When using the driver at its stated power-handling capability, follow the manufacturer's recommended filtering requirements.

Why Buy from VIP Pro Audio?

VIP Pro Audio Inc. provides access to professional audio, DJ, lighting, and event-production equipment for customers building systems for live performance and production applications. The PRV Audio D4500Ph Trio is also listed within VIP Pro Audio's professional audio driver selection.

If you're comparing compression drivers or planning a high-output multi-way system, explore the PRV Audio collection and the professional audio drivers category to see how this model fits alongside other system components.

Conclusion

The PRV D4500Ph Trio midrange driver stands out for its 4-inch voice coil, 108 dB sensitivity, phenolic diaphragm, 8-ohm impedance, and stated 450–6,000 Hz response. For system builders who need dedicated vocal and low-midrange support in a multi-way PA, stage-monitor, side-fill, or high-SPL car audio setup, its specifications make it a serious option to consider.

Explore the 2x PRV Audio D4500Ph Trio midrange driver at VIP Pro Audio and evaluate whether its specifications match your system design.
