Is Your HF Driver Holding Back Your Speaker? Meet the Eminence PSD 2013S-8

When a professional speaker starts sounding less defined in the high frequencies, replacing the entire cabinet may not always be the first thing to consider. The right Eminence PSD 2013S-8 high-frequency driver can provide a practical option for speaker repair or an upgrade when the existing HF component needs attention.

Designed with a 1-inch throat, titanium diaphragm, 85-watt AES power rating, and 8-ohm impedance, the PSD 2013S-8 is built for professional audio applications where a dedicated high-frequency compression driver is required.

What Is the Eminence PSD 2013S-8?

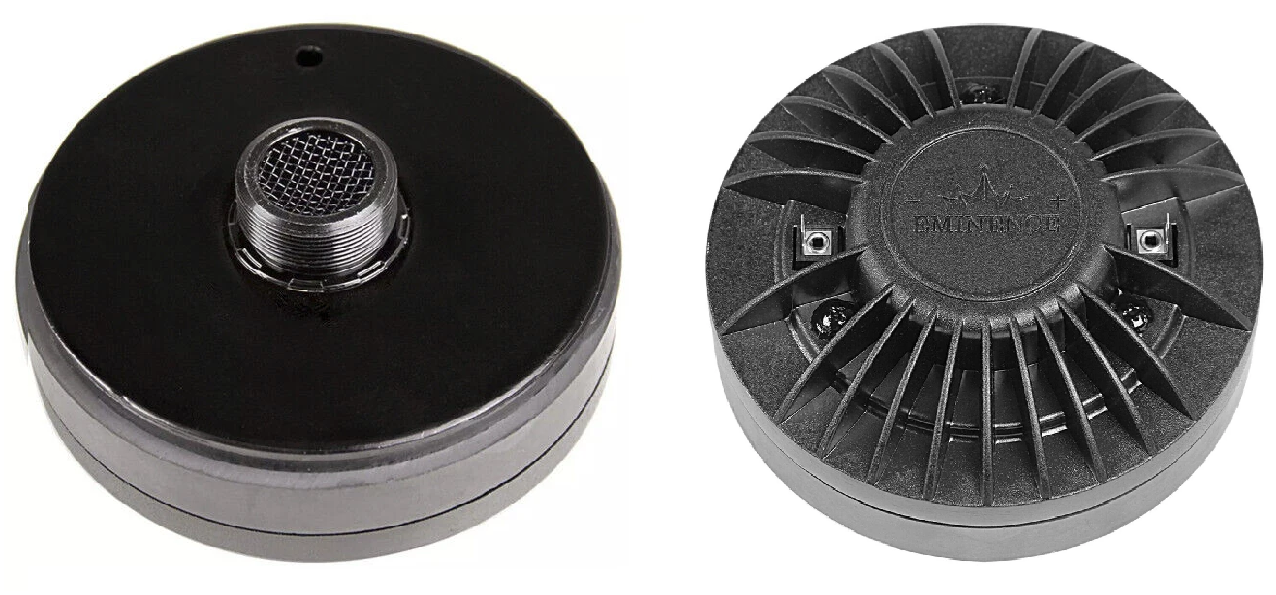

The Eminence PSD 2013S-8 is a screw-on high-frequency compression driver designed for use with compatible horns and professional speaker systems.

Its 1-inch throat size provides a standard format for compatible high-frequency applications, while the titanium diaphragm is engineered for operation across its published usable frequency range of 1.5 kHz to 20 kHz. The driver carries an 85W AES power rating and an 8-ohm nominal impedance.

One particularly useful detail is its 1-3/8-inch 18 UNEF external mounting thread, which is important when determining whether the driver matches an existing horn or speaker assembly.

Key Features and Benefits

1-Inch Throat and Screw-On Design

The 1-inch throat is suited to compatible professional speaker horns, while the screw-on mounting format can make it practical for appropriate replacement applications.

Real-world benefit: Before purchasing, users can compare the existing driver's mounting thread and system specifications rather than replacing an entire speaker cabinet.

Titanium Diaphragm

The PSD 2013S-8 uses a titanium diaphragm, a verified construction feature of the driver.

Why it matters: The diaphragm is the component responsible for moving air to reproduce the driver's high-frequency output. For technicians and speaker builders, the material is an important part of evaluating an HF driver.

85W AES Power Rating

With an 85W AES power rating, the driver is designed for professional audio applications within its specified operating conditions.

1.5 kHz–20 kHz Usable Frequency Range

The published usable frequency range extends from 1.5 kHz to 20 kHz. Eminence specifies a recommended crossover of 12 dB/octave at 1.5 kHz.

This makes crossover configuration an important part of installing the driver correctly.

Where Can the PSD 2013S-8 Be Used?

The Eminence PSD 2013S-8 high-frequency driver can be relevant for professional speaker repair, replacement, and compatible speaker-building projects.

Potential applications include:

• DJ and mobile sound systems
• Live performance speaker cabinets
• Event-production systems
• Venue sound reinforcement
• Church audio systems
• Touring and portable PA setups
• Speaker repair and upgrade projects

The key consideration is compatibility. The driver should be matched with a suitable horn, crossover arrangement, impedance, and overall speaker design rather than treated as a universal replacement.

What to Consider Before Buying

Check the specifications of your existing system before ordering. The PSD 2013S-8 is an 8-ohm version with a 1-3/8-inch 18 UNEF screw-on mounting thread.

Eminence also specifies a 1-inch throat, 2-inch voice coil diameter, 5.25-inch overall diameter, and 2.3-inch depth.

For crossover planning, follow the manufacturer's published recommendation rather than assuming an existing crossover will automatically be suitable.

Why Consider VIP Pro Audio?

For DJs, musicians, installers, venues, and audio technicians, choosing speaker components is about matching specifications to the actual system. VIP Pro Audio Inc. provides access to professional audio, DJ, lighting, and event-production equipment for customers building, repairing, or upgrading their setups.

You can explore the Eminence PSD 2013S-8 1-inch high-frequency screw-on titanium driver and browse the Eminence product collection to compare compatible audio components.

Conclusion

The Eminence PSD 2013S-8 high-frequency driver combines a 1-inch throat, titanium diaphragm, 85W AES power rating, 8-ohm impedance, and a 1.5 kHz–20 kHz usable frequency range in a screw-on format.

For a compatible speaker system that needs a replacement or a carefully matched HF driver, its published specifications give buyers a clear starting point for evaluating fit and application.

Explore the Eminence PSD 2013S-8 at VIP Pro Audio Inc. and determine whether its specifications match the requirements of your speaker system.
