Building a High-Output 3-Way Speaker? Meet the PRV Audio 10MR1000 PRO

If your speaker system has plenty of bass but vocals, percussion, and midrange detail are not coming through the way you want, the problem may be the midrange driver. The PRV Audio 10MR1000 PRO is designed specifically for high-output midrange applications, combining a 10-inch format, 3-inch voice coil, 100 dB sensitivity, and 1000-watt continuous program power.

For DJs, live sound professionals, custom speaker builders, and high-output audio enthusiasts, that combination makes this PRV Audio midrange speaker worth considering when designing or upgrading a serious speaker system.

What Is the PRV Audio 10MR1000 PRO?

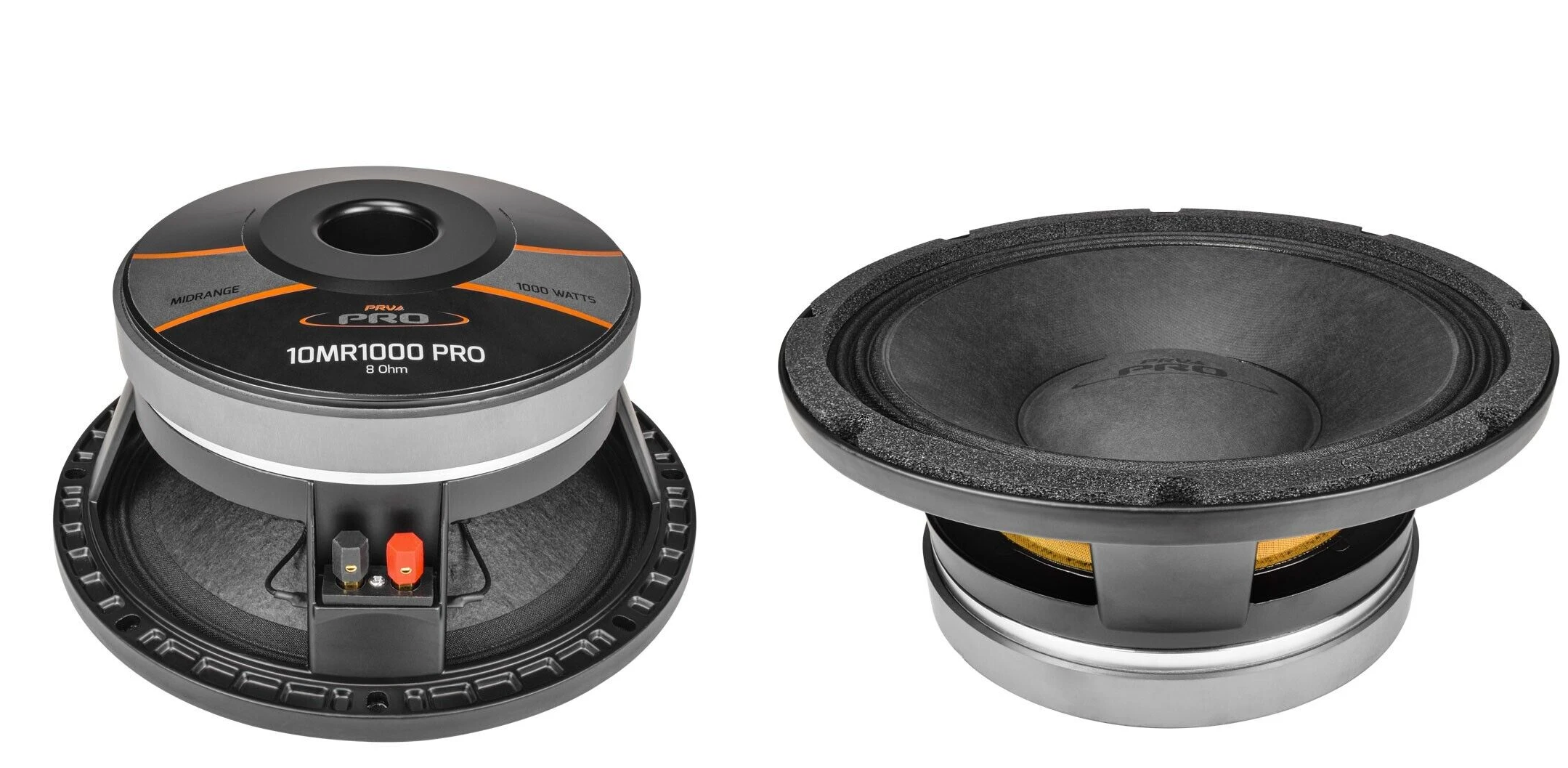

The PRV Audio 10MR1000 PRO is a 10-inch professional midrange loudspeaker with an 8-ohm nominal impedance. PRV Audio specifies it for small sealed, horn-loaded, and vented enclosures and lists applications including professional sound reinforcement, live sound, high-output home audio, and high-SPL car audio.

It is also designed to work particularly well in 3-way speaker systems, where a dedicated midrange driver handles important vocal and instrument frequencies between the low- and high-frequency sections.

That makes it more than simply a replacement speaker—it can be a useful component when you're building a speaker system around clearly defined frequency ranges.

Key Features That Matter

3-Inch Voice Coil and 1000-Watt Program Power

The 10MR1000 PRO uses a 3-inch inside/outside wound copper voice coil on a glass-fiber former. Its rated continuous program power is 1000 watts, with 500 watts listed as nominal power handling and 2000 watts as maximum peak power.

Why it matters: The larger voice coil and substantial power specifications make the driver suitable for systems designed around high-output midrange reproduction.

100 dB Sensitivity

With a specified sensitivity of 100 dB at 2.83V/1m, the driver is designed for high efficiency.

For a professional sound system, that can be particularly useful when the goal is to produce strong midrange output while building the rest of the system around appropriately matched components.

Premium Paper Cone and Cloth Surround

PRV Audio specifies a paper cone and cloth surround, designed for clarity, smooth response, and linear excursion at high power levels. The manufacturer also highlights smooth vocals and defined midbass tones.

Die-Cast Aluminum Frame

The driver features a die-cast aluminum frame, providing a rigid structural platform for the speaker assembly. PRV Audio also specifies under-spider and rear-periphery venting intended to help keep the voice coil cool during extended playing sessions.

Where Can You Use the PRV Audio 10MR1000 PRO?

This 10-inch midrange speaker can make sense in a range of high-output applications, including:

• DJ and mobile sound systems
• Live performance speaker cabinets
• Professional sound reinforcement
• High-output home audio builds
• High-SPL car audio systems
• Custom 3-way speaker projects
• Small sealed, horn-loaded, or vented enclosures

Its specified frequency response is 75–6,000 Hz, while PRV Audio recommends a 150 Hz high-pass crossover with a 12 dB-per-octave slope for full power handling.

That crossover information is important when planning the complete system. The driver should be integrated with the appropriate low- and high-frequency components rather than treated as a full-range speaker.

What to Consider Before Buying

Before choosing the PRV Audio 10MR1000 PRO, check your enclosure dimensions, amplifier requirements, impedance, crossover design, and available mounting space.

The driver has an 8-ohm impedance, a 9.13-inch front-mount baffle cutout, 4.31-inch mounting depth, and weighs approximately 15.65 pounds.

For builders comparing professional raw speakers and midrange drivers, these physical specifications are just as important as power handling.

Why Buy from VIP Pro Audio?

VIP Pro Audio Inc. offers professional audio equipment for DJs, musicians, venues, event professionals, installers, and audio enthusiasts. Its selection includes PRV Audio products, raw speakers, drivers, live sound equipment, DJ gear, lighting, and event-production equipment.

If you're planning a custom speaker build or upgrading an existing system, VIP Pro Audio provides a convenient place to explore the PRV Audio 10MR1000 PRO alongside other professional audio components.

Conclusion

The PRV Audio 10MR1000 PRO brings together a 10-inch design, 3-inch copper voice coil, 100 dB sensitivity, 1000-watt continuous program power, and die-cast aluminum frame in a professional midrange driver designed for high-output applications.

If your next project requires a dedicated midrange component for a 3-way system, live sound setup, professional speaker cabinet, or high-output audio build, this PRV Audio model deserves a closer look.

Explore the PRV Audio 10MR1000 PRO at VIP Pro Audio and see if it fits your next speaker project.
