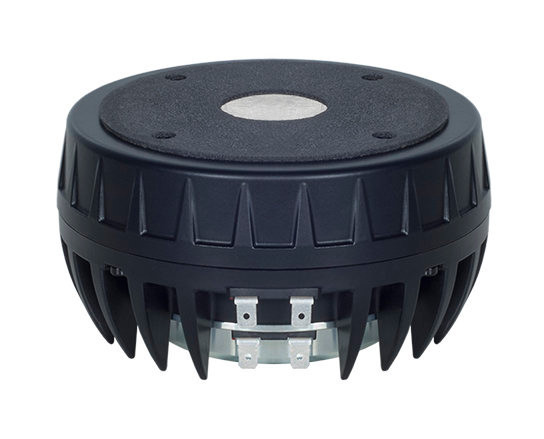

B&C Speakers DCX464-16 Coaxial Compression Driver 1.4 Inch 16 Ohm Neodymium

B&C Speakers DCX464-16 Coaxial Compression Driver 1.4 Inch 16 Ohm Neodymium

The DCX464-16 coaxial ring radiator, designed from scratch to advance the state of the art. The DCX464’s midrange diaphragm covers 300Hz – 5.5kHz with 112.7 dB sensitivity, and its 100mm voice coil handles 220 watts. The 64mm coil high frequency diaphragm covers 3 – 18kHz with 113.3 dB sensitivity and handles 160 watts. A patented midrange integrator allows both diaphragms to work in harmony over a wide bandwidth, for greater combined output and crossover flexibility. All this energy arrives at a 1.4” throat, from the most compact package that can be designed today. Brand new materials and thousands of hours of modelling and testing result in lower distortion at higher SPL than has ever been possible before. Consider the new DCX464 for your next design, and enjoy a new standard in fidelity.

• Time coherent coaxial ring radiator design (Patents EP3644623B1, US11343608B2
• 1.4" horn throat diameter
• 300 - 18000 Hz response
• 113.3 dB sensitivity
• 220 W continuous program power capacity
• Neodymium magnet assembly

Nominal Impedance

• HF 16 Ω
• MF 16 Ω

Throat Diameter

• HF 36 mm (1.4 in)

Voice Coil Diameter

• HF 65 mm (2.5 in)
• MF 100 mm (4 in)

Continuous Power Handling

• HF 160 W
• MF 220 W

Specifications MF unit

• Throat Diameter 36 mm (1.4 in)

• Minimum Impedance 8.6 Ω

• Continuous Power Handling 220 W

• Frequency Range 0.3 kHz - 5.5 kHz

• Voice Coil Diameter 100 mm (4 in)

• Inductance 0.28 mH

• Diaphragm Material HT Polymer Ring
• Nominal Impedance 16 Ω

• Nominal Power Handling 110 W

• Sensitivity 112.7 dB

• Recommended Crossover 0.3 kHz

• Winding Material Aluminum

• Flux Density 1.9 T

Specifications HF unit

• Throat Diameter 36 mm (1.4 in)

• Minimum Impedance 12.2 Ω

• Continuous Power Handling 160 W

• Frequency Range 3.5 kHz - 18 kHz

• Voice Coil Diameter 65 mm (2.5 in)

• Inductance 0.14 mH

• Diaphragm Material HT Polymer Ring
• Nominal Impedance 16 Ω

• Nominal Power Handling80 W

• Sensitivity 113.3 dB

• Recommended Crossover 4 kHz

• Winding Material Aluminum

• Flux Density 2.14 T

Mounting and Shipping Info

• Overall Diameter 152 mm (5.98 in)

• Net Weight 3.64 kg (8.02 lb)

• Shipping Weight 3.84 kg (8.47 lb)
• Depth 78 mm (3.07 in)

• Shipping Units 1 pcs

• Shipping Box 170x170x140 mm (6.69x6.69x5.51 in)

UPC

• 8059300645093
