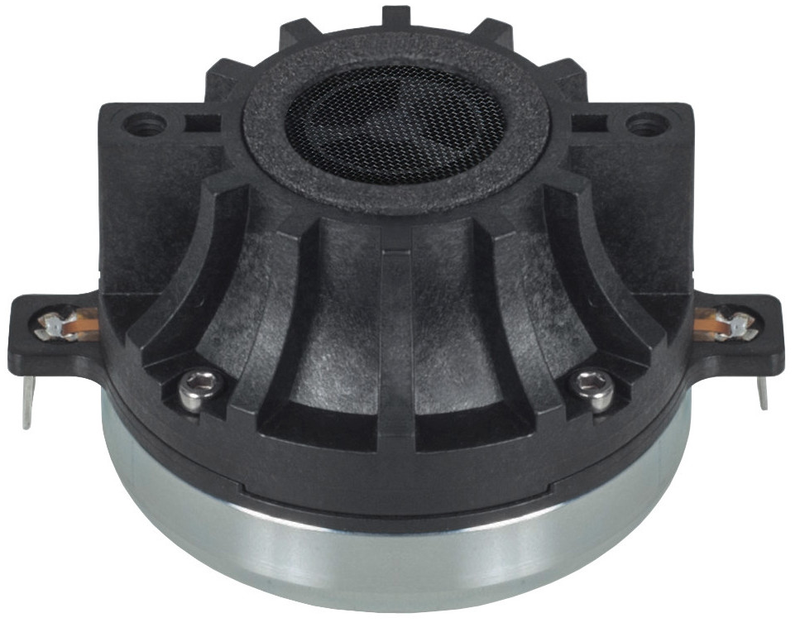

B&C DH450-8 1 Inch HF Driver For Professional PA Speakers With 40W Continuous Power
DH450
1 inch exit
HLX Series - The Helical Approach
B&C has a reputation for performance, by turning the limits of traditional compression driver design on their head. HLX™ : Compression driver efficiency in miniature. The HLX™ phase plug (US Patent #12149906) has a central channel that is twisted, like DNA, to gain the length required to match the outer channels. This technique works with standard, cost-effective injection mold tooling and plastics by rotating the inner die along a screw profile. The convex dome design, so achieved, has a number of significant cost and performance advantages.
- Minimized diameter, weight, and cost
- lncreased diaphragm area
- Low, ~1kHz Crossover point
- Reduced distortion, especially intermodulation distortion
- More efficient magnetic flux use
- Diaphragm Material: HT Polymer
- Voice Coil Diameter: 44 mm (1.7 in)
- Continuous Power Handling: 40 W
- Throat Diameter: 25 mm (1 in)
Features
- Very Compact 69 mm diameter
- 40 W continuous program power capacity
- 1" horn throat diameter
- 44 mm (1.7 in) aluminium voice coil
- HT Polymer diaphragm
- 1000 - 18000 Hz response
- 109 dB sensitivity
Specifications
- Throat Diameter: 25 mm (1 in)
- Minimum Impedance: 7.8 Ω
- Continuous Power Handling: 40 W
- Frequency Range: 1 kHz - 18 kHz
- Voice Coil Diameter: 44 mm (1.7 in)
- Inductance: 0.16 mH
- Diaphragm Material: HT Polymer
- Nominal Impedance: 8 Ω
- Nominal Power Handling: 20 W
- Sensitivity: 109 dB
- Recommended Crossover: 1 kHz
- Winding Material: Aluminium
- Flux Density: 1.9 T
Mounting and Shipping Info
Two M5 holes 180° on 57 mm (2.24 in) diameter.
Diameter is 90mm at widest point (driver rotated, across mounting studs).
- Overall Diameter: 69 mm (2.72 in)
- Net Weight: 0.53 kg (1.16 lb)
- Shipping Weight: 0.56 kg (1.23 lb)
- Depth: 48 mm (1.89 in)
- Shipping Units: 1 pcs
- Shipping Box: 105x105x65 mm (4.1x4.1x2.6 in)
UPC
- 8050593407023
