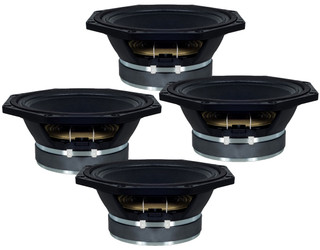

B&C 8PS21 WP 8" Replacement Woofer Speaker 400W 8-Ohm 2" Copper Voice coil
B&C's 8PS21 8'' woofer features a 2'' copper voice coil on a Kapton® former, die cast frame, ceramic ferrite magnet, and a 200 watts RMS power handling rating. A copper ring in the 8PS21's magnetic circuit reduces distortion and extends high frequency response up to 3 kHz. The 8PS21 is an ideal compact pro woofer choice when used singly or in multiples.
Specifications
-
Nominal diameter: 200 mm (8.0 in)
-
Nominal impedance: 8-Ohm
-
Minimum impedance: 7.0-Ohm
-
Nominal power handling: 200 W
-
Continuous power handling: 400 W
-
Sensitivity (1W/1m): 94.0 dB
-
Frequency range: 70 - 3000 Hz
-
Voice coil diameter: 50 mm (2.0 in)
-
Winding material: Copper
-
Former material: Kapton
-
Winding depth: 16 mm (0.62 in)
-
Magnetic gap depth: 8 mm (0.31 in)
-
Flux density: 1.1 T
Design
-
Surround shape: Double Roll
-
Cone shape: Exponential
-
Magnet material: Ferrite
-
Spider: Single
-
Pole design: T-Pole
-
Woofer cone treatment: None
-
Recommended enclosure: 14.0 dm3 (0.49 ft3)
-
Recommended tuning: 73 Hz
Parameters
-
Fs: 73 Hz
-
Re: 5.4
-
Qes: 0.36
-
Qms: 4.2
-
Qts: 0.33
-
Vas: 14.0 dm3 (0.49 ft3)
-
Sd: 220.0 cm2 (34.1 in2)
-
no: 1.5 %
-
Xmax: 5.0 mm
-
Xvar: 4.0 mm
-
Mms: 23 g
-
Bl: 12.6 Txm
-
Le: 0.5 mH
-
EBP: 202 Hz
Mounting Information
-
Overall diameter: 225 mm (8.8 in)
-
Bolt circle diameter: 210 mm (8.3 in)
-
Baffle cutout diameter: 187.0 mm (7.4 in)
-
Depth: 91 mm (3.6 in)
-
Flange and gasket thickness: 11 mm (0.4 in)
-
Air volume occupied by driver: 1.2 dm3 (0.04 ft3)
-
Net weight: 3.4 kg (7.5 lb)
-
Shipping weight:: 3.7 kg (8.1 lb)
-
Shipping box: 220x220x130 mm (8.7x8.7x5.1 in)
