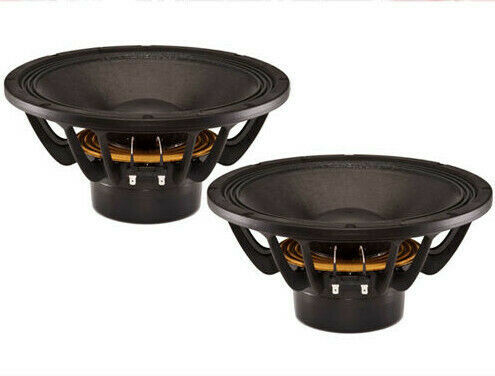

B&C 12NDL88 12" 1400W Neodymium Pro Audio Woofer 8-Ohm Mid-Bass Subwoofer (PAIR)

B&C 12NDL88 12" 1400W Neodymium Pro Audio Woofer 8-Ohm MidBass Speaker

• 1400 W Continuous Power Handling

• 3.5 in (88 mm) Voice Coil Diameter

• Neodymium Inside Slug Magnet Material

Key Features

• 1400 W continuous program power capacity

• 88 mm (3.5 in) aluminium voice coil

• 50 - 3000 Hz response

• 98 dB sensitivity

• Aluminium demodulating ring allows a very low distortion figure

• Double silicone spider with optimized compliance

• Ventilated voice coil gap for reduced power compression

Specifications

• Nominal Diameter 320 mm (12.0 in)

• Nominal Impedance 8 Ohm


• Minimum Impedance 6.0 Ohm


• Nominal Power Handling1 700 W

• Continuous Power Handling2 1400 W

• Sensitivity3 98.0 dB

• Frequency Range 50 - 3000 Hz

• Voice Coil Diameter 88 mm (3.5 in)

• Winding Material Aluminium

• Former Material Glass Fibre

• Winding Depth 21.0 mm (0.85 in)

• Magnetic Gap Depth 10.0 mm (0.4 in)

• Flux Density 1.15 T

  Parameters

• Resonance Frequency 51 Hz

• Re 5.0


• Qes 0.29

• Qms 5.0

• Qts 0.27

• Vas 52.0 dm3 (1.84 ft3)

• Sd 522.0 cm2 (80.9 in2)

• 2.3 %

• Xmax 8.0 mm

• Xvar 9.5 mm

• Mms 71.0 g

• Bl 19.9 Txm

• Le 1.3 mH

• EBP 175 Hz

Mounting And Shipping Info

• Overall Diameter 315 mm (12.4 in)

• Bolt Circle Diameter 298 mm (11.73 in)

• Baffle Cutout Diameter 282.0 mm (11.1 in)

• Depth 140 mm (5.51 in)

• Flange and Gasket Thickness 13 mm (0.51 in)

• Air Volume Occupied by Driver 2.5 dm3 (0.08 ft3)

• Net Weight 4.8 kg (10.58 lb)

• Shipping Units 1

• Shipping Weight 5.7 kg (12.57 lb)

• Shipping Box 360x360x200 mm (14.17x14.17x7.87 in)

Service Kit

• RCK12NDL888
