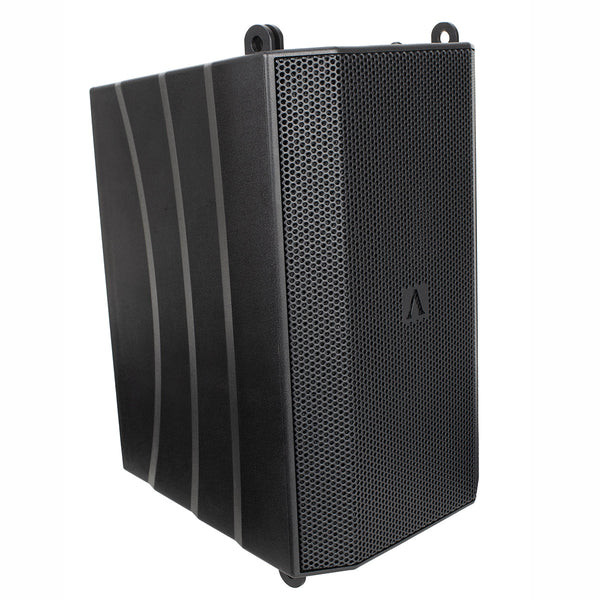

Avante Audio Imperio Pro IMP205 Active Compact Line Array System Speaker
440W RMS,Class D Power Amplifier with dual 5.0" Neodymium Low-Mid woofers and six HF drivers. Part of the Imperio Pro Series. Main power cord not included.
The Imperio Pro Series builds on the success of Avante Audio’s original Imperio Series. Designed for very fast deployment and versatility, the Imperio Pro IMP205 is a light-weight compact, high output active line array system fully equipped with neodymium components: Dual 5-inch Low-Mid transducers and Six 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology). Each array module of IMP205 is driven by 440W RMS (880W Peak) Class-D Power Amplifier with PFC Switching power supply.
Imperio Pro IMP205 features include: 32-bit DSP with advanced FIR digital filter technology. Controls include selectable DSP and input sensitivity. Rigging offers seven Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees. The Imperio Pro IMP205 cabinets can also be configured as a flown array with the sub on top or ground stacked on subs.
Specifications
AMPLIFIER:
- 440W RMS, 1700W Peak Class D Amplifier Module
- Switching Power Design
- LED Power / Signal / Clip Indicator
- 32-bit DSP with FIR digital filters
- Selectable System Configurations
- Input: 1x XLR and IP Locking Power Connector
- Output: 1x XLR and IP Locking Power Connector
- Gain: Selectable Input Sensitivity
- Power Input: 100-240V ~ 50/60Hz
- Power Linking:
- -SUB210 @ 120V: up to 2 units
- -IMP118 @ 120V: up to 2 units
- -IMP118 @ 208: up to 4 units
SPEAKER:
- 2x 5.0" Neodymium Low-Mid transducers.
- 6x 1.75" IDVAT HF Neodymium drivers (Inverted Dome Vertical Array Technology)
- Type: 2-Way Active Closed Design
- Frequency Response: 100Hz – 20KHz
- Max Output SPL: 128dB (single box measured on Axis @1m)
- Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
- Cabinet: ABS Plastic
- Grille: Powder coated Steel
- Splay Angles: 0, 2, 4, 6, 8,10, 12-degrees
- Integrated Rigging: Yes
- Horizontal Dispersion Angle: 100⁰
- Power Linking:
- -120V, low demand (e.g. talking heads): up to 8 units
- -120V, high demand(e.g. rock, EDM) up to 4 units
- -208V, low demand: up to 16 units
- -208V, high demand: up to 8 units
- Dimensions (LxWxH) 8.8” x 7.3” x 12.8” / 224mm x 185mm x 324mm
- Weight: 12.5 lbs. / 5.6 kg.
INCLUDED ITEMS:
- (1) IMP205 line-source speaker
- (1) IP Locking power link cable
- (1) Link-pin set
- (1) XLR link cable
- (1) User Manual
- Main power cord not included.
UPC
- 810087370602
