ADJ Pixie Strip 30 RGB LED Pixel Strip 30 LEDs 0.5m for Stage Event Lighting Pro

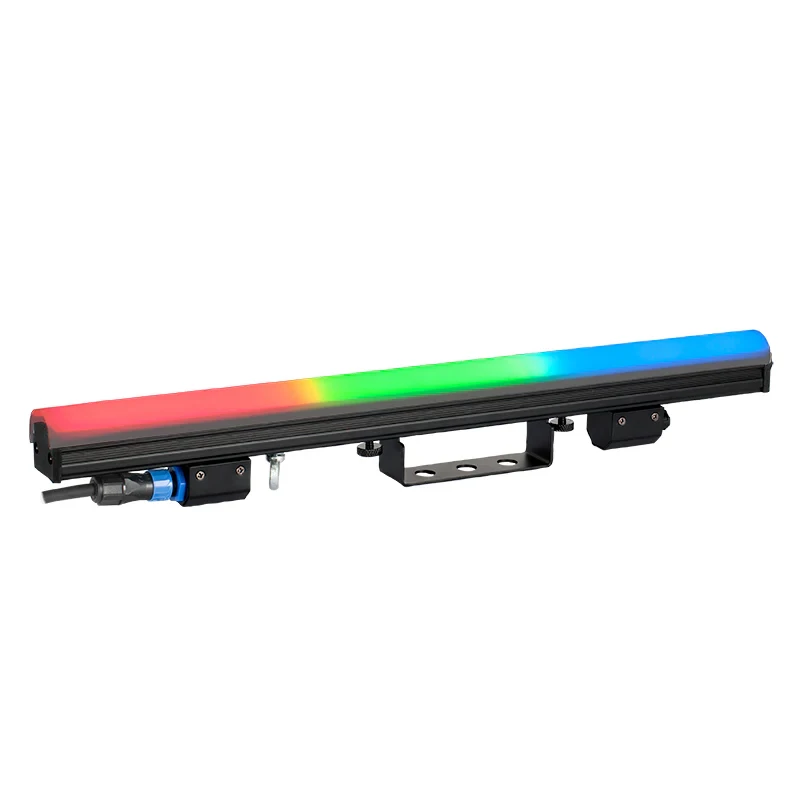

The PIXIE STRIP 30 is a 0.5 meter, indoor LED pixel strip featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch. ADJ’s Pixie Strip Series is a versatile collection of pixel battens combine vibrant LEDs with intelligently-designed housings to create a powerful and versatile system. They can be used to design dazzling pixel-mapped displays for touring shows and one-off events as well as for a wide variety of permanent installations.
Available now from ADJ USA The PIXIE STRIP 30 is an indoor LED pixel strip featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 0.5 meter (20-inches) in length. Each pixel strip is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes two square and two rounded frosted lens attachments.
Easy and versatile control options are handled by the Pixie Driver 2000 V3 or the Pixie Driver 8000 V2 (both sold separately).
The Pixie Driver 2000 V3 provides simple on-board manual dimming and strobe control, and full pixel mapping control of 2,040 max pixels via Kling-Net and 340 max pixels via Art-Net and sACN (streaming ACN) protocols.
The Pixie Driver 8000 V2 provides simple on-board manual dimming and strobe control, and full pixel mapping control of 8,160 max pixels via Kling-Net and 1,360 max pixels via Art-Net and sACN (streaming ACN) protocols.
Power and data are supplied via proprietary, 4-pin combo cables (sold separately) which are available in lengths from 1 to 50 feet.
Specifications
SOURCE
• SMD RGB 3-in-1 LED's
• Color Resolution: 8 bits per color (24 bit per pixel)
• Viewing Angle: 120 x 120 degrees
• Pixels Per Fixture: 30 pixels
• Pixel Pitch (pixel center-to-center) 16.5mm
• PWM (Pulse Width Modulation): 44,000Hz
CONNECTIONS
• 4-pin Power/Data In/Out
SIZE / WEIGHT
• Length: 20” (508mm)
• Width: 2.33” (59.3mm)
• Height: 2.33” (59.3mm)
• Weight: 1.31 lbs. (0.59 kg)
ELECTRICAL
• Max Power Consumption: 6W
INCLUDED ITEMS
• Round frosted cover (x1)
• Square froster cover (x1)
• Round smoked cover (x1)
• Square smoked cover (x1)
• 1.96' (0.6m) 4-pin power/data cable (x1)
UPC
- 818651027877
