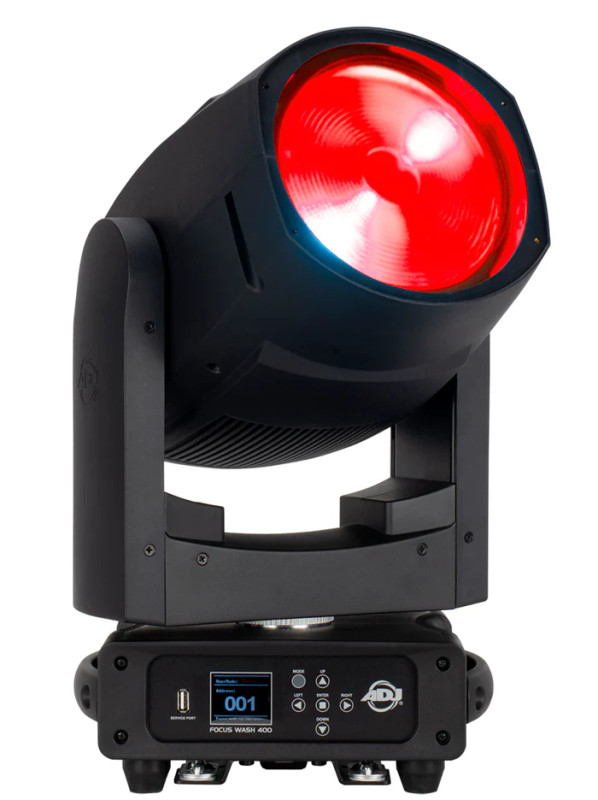

ADJ Focus Wash 400 RGBACL LED Moving Head Wash Light with Motorized Zoom
The FOCUS WASH 400 is a 400W, RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED moving head wash with a 10 to 41 degree motorized zoom, with flicker free operation for TV and film, linear white color temperature control from 2700K - 6500K, and virtual CMY color mixing.
The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBALC Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 9 to 43 degree motorized zoom produces an even field light output.
Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 6500K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.
The FOCUS WASH 400’s unique color engine produces a high CRI of 90+ for bright whites and a CRI R9 of 88 to help make red tones more vibrant. The fixture also includes, 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.
The fixture comes standard with locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.
Key features
- Color Temperature : 2700K ~ 10,000K
- Feature : Quiet Fan Mode
- LED Source : 400W RGBAC+L LED
- Motorized Zoom : 9° ~ 42°
- Color : Virtual CMY Color Mixing
Specifications
SOURCE:
- 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)
- 50,000 Hour Average LED Life
May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 7139 Total Stable Lumen Output (Full ON, Zoomed Out to Full)
- 11072 LUX, 1029 FC @ 9.8’ (3m) (Zoomed In / Full ON)
- 1858 LUX, 173 FC @ 9.8’ (3m) (Zoom Out / Full ON)
- Beam Angle: 9° to 43°
- Field Angle: 17° to 55°
- Color Temperature: Tunable, 2400K to 8500K
- CRI: 95.2
COLOR:
- Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control
- Virtual Color Wheel Control
- Virtual CMY Control
EFFECTS:
- RGBACL Color Mixing
- Virtual CMY Color Mixing
- 9° - 43° degree Motorized Zoom
- Electronic Strobe and Dimmer
- Color Temperature Red to Green control via DMX
- Linear Color Temperature control, 2700K to 10,000K
- Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
CONTROL / CONNECTIONS:
- 5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]
- Selectable LED Refresh Rates, 900Hz to 25kHz.
- Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds
- 6-button Control Panel and LCD Menu Display
- USB Firmware Update Port
- RDM (Remote Device Management)
- Quiet Fan Mode
- Locking 3-pin and 5-pin XLR Connector In/Out
- IP65 Locking Power Connector In/Out
- With Wired Digital Communication Network
SIZE / WEIGHT:
- Length: 10.96" (278.43mm)
- Width: 8.4" (213.33mm)
- Vertical Height: (Without Snoot)19.6" (498.1mm)
- Vertical Height (With Snoot) 22.37" (568.1mm)
- Weight: 23.5 lbs. (10.7 kg)
ELECTRICAL / THERMAL:
- Multi-voltage: AC 100-240V / 47/63Hz
- 460W Power Consumption @ 120V
- 430W Power Consumption @ 240V
- Multiple Unit Power Linking
- 5°F to 113°F (-15°C to 45°C)
INCLUDED ACCESSORIES:
- Snoot
- 1x40 Degree Linear Lens
- 2 Omega Brackets
- Safety Cable
- IP65 Locking Power Cable
UPC
- 818651029130
