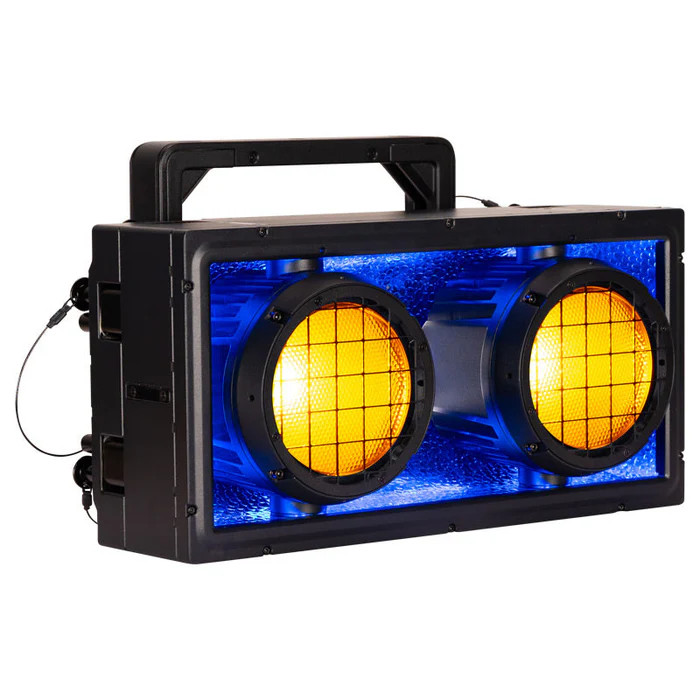

ADJ Encore DBX IP65 RGBAW LED Blinder Strobe with RGB Effects for Events
Encore DBX is a dynamic effect fixture featuring a 5-color LED dual-lens blinder/strobe and RGB background LEDs for stunning visual effects. Powered by two 150W RGBAW LEDs, it offers flexible control, variable white color temperatures, and rugged IP65-rated durability.
Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.
With features like individually controllable cells, built-in programs, and variable white color temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Bluetooth, and the Aria X2 wireless management system for over the air firmware/software updates, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.
Key features
- Color Temperature : 2700K ~ 10,000K
- Outdoor Rating : IP65
- LED Source : 2x 150W RGBAW LEDs
- Output : 11,450+ LUMENS
- Wireless DMX : Aria X2
Specifications
Features:
- 2 Cell, Five Color (RGBAW) LED Blinder
- Background RGB LEDs
- Individually Controllable Cells
- Built-In Cell Programs
- Built-In Background LED Programs
- Tungsten Control Mode
- Variable White Color Temperature Control (2,700K ~ 6,500K)
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (1 ~ 20Hz)
- Electronic Dimming
- Aria X2 Wireless Management System
Source:
- 2x 150W RGBAW LED's
- RGB Background LED's
- 50,000 Hour Average LED Life
May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometrics:
- Total Lumen Output: 11,465
- CRI: 89
Optical:
- Beam Angle: TBA
- Field Angle: TBA
Effects:
- Variable Strobe Rate: 900Hz - 25JHz
- Variable 16-bit Dimming Modes and Curves
- RGB Background Reflector Effect
Color:
- RGBAW Color Array
- RGB Background
- Variable CCT 2700K - 6500K + five presets
Physical:
- IP65 Housing
- OLED Digital display
- Adjustable Mounting Yoke with Omega Receivers
- Second Set of Omega Receivers on Rear
Control:
- DMX512
- Aria X2 Wireless Management / DMX System
- Bluetooth
- RDM (Remote Device Management)
- (26) DMX Channel Modes (1CH/ 2CH-A / 2CH-B / 4 CH / 5CH / 8CH / 10CH / 11CH / 12CH-A / 12CH-B / 16CH / 18CH-A / 18CH-B / 19CH / 21CH / 22CH / 24CH / 25CH / 29CH / 31CH / 34CH / 35CH / 40CH / 41CH (modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
Dimensions & Weight:
- Length: 9.1” (231mm) Width: 16.5” (420mm) Height: 10.3” (261mm)
- Weight: 25.4 lbs. (11.5 kg)
Power:
- AC100-240V/50Hz-60Hz Input
- 347W Power Consumption
- Link 2 pieces @120VAC or 6 pieces @ 230VAC
Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Included Accessories:
- (1) Outdoor Locking Power Cable
- (1) Safety Cable
UPC
- 810087374051
