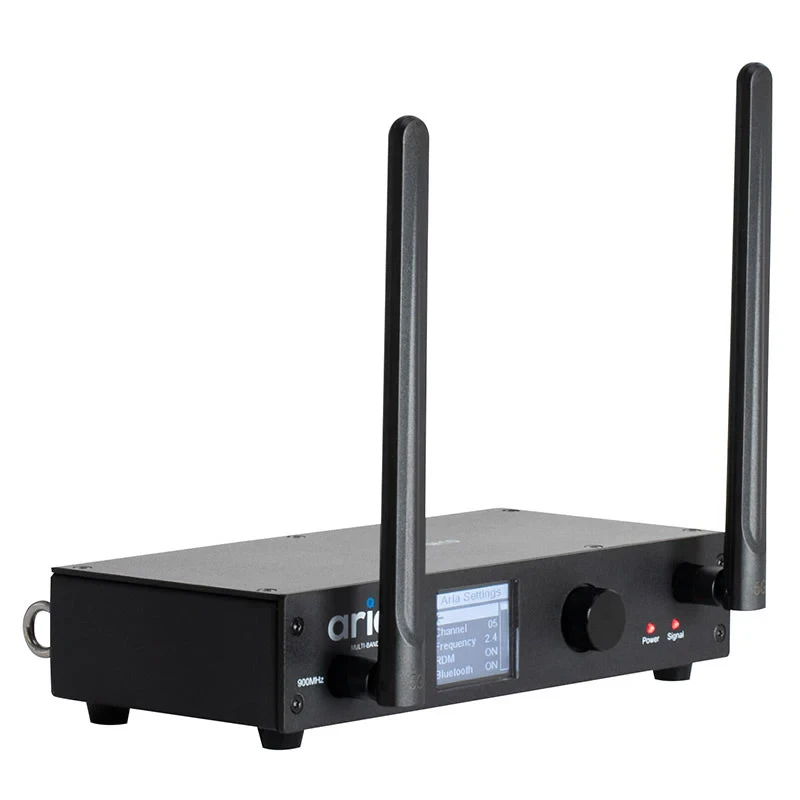

ADJ Aria X2 Wireless DMX Transceiver Single Universe Bluetooth Control Pro
The single universe, indoor Aria X2 Transcevier, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop.
EMPOWER YOUR LIGHTING EXPERIENCE TO A NEW DIMENSION
Introducing the Aria Wireless Management System for Advanced Lighting Control at the Shop or in the Show.
Frequency Agility:
Aria modules boast the capability to transmit and receive signals on standard 802.15.4 channels, both in the 2.4GHz and 915MHz (U.S) or 2.4GHz, 868MHz or 863MHz (Europe) spectrums. This agility guarantees top-notch network performance even in crowded environments. Units can seamlessly switch between spectrums, ensuring network reliability.
Bluetooth Low Energy (BLE) Configuration:
Aria simplifies device setup with BLE, enabling you to configure settings directly from the fixture menu. BLE also offers auxiliary functions such as individual DMX channel adjustments, opening doors to creative control possibilities.
OTA Updates:
Keep your Aria system up-to-date with Over-The-Air (OTA) updates for Aria firmware, fixture firmware, and fixture menus. A cloud repository stores these updates, and the service app efficiently retrieves them, with future multi-hop DMX support enabling mesh network updates.
Wireless Mesh Excellence:
Aria’s robust foundation lies in its Wireless Mesh technology, featuring a versatile multi-hop DMX protocol. It adapts to various settings and use cases, with early configurations requiring minimal user intervention for optimal performance. Future releases will simplify network configuration through internal metrics, ensuring low latency and reduced collisions (available: TBA).
Frequency Hopping:
Aria modules will implement a frequency hopping scheme, enhancing network reliability and reducing user configuration requirements. This innovation optimizes spectrum utilization, providing a seamless and efficient lighting experience (available: TBA).
Specifications
Features:
- Single DMX Universe
- Sub-GHz, 2.4 GHz and Bluetooth
- Configuration via Aria X2 BLE app or front panel
- Wireless to DMX or DMX to Wireless
Supported Protocols:
- DMX
- RDM (Planned for future software release)
- Proprietary 802.15.4
- Aria X2 Mesh Protocol (Planned for future software release)
- Bluetooth 4.2 (BLE)
- Aria X2 Serial Protocol
- This is our proprietary serial protocol for communicating with a variety of fixtures.
RF Characteristics:
- Frequency range
- Bluetooth: 2402-2480 MHz
- Zigbee: 2405-2480 MHz (EU)
- Sub-GHz: 906-924 MHz (US)
- Radio module: Aria X2
- Interference mitigation
- CSMA
- Adaptive frequency hopping (on the roadmap)
- OTA updates
Standards:
Health
- EN IEC 62311:2020
- EN50665:2017
- BS EN IEC 62311:2020
- BS EN 50665:2017
Safety
- EN IEC 62368-1: 2020+A11:2020
- BS EN IEC 62368-1: 2020+A11:2020
EMC
- ETSI EN 301 489-1 V2.2.3 (2019-11)
- ETSI EN 301 489-3 V2.3.2 (2023-01)
- ETSI EN 301 489-17 V3.2.4 (2020-09)
- EN 55032:2015/A1:2020
- EN 55035:2017/A11:2020
- EN 61000-3-3:2013/A2:2021
- EN IEC 61000-3-2:2019/A1:2021
- BS EN 55032:2015/A1:2020
- BS EN 55035:2017/A11:2020
- BS EN 61000-3-3:2013/A2:2021
- BS EN IEC 61000-3-2:2019/A1:2021
Radio
- EN 300 220-1 V 3.1.1 (2017-02)
- EN 300 220-2 V 3.2.1 (2018-06)
- ETSI EN 300 328 V2.2.2 (2019-07)
Connectors:
- Antenna: 5G JT SMA
- DMX: 5-pin XLR Input and Output
- DC: 2.5mm/5.5mm Barrel connector
- IP65 Locking Power Input and Output
Power:
- AC100-240V 50/60Hz
- Power Consumption: 2W
- Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
- IP20 Aluminum / Metal enclosure
- Front panel digital screen and rotary knob
- M10 and M12 Threads
- Safety Eyelet
- Max ambient operating temp: 113°F (45°C)
- Max operating humidity: <75%
- Storage temperature: 77°F (25°C)
- Rack and wall mount accessories
Dimensions and Weight:
- Length: 6.46" (163.95mm)
- Width: 8.48" (215.30mm)
- Height: 1.66" (42mm)
- 2.7lbs (1.23kgs.)
UPC
- 840063548060
