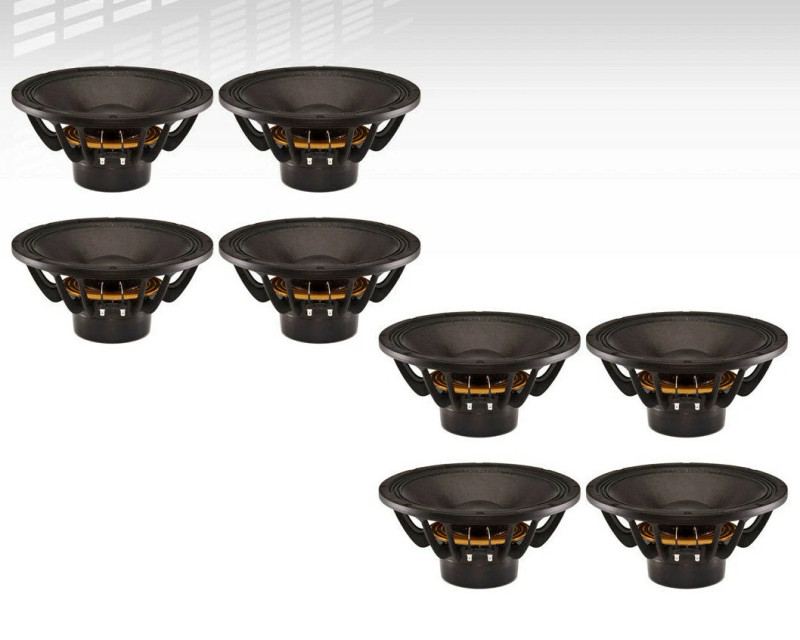

(8) B&C 12NDL88 12" 1400W Neodymium Pro Audio Woofer 8-Ohm MidBass Speaker Subwoofer ( EIGHT )

• 1400 W Continuous Power Handling

• 3.5 in (88 mm) Voice Coil Diameter

• Neodymium Inside Slug Magnet Material

Key Features

• 1400 W continuous program power capacity
• 88 mm (3.5 in) aluminium voice coil
• 50 - 3000 Hz response
• 98 dB sensitivity
• Aluminium demodulating ring allows a very low distortion figure
• Double silicone spider with optimized compliance
• Ventilated voice coil gap for reduced power compression

Specifications

• Nominal Diameter320 mm (12.0 in)
• Nominal Impedance8 Ohm

• Minimum Impedance6.0 Ohm

• Nominal Power Handling1700 W
• Continuous Power Handling21400 W
• Sensitivity398.0 dB
• Frequency Range50 - 3000 Hz
• Voice Coil Diameter88 mm (3.5 in)
• Winding MaterialAluminium
• Former MaterialGlass Fibre
• Winding Depth21.0 mm (0.85 in)
• Magnetic Gap Depth10.0 mm (0.4 in)
• Flux Density1.15 T

  Parameters4

• Resonance Frequency51 Hz
• Re5.0

• Qes0.29
• Qms5.0
• Qts0.27
• Vas52.0 dm3 (1.84 ft3)
• Sd522.0 cm2 (80.9 in2)
• η02.3 %
• Xmax8.0 mm
• Xvar9.5 mm
• Mms71.0 g
• Bl19.9 Txm
• Le1.3 mH
• EBP175 Hz

Mounting And Shipping Info

• Overall Diameter315 mm (12.4 in)
• Bolt Circle Diameter298 mm (11.73 in)
• Baffle Cutout Diameter282.0 mm (11.1 in)
• Depth140 mm (5.51 in)
• Flange and Gasket Thickness13 mm (0.51 in)
• Air Volume Occupied by Driver2.5 dm3 (0.08 ft3)
• Net Weight4.8 kg (10.58 lb)
• Shipping Units1
• Shipping Weight5.7 kg (12.57 lb)
• Shipping Box360x360x200 mm (14.17x14.17x7.87 in)

Service Kit

• RCK12NDL888
