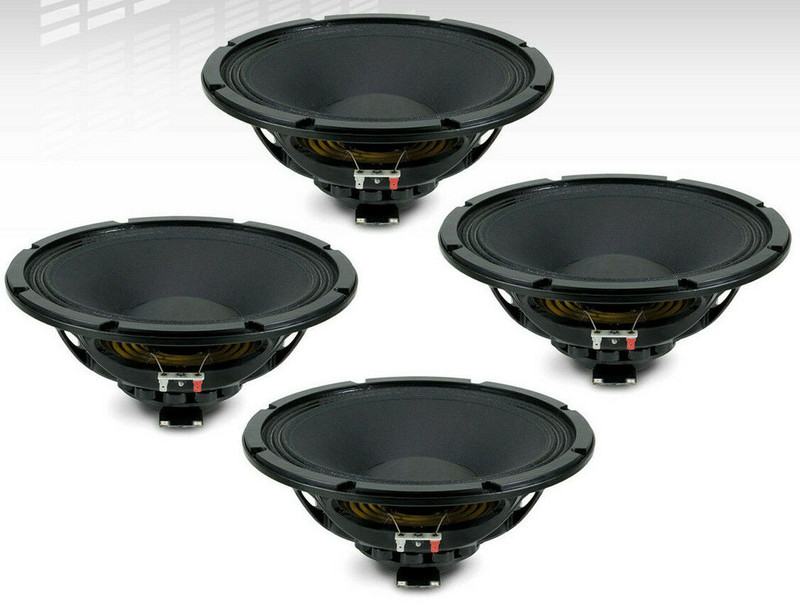

4x 18 Sound 12NDA520 12" Neodymium Mid-Bass Speaker 450W 8-Ohm Mid-Low Transducer

4x 18 Sound 12NDA520 12" Neodymium Mid-Bass Speaker 450W 8-Ohm Mid-Low Transducer

18 Sound

Write a Review
SKU:
4x 18 Sound 12NDA520 T.C.
Condition:
New
UPC:
Does not apply
Avaliability:
Free Shipping
Order before 2PM (EST) Mon-Fri for Same Day Shipping
Store Pick Up Available We Price Match! Call Us On 718-272-7228
Now: $1,236.00
Adding to cart… The item has been added
Make an Offer
Award-Winning Service
Free Shipping Orders $49+
30 Days
Easy Returns
Guaranteed
Lowest Price
In-House
Experts

Financing Available

18 Sound 12NDA520 is a 12" Mid-Low Transducer 450 Watts 8-Ohm

Key Features

  • 100,5 dB SPL 1W / 1m average sensitivity

  • 65 mm (2,52 in) Interleaved Sandwich Voice coil (ISV)

  • 300W AES power handling

  • Neodymium magnet assembly

  • AIC (Active Impedance Control) secondary voice coil for superior intelligibility, very low distortion and inductance linearization

  • Suitable for two way high quality applications

Description

  • The 12NDA520 is a 12" mid-low transducer created for compact reflex 2-way enclosures and designed to be coupled with typical 1" and 1.4" compression drivers. It can also be used in mid-low applications on modern line-array systems. Its features and design characteristics make it extremely defined in mid-range frequencies and offer a significant and consistent bottom-end, making the product also suitable for monitoring applications.
  • The 12NDA520 incorporates our proprietary Active Impedance Control technology (AIC), consisting of an additional coil fixed on the pole piece and connected in parallel to the moving coil. The magnetic field generated by this coil has the following effects: 1) Impedance linearization 2) Acoustic and electric phase linearization 3) Significant increase of sensitivity and total SPL 4) Total harmonic distortion reduction 5) Constant power transfer By not absorbing the moving coil's electromagnetic energy, AIC offers substantial advantages relating to the quality of sound.
  • The neodymium magnet assembly developed by Eighteen Sound engineers assures high flux concentration, low power compression and excellent heat exchange since the external magnet configuration is considerably more efficient than traditional under-pole magnet topology. This results in high levels of force factor and power handling with an optimum power to weight ratio. The curvilinear cone, created from a high damping wood pulp, has been designed to achieve the best possible linearity within its intended frequency range.
  • The 12NDA520 employs our Interleaved Sandwich Voice coil (ISV) technology in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. The final result is an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. A proprietary humidity-block cone treatment makes the transducer suitable for outdoor use in adverse weather conditions. In addition, a special coating applied to both the top and back plates makes the 12NDA520 far more resistant to the corrosive effects of salts and oxidization

General Specifications

Nominal Diameter
  • 300mm (12 in)
Rated Impedance
  • 8 Ohm
AES Power
  • 300W
Program Power
  • 450W
Peak Power
  • 900W
Sensitivity
  • 100,5dB
Frequency Range
  • 55 - 6000 Hz
Power Compression @-10dB
  • 0,7 dB
Power Compression @-3dB
  • 2,5 dB
Power Compression @Full Power
  • 3,9 dB
Max Recomm. Frequency
  • 2000 Hz
Recomm. Enclosure Volume
  • 35 ÷ 80 lt. (12 ÷ 28 cuft)
Minimum Impedance
  • 6,5 Ohm at 25°C
Max Peak To Peak Excursion
  • 22 mm (0,87 in)
Voice Coil Diameter
  • 65 mm (2,5 in)
Voice Coil Winding Material
  • aluminum
Suspension
  • Triple roll, polycotton
Cone
  • curvilinear, paper

Thiele Small Parameters

Fs
  • 50 Hz
Re
  • 5,2 Ohm
Sd
  • 0,0531 sq.mt. (82,31 sq.in.)
Qms
  • 5,5
Qes
  • 0,284
Qts
  • 0,27
Vas
  • 111 lt. (3,9 cuft)
Mms
  • 36 gr. (0,08 lb)
BL
  • 14,4 Tm
Linear Mathematical Xmax
  • ± 4 mm (±0,16 in)
Le (1kHz)
  • 0,03 mH (AIC on) - 0,57mH (AIC off)
Ref. Efficiency 1W@1m (half space)
  • 98,9 dB

Mounting information

Overall diameter
  • 315 mm (12,4 in)
N. of mounting holes and bolt
  • 8
Mounting holes diameter
  • 7,15 mm (0,28 in)
Bolt circle diameter
  • 296-300 mm (11,65-11,8 in)
Front mount baffle cutout ø
  • 282 mm (11,1 in)
Rear mount baffle cutout ø
  • 282 mm (11,1 in)
Total depth
  • 125 mm (4,92 in)
Flange and gasket thickness
  • 11,5 mm (0,45 in)
Net weight
  • 2,2 kg (4,86 lb)
Shipping weight
  • 3 kg (6,62 lb)
CardBoard Packaging dimensions
  • 332 x 332 x 184mm (13,07 x 13,07 x 7,24 in)
