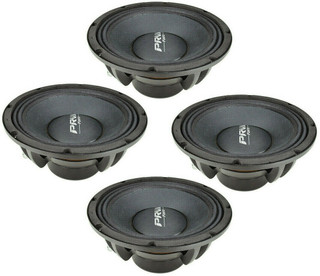

PRV Audio 8MB700FT-NDY 8" MID BASS NEODYMIUM LOUDSPEAKER
PRV Audio's 8MB700FT-NDY Forte Series was specially tailored to give you more power handling and less distortion. The larger voice coil ensures high heat dissipation and the necessary Bl to deliver high sensitivity even on high power with the minimum distortion.
The lower Qts allows more precise mid bass. Superior fidelity is achieved through a perfect combination of a non-pressed cone with a smooth frequency response and a surround ring specially designed to allow high displacement without increasing the distortion.
Highlights
-
Nominal Impedance: 8 Ohms
-
Rated AES Power Handling (RMS): 350 Watts
-
Program Power: 700 Watts
-
Sensitivity (1W/1m): 98 dB
-
Voice Coil Diameter: 2.5" (51 mm)
To get superior fidelity, the special composite cone is built with non-pressed paper for reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.
The 8MB700FT-NDY is an extremely efficient 8? mid bass from PRV Audio. This driver is perfect for mating to compression drivers due to its wide frequency bandwidth and its high 98 dB sensitivity rating, on 3 way system (with a suggested 95 Hz, 12 dB/octave high pass filter in place)!
Its powerful optimized neodymium motor is vented to provide excellent cooling.
The large 2.5" voice coil allows for the high 350-watts power handling, and warrants the outstanding cooling system implemented into the motor.
High sensitivity rating of 98 dB 1W/1M which makes it capable of generating a lot of output!
GENERAL SPECIFICATIONS
-
Nominal Diameter 8" (203 mm)
-
Nominal impedance 8 Ohms
-
Rated AES Power Handling (RMS) 350 Watts
-
Program Power 700 Watts
-
Sensitivity 2.83V at 1m98 dB
-
Recommended Hi Pass Crossover**
-
**For Full Power Handling 95 Hz**
-
**12db Per Octave Crossover
-
Frequency Response at -10dB70 - 5,600 Hz
-
Voice Coil Diameter 2.5" (51 mm)
-
Voice Coil Wire CCAW
-
Voice Coil Winding Depth 11.3 mm
-
Former Material Fiber Glass
-
Magnetic Gap Depth 8.00 mm
-
Frame Material Die Cast Aluminum
THIELE-SMALL PARAMETERS
-
Equivalent Volume Vas18.79 l
-
Excursion (mathematical)*** Xmax3.65 mm
-
Free Air Resonance Fs69.97 Hz
-
Mechanical Factor Qms2.78
-
Electrical Factor Qes0.33
-
Total Factor Qts0.30
-
Cone Area Sd249 cm²
-
Mechanical Mass Mms23.79 g
-
Bl Factor Bl12.78 Tm
-
Dc Resistance Re5.2 Ohms
-
Inductance Le0.34 mH at 1 kHz
-
Mechanical Mass Without Air Mmd21.57 g
-
Mechanical Compliance Cms0.217 mm/N
-
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO
-
Overall Diameter 8.20" (208.5 mm)
-
Front Mount Baffle Cutout 7.30" (185.5 mm)
-
Mounting Depth 3.66" (93 mm)
-
Overall Depth 4.00" (101.5 mm)
-
Net Weight 4.32 Lbs (1.96 kg)
-
Shipping Weight 5.51 Lbs (2.50 kg)
-
Carton Dimensions W x L x H 9.05" x 9.05" x 5.11" (230 x 230 x 130 mm)
